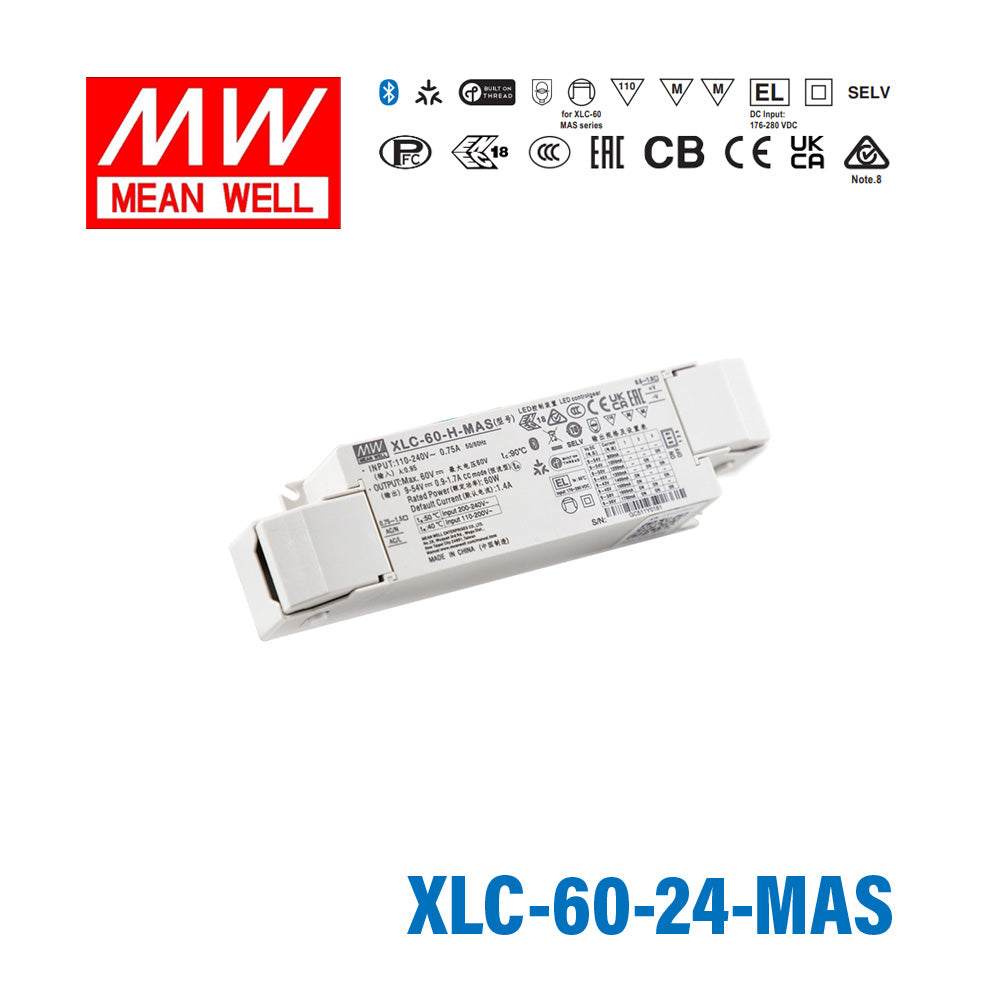

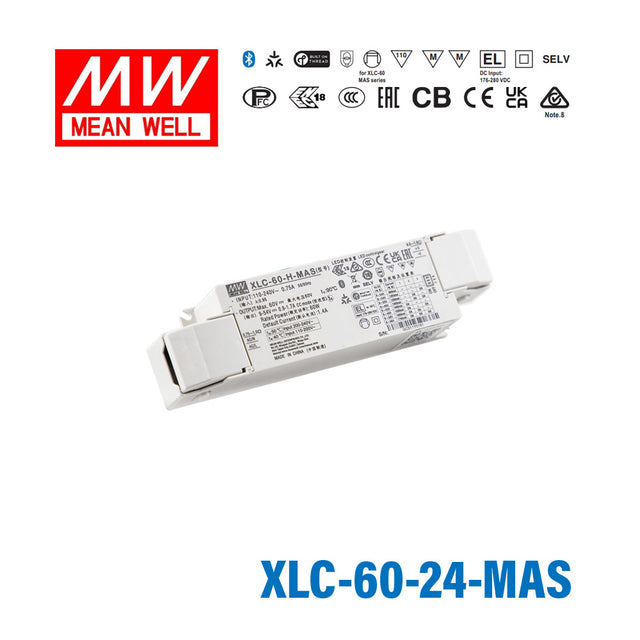

Mean Well XLC-60-24-MAS LED Driver 60W 24V Constant Voltage LED Driver, Matter Wireless Dimming with Strain Relief 2.5A

minimum dimming level 0.1%Matter 1.3 specificationclass II and PFC

SKU XLC-60-24-MAS

Log in to see price Trade pricing & online ordering for account holders

In stock

Overview

XLC-60-24-MAS is the 24V output model of this series: rated power 60W, typical efficiency 87%.

XLC-60-MA series is a 60W with constant power and constant voltage output LED driver . It can operate from 100~305V AC and output current ranging between 900 mA to 1700 mA selectable by DIP switch. Thanks to high efficiency up to 90%, it is able to operate for -25℃ ~90℃ case temperature under free air convection. XLC-60-MA series is designed based on latest safety regulations with matter wireless dimming .It provides more flexibility for LED Lighting application.

Features

Constant power mode output with multiple stage selectable by DIP switch (H-type)
Constant voltage mode output(12/24/48V)
Plastic housing with class Ⅱ and PFC design
Flicker free, complying with CE ErP directive
Standby power consumption <0.5W
Meet emergency lighting (EL) application
Minimum dimming level 0.1% (12/24/48V)
Minimum dimming level 0.5% (H-type)
Matter over thread, Matter 1.3 specification
5 years warranty

Specifications

XLC-60-24-MASSpecifications from the official datasheet (2025-03-11 edition)

OUTPUT

DC VOLTAGE: 24V
DEFAULT CURRENT: 2.5A
RATED POWER^{Note.2 (12/24/48V), Note.4 (H)}: 60W
SETUP, RISE TIME^{Note.3 (12/24/48V), Note.6 (H)}: 2500ms,180ms/230VAC ,2500ms,180ms/115VAC

INPUT

VOLTAGE RANGE: 100~305VAC 155~400VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR: PF≥0.95/115VAC, PF≥0.95/230VAC, PF≥0.9/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load ≥60%/230VAC; @load ≥75%/277VAC); THD<10%@load 100%/230VAC (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY(Typ.)^{Note.7 (H)}: 87%
AC CURRENT: 0.75A/115VAC, 0.35A/230VAC, 0.3A/277VAC
INRUSH CURRENT: COLD START 15A(twidth=310μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. NO. of PSUs on 16A CIRCUIT BREAKER: 25 units (circuit breaker of type B) / 36 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC
STANDBY POWER CONSUMPTION^{Note.4 (12/24/48V), Note.9 (H)}: Standby power consumption<0.5W (Dimming off)

PROTECTION

OVERLOAD: 105~200% rated output power; Protection type: Hiccup mode, recovers automatically after fault condition is removed.
SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 26~35V; Shut down output voltage, re-power on to recover
OVER TEMPERATURE: Shut down output voltage, recovers automatically after fault condition is removed

ENVIRONMENT

WORKING TEMP.: Tcase=-25~90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=90℃
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13(EL) appendix J suitable for emergency installations (DC input 176-280VDC); BS EN/EN62384 , GB/T 19510.1, GB/T 19510.213, EAC TP TC 004 approved; Design refer to AS/NZS 61347-1, AS/NZS 61347-2-13
WITHSTAND VOLTAGE: I/P-O/P: 3.75KVAC
ISOLATION RESISTANCE: I/P-O/P: >100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55015(CISPR15) ,GB/T 17743
Radiated BS EN/EN55015(CISPR15) ,GB/T 17743
Harmonic Current BS EN/EN61000-3-2 , GB17625.1 Class C @load≥60%
Voltage Flicker BS EN/EN61000-3-3
EMC IMMUNITY: BS EN/EN61547

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
Radiated BS EN/EN61000-4-3 Level 2
EFT/Burst BS EN/EN61000-4-4 Level 2
Surge BS EN/EN61000-4-5 Level 3, 1KV/Line-Line
Conducted BS EN/EN61000-4-6 Level 2
Magnetic Field BS EN/EN61000-4-8 Level 2
Voltage Dips and Interruptions BS EN/EN61000-4-11 70% residual voltage for 10 period, 0% residual voltage for 0.5 periods

Parameter	Standard	Test Level
Conducted	BS EN/EN55015(CISPR15) ,GB/T 17743
Radiated	BS EN/EN55015(CISPR15) ,GB/T 17743
Harmonic Current	BS EN/EN61000-3-2 , GB17625.1	Class C @load≥60%
Voltage Flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact
Radiated	BS EN/EN61000-4-3	Level 2
EFT/Burst	BS EN/EN61000-4-4	Level 2
Surge	BS EN/EN61000-4-5	Level 3, 1KV/Line-Line
Conducted	BS EN/EN61000-4-6	Level 2
Magnetic Field	BS EN/EN61000-4-8	Level 2
Voltage Dips and Interruptions	BS EN/EN61000-4-11	70% residual voltage for 10 period, 0% residual voltage for 0.5 periods

OTHERS

MATTER STANDARD: Matter 1.3 Specification
FLICKER^{Note.7 (12/24/48V), Note.10 (H)}: PstLM ≤ 1, SVM ≤ 0.4
MTBF: 4130.5K hrs min. Telcordia SR-332 (Bellcore) 317.7Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 176*45*32mm , 136*45*32mm (L*W*H)
PACKING: 0.28Kg; 40pcs/12Kg/0.48CUFT(for Blank type); 0.30Kg; 40pcs/13Kg/0.63CUFT(for S-type);

Test conditions and notes14

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Output hiccups under no-load condition.
3. Please refer to “DRIVER METHODS OF LED MODULE”.
4. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
5. Current ripple is measured 50%~100% of maximum voltage under rated power delivery.
6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
7. Efficiency is measured at 1050mA/54V output set by DIP switch.
8. For XLC-S series: RCM is on a voluntary basis. Non IC classification Independent LED control gear is not suitable for residential installations. For XLC(except -S) series: RCM is on a voluntary basis and meets relevant IEC or AS/NZS standards complying with AS/NZS 4417.1.
9. Standby power consumption is measured at 230VAC.
10. Flicker is measured at full load with the light source provided by MEAN WELL.
11. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
12. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
13. This series meets the typical life expectancy of 50000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about75℃ or less.
14. For more information, please contact with MEAN WELL sales.

Technical drawings

XLC-60-24-MAS BLOCK DIAGRAM — BLOCK DIAGRAM

XLC-60-24-MAS DRIVING METHODS OF LED MODULE — DRIVING METHODS OF LED MODULE

XLC-60-24-MAS PWM OUTPUT DIMMING PRINCIPLE — PWM OUTPUT DIMMING PRINCIPLE

XLC-60-24-MAS OUTPUT LOAD vs TEMPERATURE — OUTPUT LOAD vs TEMPERATURE

XLC-60-24-MAS STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

XLC-60-24-MAS TOTAL HARMONIC DISTORTION (THD) — TOTAL HARMONIC DISTORTION (THD)

XLC-60-24-MAS POWER FACTOR (PF) CHARACTERISTIC — POWER FACTOR (PF) CHARACTERISTIC

XLC-60-24-MAS EFFICIENCY vs LOAD — EFFICIENCY vs LOAD

XLC-60-24-MAS MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

XLC-60-24-MAS ※ By RESET BUTTON — ※ By RESET BUTTON

XLC-60-24-MAS Antenna location — Antenna location

Typical applications

Downloads

Datasheet1

XLC-60-24-MAS datasheetXLC_60_MA_MAS_spec_sheet.pdf · 2025-03-11 edition PDF Download

FAQ

Can the XLC-60-24-MAS power 24V LED strips with full smart home dimming capability?

Yes. The XLC-60-24-MAS provides 60W at 24V constant voltage with Matter 1.3 wireless dimming. The 0.1% minimum dimming level delivers a broad, smooth range suitable for residential and commercial scenes.

Is the XLC-60-24-MAS suitable for 24V LED cove or wall-wash lighting in a hotel or restaurant?

Yes. The driver's constant voltage 24V output, wide operating temperature range (-25°C to +90°C), and matter-based wireless dimming make it a practical choice for hospitality lighting where scene control and light quality are priorities. Confirm total strip load remains within 60W.

Can the XLC-60-24-MAS be used in a smart retail display using 24V LED strips?

Yes. The 60W/24V output supports standard commercial 24V LED strip loads, and Matter 1.3 integration allows centralized dimming control without proprietary systems. Its strain-relief connector provides a secure cable termination suited for fixed retail fixtures.

How many meters of 24V LED strip can the XLC-60-24-MAS drive?

The maximum output is 60W at 24V and 2.5A. A 24V strip rated at 10W/m allows up to 6 meters; one rated at 14.4W/m allows approximately 4.1 meters. Always verify the strip's rated power per meter and keep total load at or below 60W.

What is the difference between the XLC-60-24-MA and XLC-60-24-MAS?

Both share the same 60W, 24V, 2.5A output, Matter 1.3 wireless dimming, and 0.1% minimum dim level. The XLC-60-24-MAS adds a built-in strain-relief connector and is physically larger (176 × 45 × 32 mm vs. 136 × 45 × 32 mm) and heavier (0.30 kg vs. 0.28 kg).

Is the XLC-60-24-MAS safe for installation in damp or outdoor environments?

No. The XLC-60-24-MAS does not have an IP ingress protection rating and is intended for dry, enclosed indoor locations only. It must be kept away from moisture, condensation, and rain. For outdoor or wet-rated installations, a driver with IP65 or higher protection is required.
