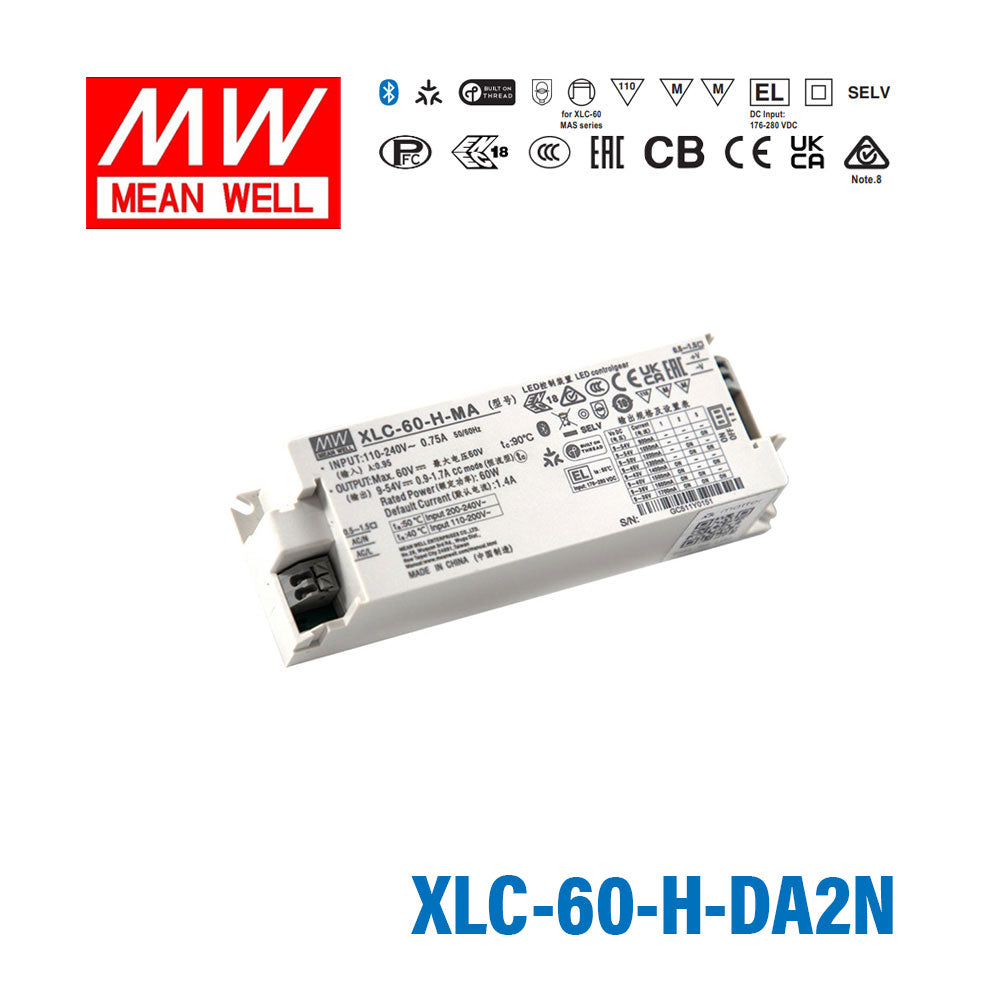

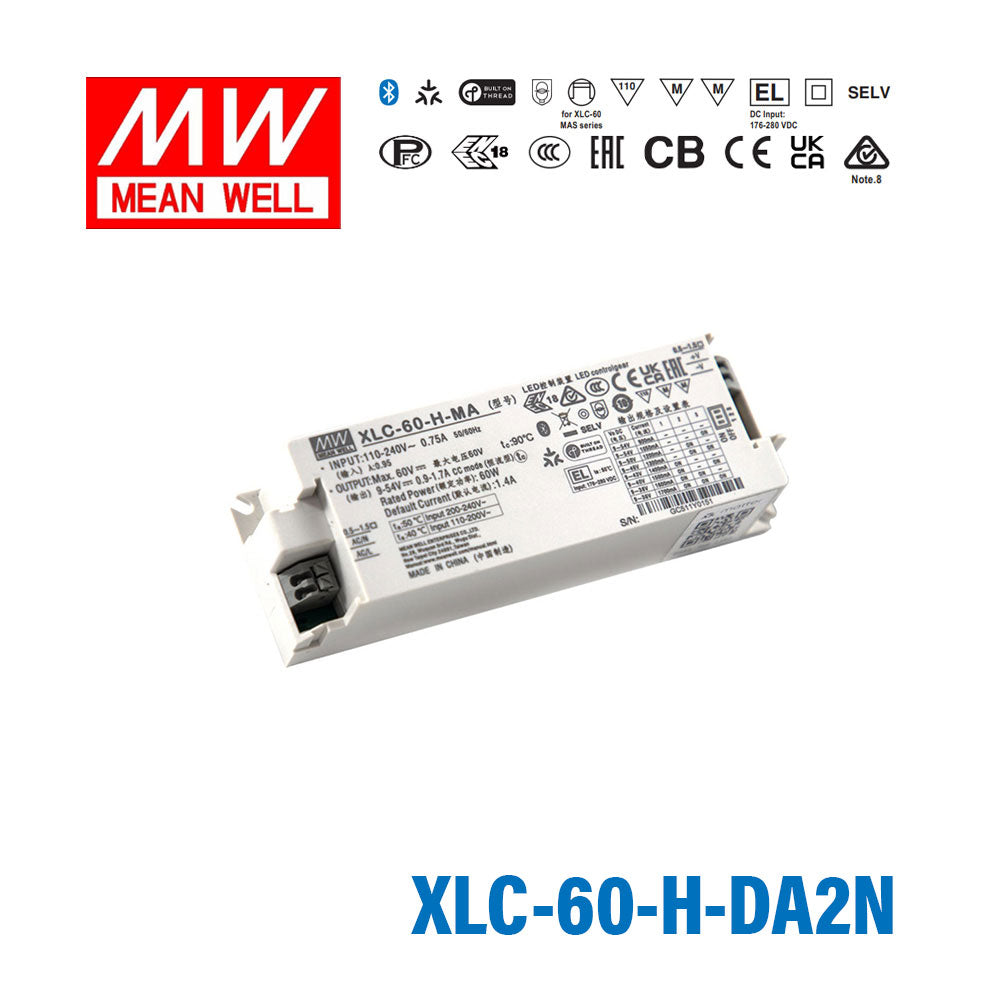

Mean Well XLC-60-H-DA2N LED Driver 60W 1400mA 9~54V Constant Power,...
Please Login for Pricing
Description
Description
Key Features
- ✓Constant power mode output with multiple stages selectable by dip switch or NFC setting(H-type)
- ✓Constant voltage mode output (12V/24V/48V)
- ✓Plastic housing with class II/2 and PFC design
- ✓Flicker-free, complying with IEEE1789/ErP
- ✓Standby power consumption <0.5W
- ✓Meet emergency lighting (EL) function application
- ✓Minimum dimming level 0.1% (DALI-2 DT6)
- ✓Dimming functions: 3 in 1 dimming (Dim-to-off) DALI-1 + Push dimming
- ✓5 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well XLC Series
-
Power Rating60 Watt
-
Output Voltage60 Volt
-
Rated Current1.4 Ampere
-
Input Voltage110V~305V
-
Standards MetCB,CCC,CE,EAC,ENEC,SELV
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~90°C
-
Warranty5 Year
-
Length17.6 cm
-
Width3.2 cm
-
Height4.5 cm
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the XLC-60-H-DA2N in a DALI2-controlled downlight installation where post-installation current tuning is required?
Yes. The XLC-60-H-DA2N adds NFC-based current setting to DALI2 and push dimming capability. After installation, the constant current can be adjusted from 0.9A to 1.7A via an NFC device without physical access to the driver, which is valuable in recessed ceiling fixtures.
Is the XLC-60-H-DA2N suitable for LED signage integrated into a DALI2 smart building system?
Yes. The DALI2 interface allows the driver to be addressed and controlled individually within a DALI2 network. With a 60W output at 1400mA constant current and a minimum dim level of 0.1%, it supports precise brightness management for LED signage modules operating in the 9–54V range.
Can the XLC-60-H-DA2N drive LED arrays that need commissioning current adjustment after the enclosure is sealed?
Yes. NFC current setting allows the output to be programmed remotely within the 0.9A to 1.7A range without opening the luminaire. This is useful for LED arrays that are trimmed and calibrated on-site once the fixture is closed.
What is the minimum dimming level supported by the XLC-60-H-DA2N?
The XLC-60-H-DA2N supports dimming down to 0.1% of rated output via DALI2 or push dimming, enabling very low light levels for applications like nighttime standby or circadian tuning.
What certifications does the XLC-60-H-DA2N hold, and what input voltage range does it accept?
The XLC-60-H-DA2N carries CB, CCC, CE, EAC, ENEC, and c_selv certifications. It accepts an input of 110–305VAC, covering both North American and European supply voltages.
How does the XLC-60-H-DA2N differ from the XLC-60-H-DA2?
Both models are 60W, 1400mA constant-current DALI2 + push-dimming drivers with a 9–54V CC range and 0.1% minimum dimming. The difference is the current-setting method: the XLC-60-H-DA2 uses a dip switch, while the XLC-60-H-DA2N uses NFC programming for contactless current adjustment.
