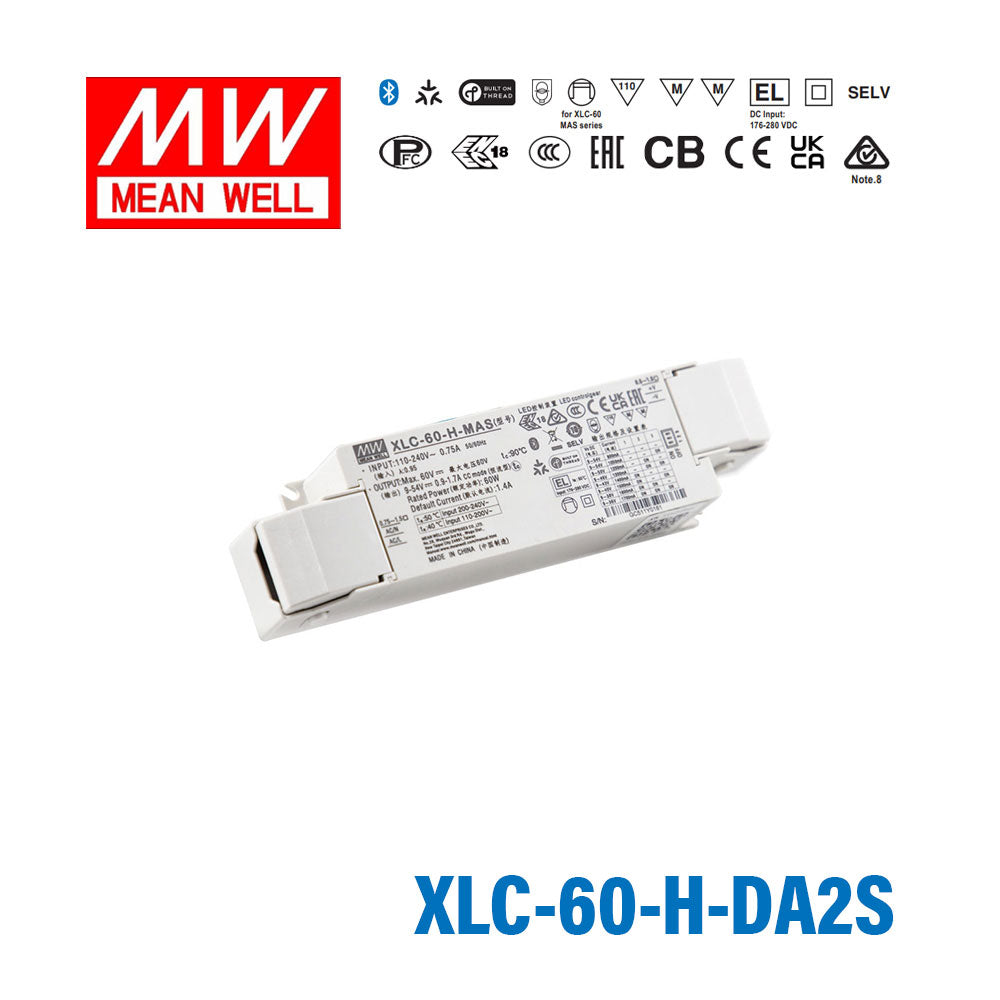

Mean Well XLC-60-H-DA2S LED Driver 60W 1400mA 9~54V Constant Power, DALI2 + Push Dimming with Strain-relief, Current Setting by Dip Switch

Yes. The XLC-60-H-DA2S provides DALI2 and push dimming along with a strain-relieved output cable, making it appropriate for downlight installations in which the output lead is subject to mechanical stress or routed through tight pathways. It delivers 60W at 1400mA constant current with a 9–54V CC range.

Yes. The strain-relief provides mechanical protection for the output wiring in signage applications where cables flex or vibrate. DALI2 and push dimming allow integration with networked lighting controls, and the minimum dimming level is 0.1%.

Yes. Many industrial luminaire installation codes require strain-relief on internal wiring connections. The XLC-60-H-DA2S includes this feature along with a 60W constant-current output adjustable from 0.9A to 1.7A via the dip switch. The LED count depends on each LED's forward voltage within the 9–54V CC operating range.

The XLC-60-H-DA2S supports DALI2 and push dimming, with a minimum dim level of 0.1%. Current setting is performed via the dip switch to values between 0.9A and 1.7A.

The XLC-60-H-DA2S is designed for built-in use inside a luminaire enclosure and operates from -25°C to +90°C. It holds CB, CCC, CE, EAC, ENEC, and c_selv certifications.

Both are 60W, 1400mA constant-current drivers with DALI2 + push dimming, 0.1% minimum dimming, dip-switch current setting, and the same 9–54V CC range. The XLC-60-H-DA2S adds output cable strain-relief for installations requiring mechanical cable protection.
