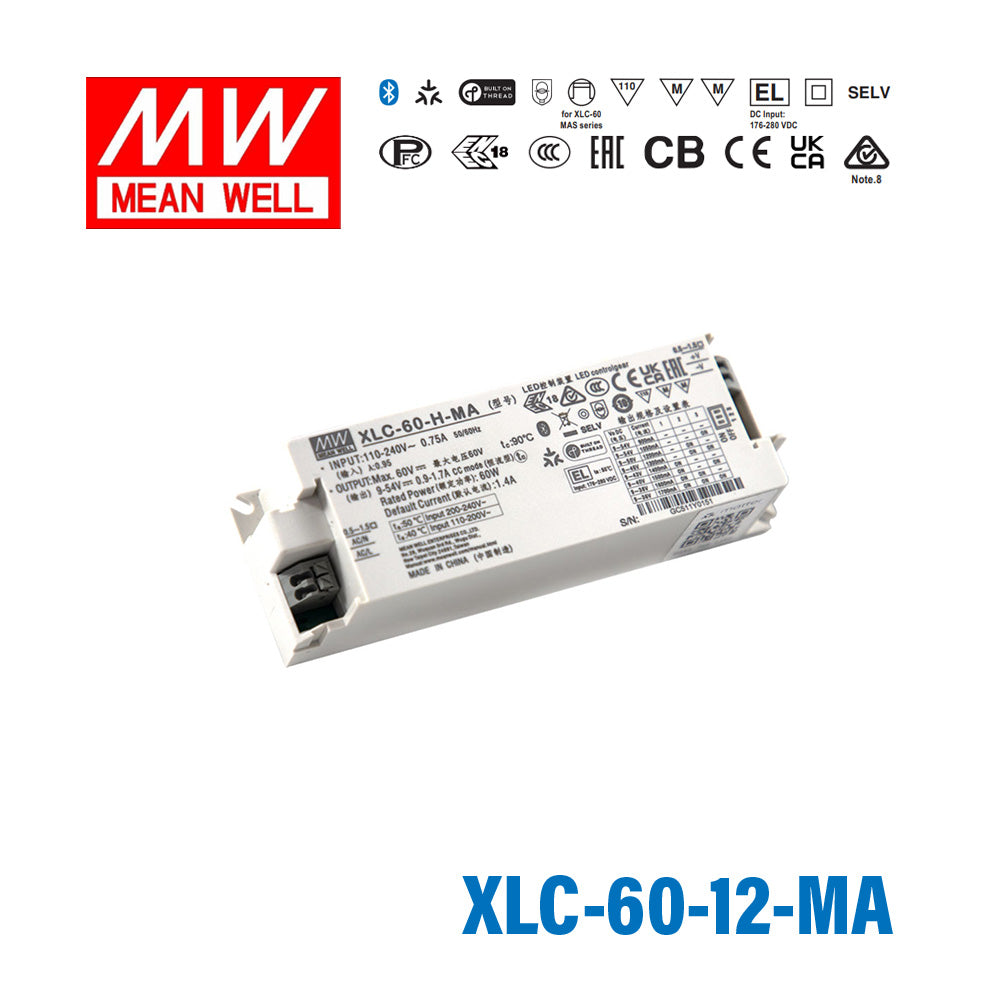

Mean Well XLC-60-12-MA LED Driver 60W 12V Constant Voltage LED Driver, Matter Wireless Dimming 5A

minimum dimming level 0.1%Matter 1.3 specificationclass II and PFC

SKU XLC-60-12-MA

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

XLC-60-12-MA is the 12V output model of this series: rated power 60W, typical efficiency 86%.

XLC-60-MA series is a 60W with constant power and constant voltage output LED driver . It can operate from 100~305V AC and output current ranging between 900 mA to 1700 mA selectable by DIP switch. Thanks to high efficiency up to 90%, it is able to operate for -25℃ ~90℃ case temperature under free air convection. XLC-60-MA series is designed based on latest safety regulations with matter wireless dimming .It provides more flexibility for LED Lighting application.

Features

Constant power mode output with multiple stage selectable by DIP switch (H-type)
Constant voltage mode output(12/24/48V)
Plastic housing with class Ⅱ and PFC design
Flicker free, complying with CE ErP directive
Standby power consumption <0.5W
Meet emergency lighting (EL) application
Minimum dimming level 0.1% (12/24/48V)
Minimum dimming level 0.5% (H-type)
Matter over thread, Matter 1.3 specification
5 years warranty

Specifications

XLC-60-12-MASpecifications from the official datasheet (2025-03-11 edition)

OUTPUT

DC VOLTAGE: 12V
DEFAULT CURRENT: 5A
RATED POWER^{Note.2 (12/24/48V), Note.4 (H)}: 60W
SETUP, RISE TIME^{Note.3 (12/24/48V), Note.6 (H)}: 2500ms,180ms/230VAC ,2500ms,180ms/115VAC

INPUT

VOLTAGE RANGE: 100~305VAC 155~400VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR: PF≥0.95/115VAC, PF≥0.95/230VAC, PF≥0.9/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load ≥60%/230VAC; @load ≥75%/277VAC); THD<10%@load 100%/230VAC (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY(Typ.)^{Note.7 (H)}: 86%
AC CURRENT: 0.75A/115VAC, 0.35A/230VAC, 0.3A/277VAC
INRUSH CURRENT: COLD START 15A(twidth=310μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. NO. of PSUs on 16A CIRCUIT BREAKER: 25 units (circuit breaker of type B) / 36 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC
STANDBY POWER CONSUMPTION^{Note.4 (12/24/48V), Note.9 (H)}: Standby power consumption<0.5W (Dimming off)

PROTECTION

OVERLOAD: 105~200% rated output power; Protection type: Hiccup mode, recovers automatically after fault condition is removed.
SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 14~17V; Shut down output voltage, re-power on to recover
OVER TEMPERATURE: Shut down output voltage, recovers automatically after fault condition is removed

ENVIRONMENT

WORKING TEMP.: Tcase=-25~90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=90℃
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13(EL) appendix J suitable for emergency installations (DC input 176-280VDC); BS EN/EN62384 , GB/T 19510.1, GB/T 19510.213, EAC TP TC 004 approved; Design refer to AS/NZS 61347-1, AS/NZS 61347-2-13
WITHSTAND VOLTAGE: I/P-O/P: 3.75KVAC
ISOLATION RESISTANCE: I/P-O/P: >100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55015(CISPR15) ,GB/T 17743
Radiated BS EN/EN55015(CISPR15) ,GB/T 17743
Harmonic Current BS EN/EN61000-3-2 , GB17625.1 Class C @load≥60%
Voltage Flicker BS EN/EN61000-3-3
EMC IMMUNITY: BS EN/EN61547

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
Radiated BS EN/EN61000-4-3 Level 2
EFT/Burst BS EN/EN61000-4-4 Level 2
Surge BS EN/EN61000-4-5 Level 3, 1KV/Line-Line
Conducted BS EN/EN61000-4-6 Level 2
Magnetic Field BS EN/EN61000-4-8 Level 2
Voltage Dips and Interruptions BS EN/EN61000-4-11 70% residual voltage for 10 period, 0% residual voltage for 0.5 periods

Parameter	Standard	Test Level
Conducted	BS EN/EN55015(CISPR15) ,GB/T 17743
Radiated	BS EN/EN55015(CISPR15) ,GB/T 17743
Harmonic Current	BS EN/EN61000-3-2 , GB17625.1	Class C @load≥60%
Voltage Flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact
Radiated	BS EN/EN61000-4-3	Level 2
EFT/Burst	BS EN/EN61000-4-4	Level 2
Surge	BS EN/EN61000-4-5	Level 3, 1KV/Line-Line
Conducted	BS EN/EN61000-4-6	Level 2
Magnetic Field	BS EN/EN61000-4-8	Level 2
Voltage Dips and Interruptions	BS EN/EN61000-4-11	70% residual voltage for 10 period, 0% residual voltage for 0.5 periods

OTHERS

MATTER STANDARD: Matter 1.3 Specification
FLICKER^{Note.7 (12/24/48V), Note.10 (H)}: PstLM ≤ 1, SVM ≤ 0.4
MTBF: 4130.5K hrs min. Telcordia SR-332 (Bellcore) 317.7Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 176*45*32mm , 136*45*32mm (L*W*H)
PACKING: 0.28Kg; 40pcs/12Kg/0.48CUFT(for Blank type); 0.30Kg; 40pcs/13Kg/0.63CUFT(for S-type);

Test conditions and notes14

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Output hiccups under no-load condition.
3. Please refer to “DRIVER METHODS OF LED MODULE”.
4. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
5. Current ripple is measured 50%~100% of maximum voltage under rated power delivery.
6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
7. Efficiency is measured at 1050mA/54V output set by DIP switch.
8. For XLC-S series: RCM is on a voluntary basis. Non IC classification Independent LED control gear is not suitable for residential installations. For XLC(except -S) series: RCM is on a voluntary basis and meets relevant IEC or AS/NZS standards complying with AS/NZS 4417.1.
9. Standby power consumption is measured at 230VAC.
10. Flicker is measured at full load with the light source provided by MEAN WELL.
11. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
12. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
13. This series meets the typical life expectancy of 50000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about75℃ or less.
14. For more information, please contact with MEAN WELL sales.

Technical drawings

XLC-60-12-MA BLOCK DIAGRAM — BLOCK DIAGRAM

XLC-60-12-MA DRIVING METHODS OF LED MODULE — DRIVING METHODS OF LED MODULE

XLC-60-12-MA PWM OUTPUT DIMMING PRINCIPLE — PWM OUTPUT DIMMING PRINCIPLE

XLC-60-12-MA OUTPUT LOAD vs TEMPERATURE — OUTPUT LOAD vs TEMPERATURE

XLC-60-12-MA STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

XLC-60-12-MA TOTAL HARMONIC DISTORTION (THD) — TOTAL HARMONIC DISTORTION (THD)

XLC-60-12-MA POWER FACTOR (PF) CHARACTERISTIC — POWER FACTOR (PF) CHARACTERISTIC

XLC-60-12-MA EFFICIENCY vs LOAD — EFFICIENCY vs LOAD

XLC-60-12-MA MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

XLC-60-12-MA ※ By RESET BUTTON — ※ By RESET BUTTON

XLC-60-12-MA Antenna location — Antenna location

Typical applications

Downloads

Datasheet1

XLC-60-12-MA datasheetXLC_60_MA_MAS_spec_sheet.pdf · 2025-03-11 edition PDF Download

FAQ

Can I control the XLC-60-12-MA wirelessly from a smart home hub?

Yes. The XLC-60-12-MA supports the Matter 1.3 specification, which is natively compatible with Apple Home, Google Home, Amazon Alexa, and other Matter-certified ecosystems. Once commissioned, you can dim the connected 12V LED load wirelessly without any additional dimming controller.

Is the XLC-60-12-MA suitable for dimmable 12V LED strip installations?

Yes. This driver provides constant voltage 12V output at up to 5A (60W) with a minimum dimming level of 0.1%, enabling very smooth low-end dimming of 12V LED strips. It is a good fit for architectural lighting, cove lighting, or accent strips where full dimming range is important.

Can the XLC-60-12-MA be used for 12V LED strips in a smart office lighting system?

Yes. The Matter 1.3 wireless dimming capability allows the driver to integrate directly into building automation or smart office systems without proprietary gateways. Its 60W output supports typical 12V LED strip runs; confirm the total strip load stays within 60W.

How much 12V LED strip can the XLC-60-12-MA power?

The maximum output is 60W at 12V and 5A. A 12V strip consuming 10W/m supports up to 6 meters; one rated at 14.4W/m supports approximately 4.1 meters. Always verify the strip's rated power per meter and keep the total load at or below 60W.

What input voltage range does the XLC-60-12-MA accept?

The XLC-60-12-MA accepts 100–305VAC input, covering worldwide mains voltages including 100V (Japan), 120V (North America), and 230V (Europe). It also supports 155–400VDC input.

Is the XLC-60-12-MA rated for outdoor or damp-location use?

No. The XLC-60-12-MA does not carry an IP ingress protection rating and is intended for dry or enclosed indoor installations. Exposure to moisture or rain should be avoided. For outdoor or damp environments, a driver with IP65 or higher protection is required.

What is the difference between the XLC-60-12-MA and XLC-60-12-MAS?

Both models share the same 60W, 12V, 5A output, Matter 1.3 wireless dimming, and 0.1% minimum dim level. The XLC-60-12-MAS adds a built-in strain-relief fitting and has a slightly larger footprint (176 × 45 × 32 mm vs. 136 × 45 × 32 mm) and higher weight (0.30 kg vs. 0.28 kg).
