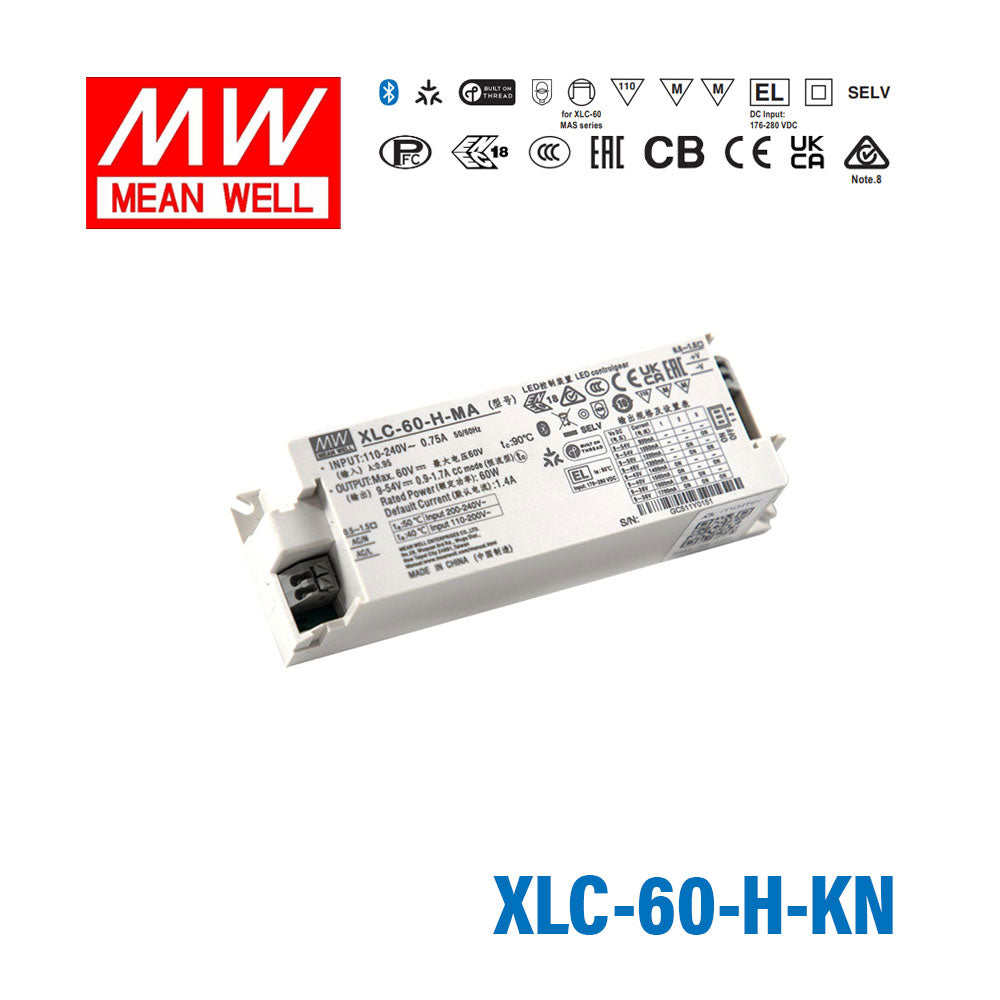

Mean Well XLC-60-H-KN LED Driver 60W 9~54V Constant Power, Current Setting by Dip Switch, For KNX System

current range 900-1700mAminimum dimming level 0.5%without strain-relief

SKU XLC-60-H-KN

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

XLC-60-H-KN is the model of this series: rated power 60W, typical efficiency 90%.

XLC-60-KN Series is a 60W with constant power output LED driver . It can operate from 100 ~ 305 VAC and output current ranging between 900mA to 1700mA selectable by ETS database and integration KNX interface to avoid using the compliated KNX-DALI gateway. Thanks to high efficiency up to 90%, it is able to operate for -25℃ ~90℃ case temperature under free air convection. XLC-60-KN is designed based on latest safety regulations , so it provides more flexibility for LED Lighting application.

Features

Constant power mode output with multiple stage selectable by ETS database
Plastic housing with class Ⅱ and PFC design
Flicker free, complying with CE ErP directive
Standby power consumption <0.5W
Meet emergency lighting (EL) application
KNX/EIB protocol, support KNX data secure
Minimum dimming level 0.5%
Functions: operation hours. power consumption feedback log/linear curve selection...etc
5 years warranty

Specifications

XLC-60-H-KNSpecifications from the official datasheet (2025-04-18 edition)

OUTPUT

OPEN CIRCUIT VOLTAGE^Note2: 60V
DEFAULT CURRENT: 900mA
CURRENT ADJ. RANGE (BY ETS Database): 0.9~1.7A
CONSTANT CURRENT REGION: 9~54V
RATED POWER^Note.4: 60W
CURRENT RIPPLE^Note5: <4%
CURRENT TOLERANCE: ±5%
DIMMING RANGE: 0~100%
SETUP,RISE TIME^Note.6: 800ms,100ms/230VAC ,1000ms,100ms/115VAC

INPUT

VOLTAGE RANGE: 100 ~ 305VAC 155 ~400VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR: PF≥0.95/115VAC, PF≥0.95/230VAC,PF≥0.9/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load ≥60%/230VAC; @load ≥75%/277VAC); THD<10%@load 100%/230VAC (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY(Typ.)^Note7: 90%
AC CURRENT: 0.75A/115VAC, 0.35A/230VAC, 0.3A/277VAC
INRUSH CURRENT: COLD START 15A(twidth=310μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. NO. of PSUs on 16A CIRCUIT BREAKER: 25 units (circuit breaker of type B) / 36 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC
STANDBY POWER CONSUMPTION^Note8: Standby power consumption<0.5W (Dimming off)

PROTECTION

SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER TEMPERATURE: Stage 1: De-rating to 75% loading; Stage 2: De-rating to 50% loading. Recovers automatically after fault condition is removed.

FUNCTION

DIMMING: Please refer to ‘DIMMING OPERATION’ section

ENVIRONMENT

WORKING TEMP.: Tcase=-25~90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=90℃
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY&EMC

SAFETY STANDARDS: ENEC BS EN/EN61347-1, BS EN/EN61347-2-13(EL) appendix J suitable for emergency installations(DC input 176-280VDC); BS EN/EN62384 , GB/T19510.1, GB/T19510.213, EAC TP TC 004 approved; Design refer to AS/NZS 61347-1, AS/NZS 61347-2-13
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC
ISOLATION RESISTANCE: I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55015(CISPR15) ,GB/T 17743
Radiated BS EN/EN55015(CISPR15) ,GB/T 17743
Harmonic Current BS EN/EN61000-3-2 , GB17625.1 Class C @load≥60%
Voltage Flicker BS EN/EN61000-3-3 -----; BS EN/EN61547
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
Radiated BS EN/EN61000-4-3 Level 2
EFT/Burst BS EN/EN61000-4-4 Level 2
Surge BS EN/EN61000-4-5 Level 3, 1KV/Line-Line
Conducted BS EN/EN61000-4-6 Level 2
Magnetic Field BS EN/EN61000-4-8 Level 2
Voltage Dips and Interruptions BS EN/EN61000-4-11 70% residual voltage for 10 period, 0% residual voltage for 0.5 periods

Parameter	Standard	Test Level
Conducted	BS EN/EN55015(CISPR15) ,GB/T 17743
Radiated	BS EN/EN55015(CISPR15) ,GB/T 17743
Harmonic Current	BS EN/EN61000-3-2 , GB17625.1	Class C @load≥60%
Voltage Flicker	BS EN/EN61000-3-3	-----; BS EN/EN61547

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact
Radiated	BS EN/EN61000-4-3	Level 2
EFT/Burst	BS EN/EN61000-4-4	Level 2
Surge	BS EN/EN61000-4-5	Level 3, 1KV/Line-Line
Conducted	BS EN/EN61000-4-6	Level 2
Magnetic Field	BS EN/EN61000-4-8	Level 2
Voltage Dips and Interruptions	BS EN/EN61000-4-11	70% residual voltage for 10 period, 0% residual voltage for 0.5 periods

OTHERS

KNX: Certified protocol
FLICKER^Note.9: PstLM ≤ 1, SVM ≤ 0.4
MTBF: 4130.5K hrs min. Telcordia SR-332 (Bellcore) 317.7Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 176*45*32mm , 136*45*32mm (L*W*H)
PACKING: 0.28Kg; 40pcs/12.1Kg/0.48CUFT(for blank type); 0.31Kg; 40pcs/13.1Kg/0.61CUFT(for S-type)

Test conditions and notes14

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Output hiccups under no-load condition.
3. Please refer to “DRIVER METHODS OF LED MODULE”.
4. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
5. Current ripple is measured 50%~100% of maximum voltage under rated power delivery.
6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
7. Efficiency is measured at 1050mA/54V output set by ETS database.
8. Standby power consumption is measured at 230VAC.
9. Flicker is measured at full load with the light source provided by MEAN WELL.
10. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
11. For XLC-S series: RCM is on a voluntary basis. Non IC classification Independent LED control gear is not suitable for residential installations. For XLC(except -S) series: RCM is on a voluntary basis and meets relevant IEC or AS/NZS standards complying with AS/NZS 4417.1.
12. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
13. This series meets the typical life expectancy of 50000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
14. For more information, please contact with MEAN WELL sales.

Technical drawings

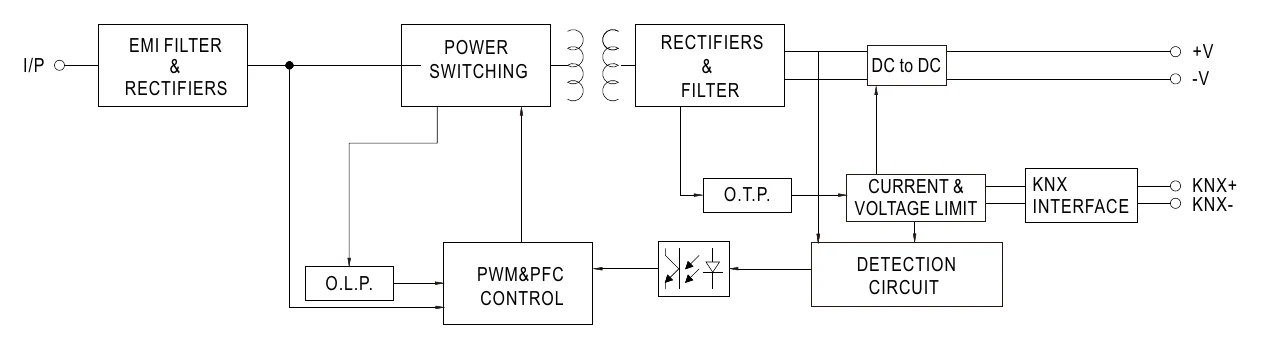

XLC-60-H-KN BLOCK DIAGRAM — BLOCK DIAGRAM

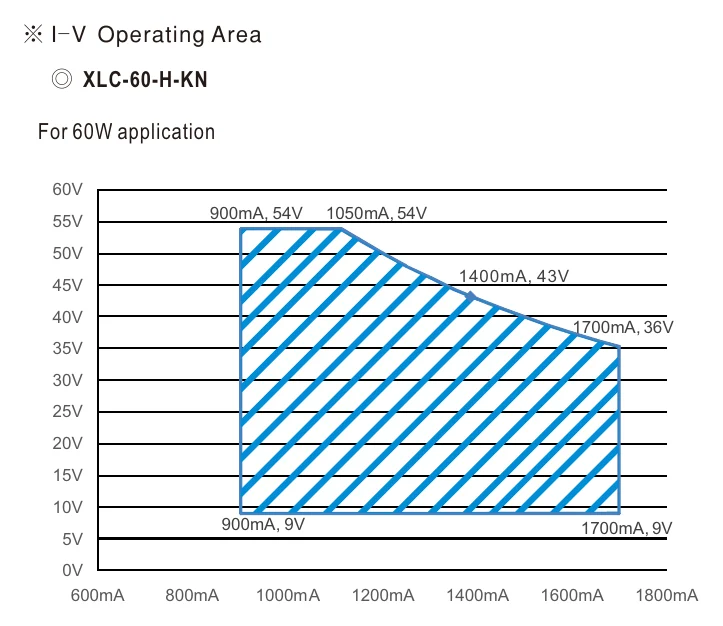

XLC-60-H-KN DRIVING METHODS OF LED MODULE — DRIVING METHODS OF LED MODULE

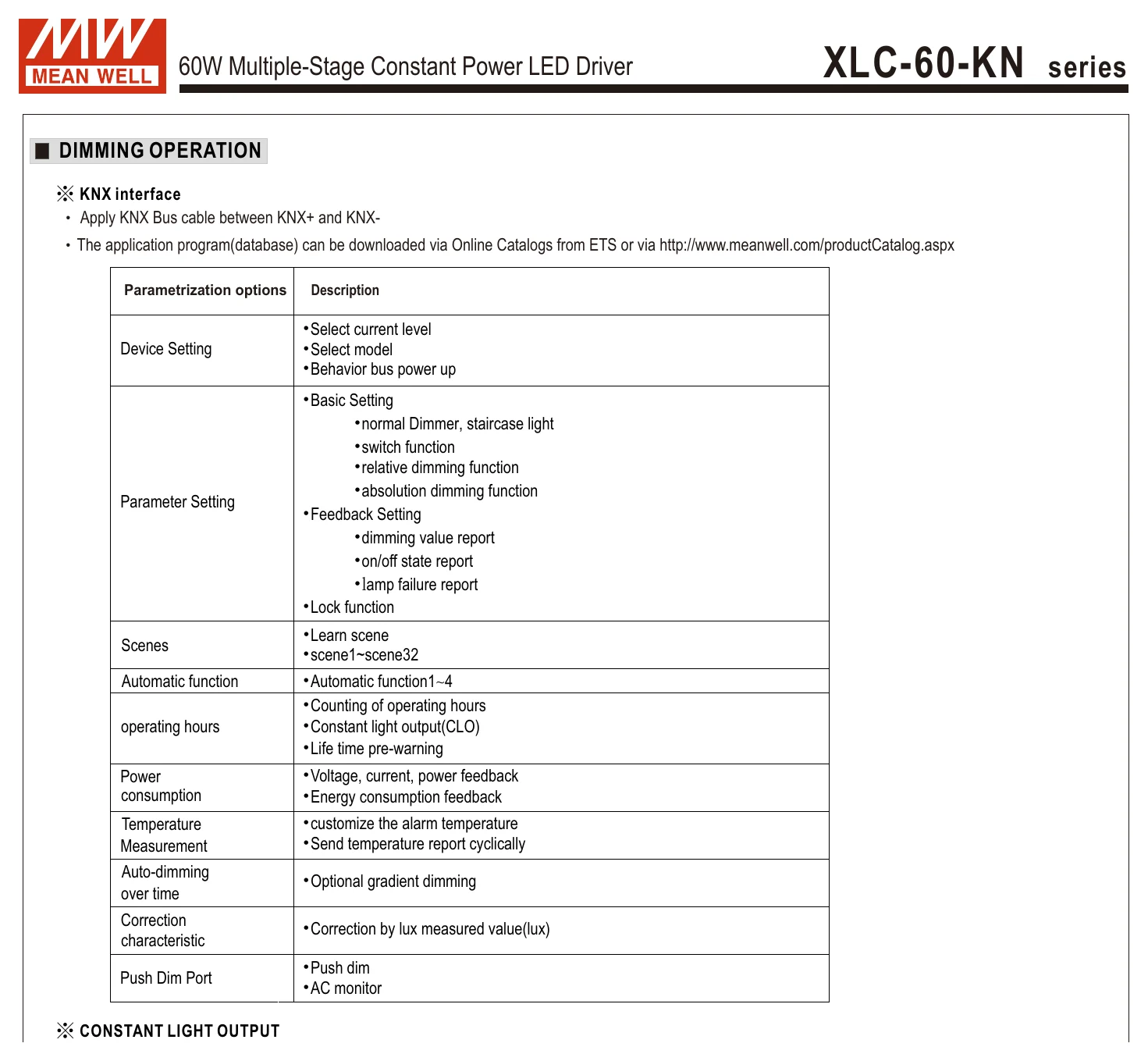

XLC-60-H-KN XLC-60-KN series — XLC-60-KN series

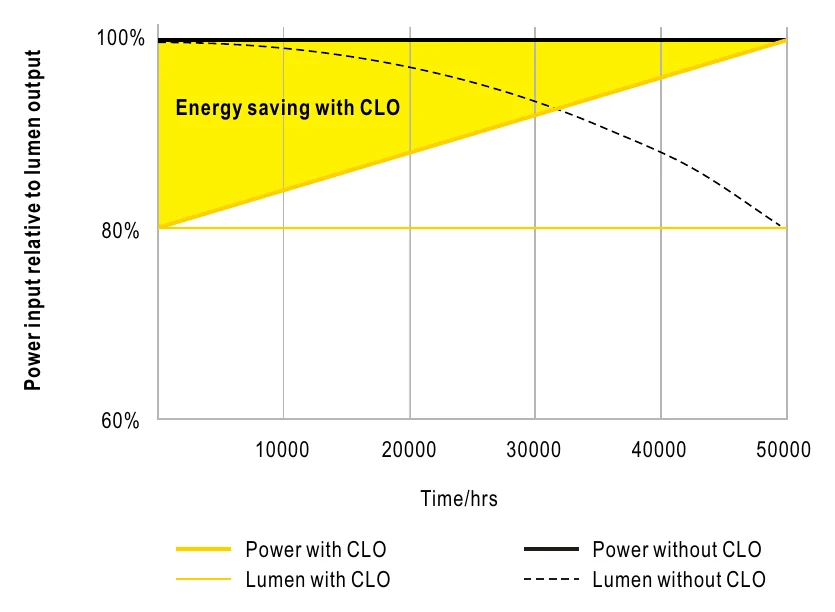

XLC-60-H-KN Powerinputrelativetolumenoutput — Powerinputrelativetolumenoutput

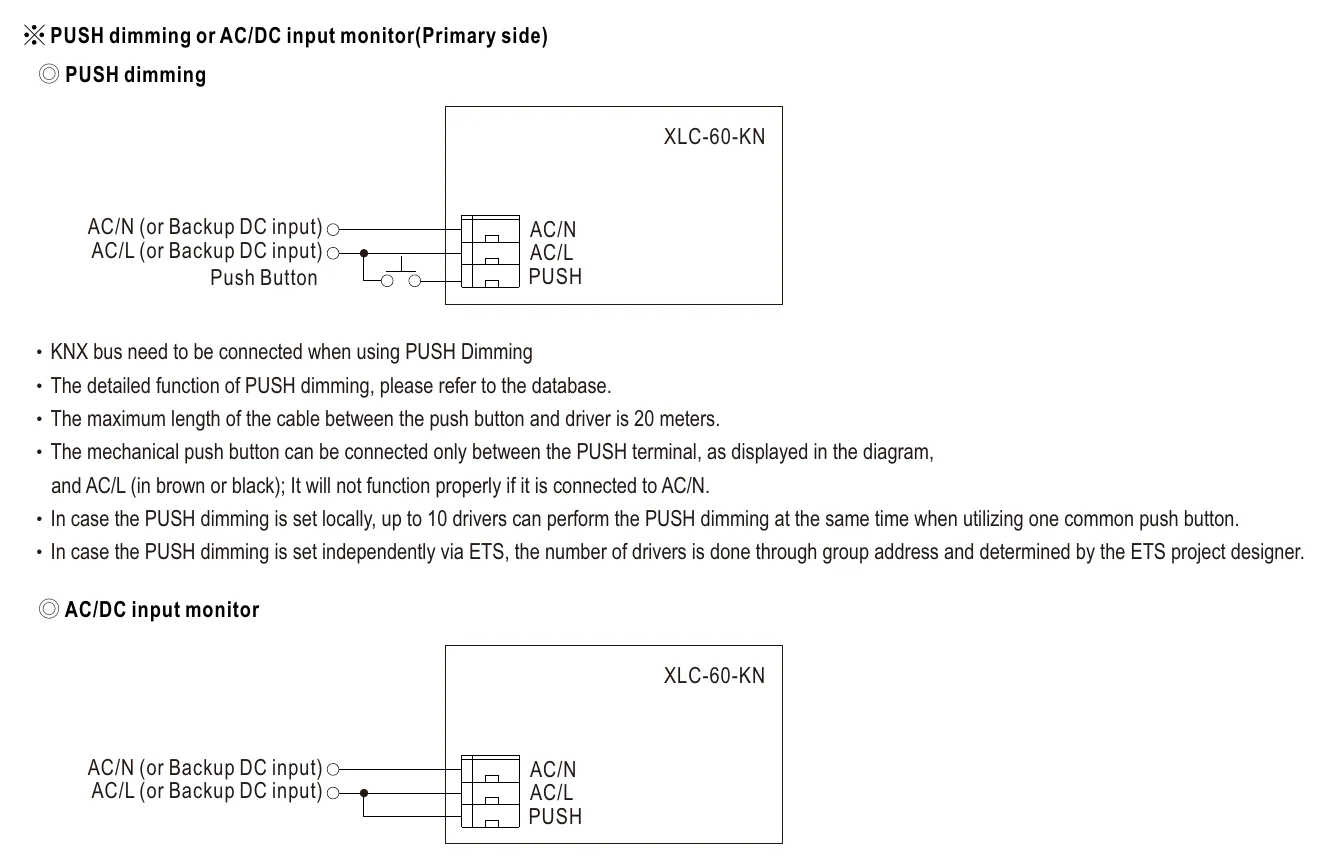

XLC-60-H-KN ※PUSH dimming or AC/DC input monitor(Primary side) — ※PUSH dimming or AC/DC input monitor(Primary side)

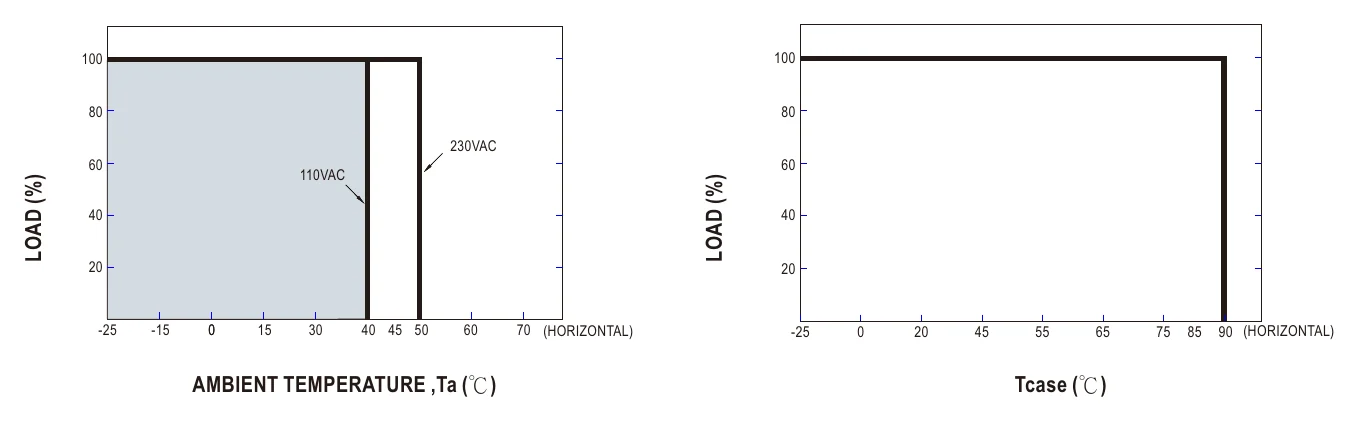

XLC-60-H-KN OUTPUT LOAD vs TEMPERATURE — OUTPUT LOAD vs TEMPERATURE

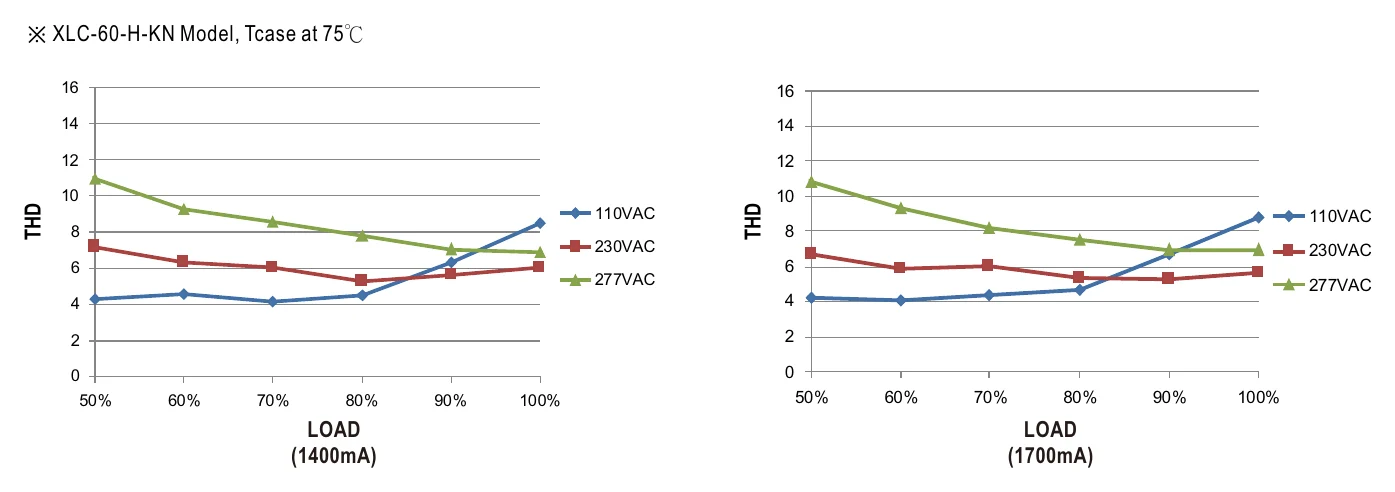

XLC-60-H-KN TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

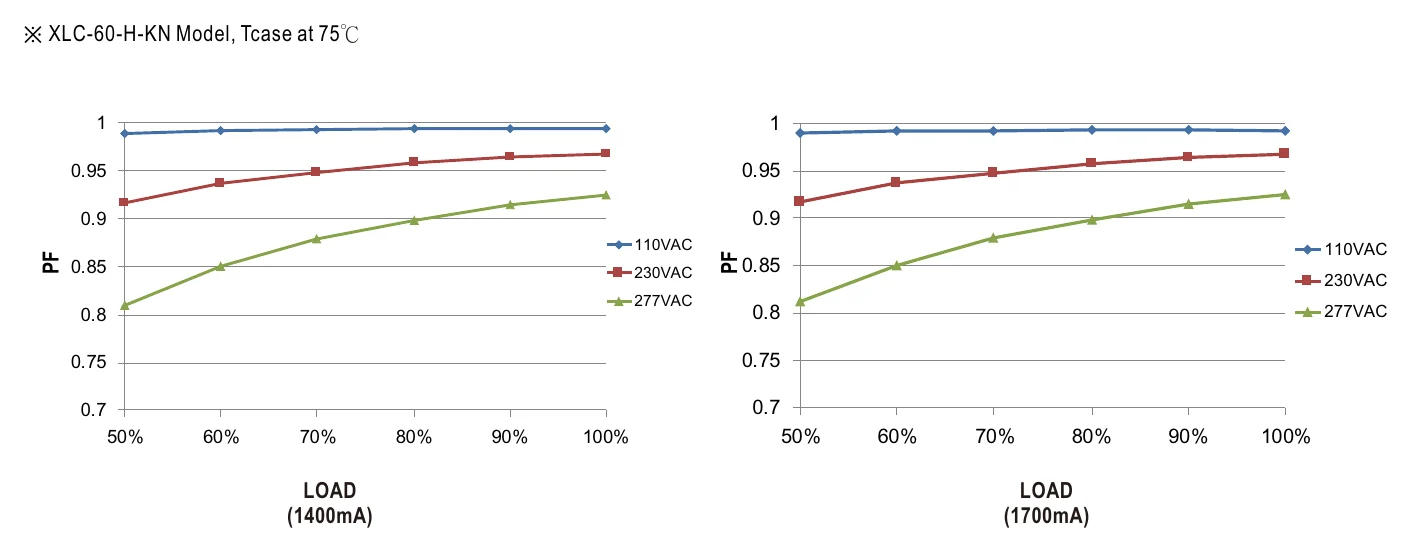

XLC-60-H-KN POWER FACTOR (PF) CHARACTERISTIC — POWER FACTOR (PF) CHARACTERISTIC

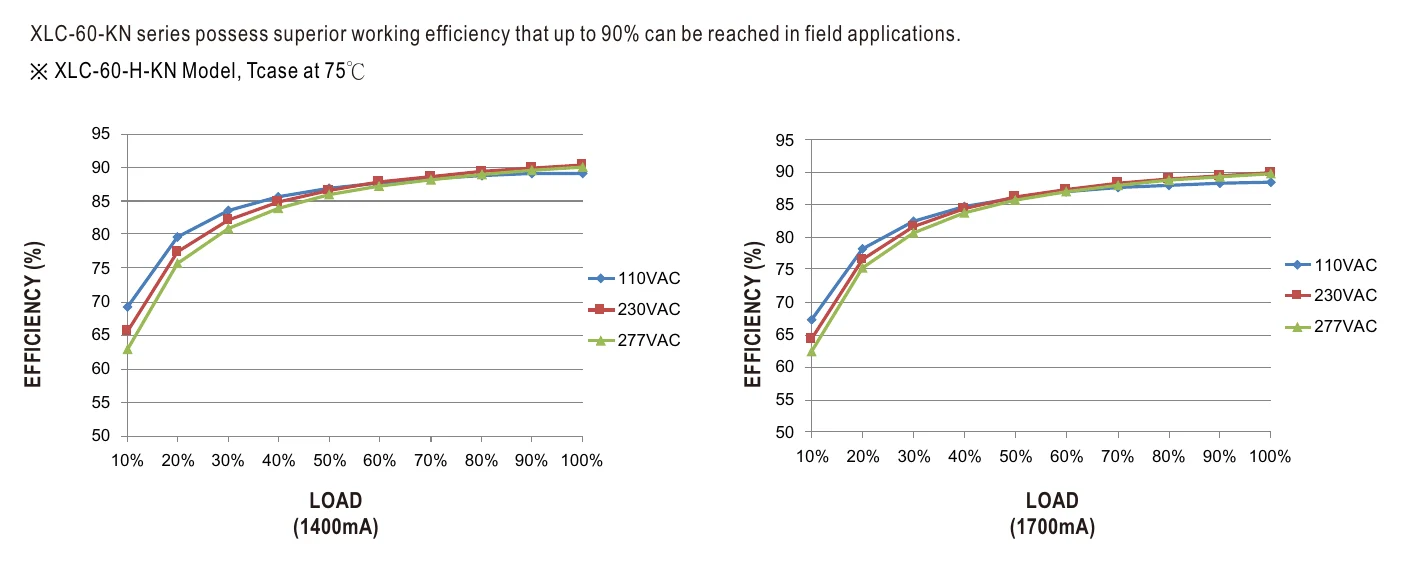

XLC-60-H-KN EFFICIENCY vs LOAD — EFFICIENCY vs LOAD

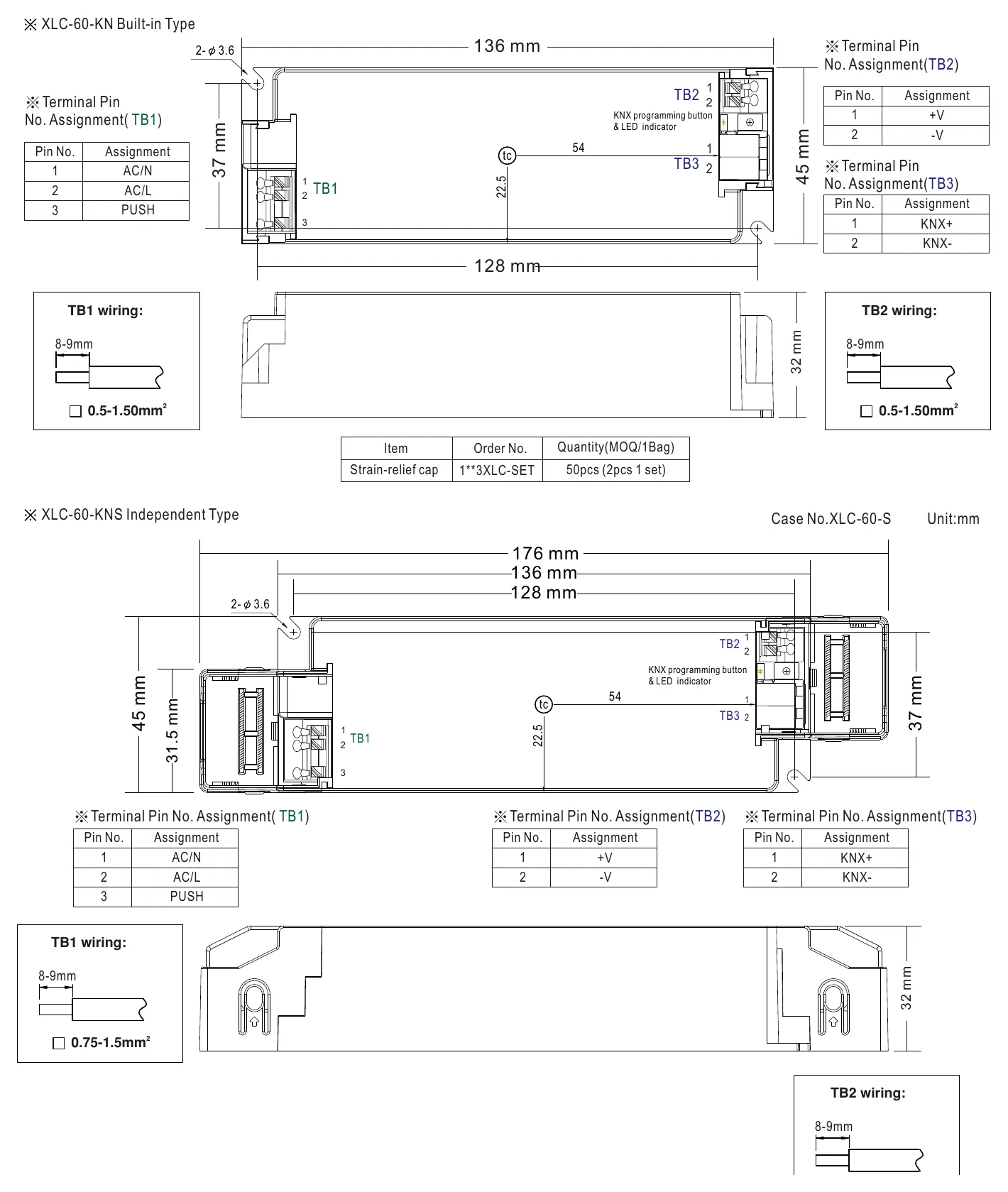

XLC-60-H-KN MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

Typical applications

Downloads

::specification::

FAQ

Can the XLC-60-H-KN be integrated into a KNX smart building automation system?

Yes, the XLC-60-H-KN is specifically designed for KNX systems, supporting dimming and control through the KNX bus. It delivers 60W at a constant current adjustable between 900–1700mA with a 9–54V CC output range, suitable for KNX-controlled LED downlight circuits.

Is the XLC-60-H-KN appropriate for powering LED arrays in commercial lighting panels controlled by a building management system?

The XLC-60-H-KN supports KNX-based dimming with a minimum dimming level of 0.5%, making it a fit for commercial LED panel or downlight arrays managed through a building management system. Its wide 100–305VAC input range accommodates most commercial electrical installations.

Can I use the XLC-60-H-KN to drive LED modules in architectural accent lighting where precise current levels are needed?

The current setting on the XLC-60-H-KN is selected via the ETS database, allowing selection within the 900–1700mA range, giving installers discrete current steps for matching LED module specifications in architectural applications. The constant current output over 9–54V supports series LED arrays common in accent lighting fixtures.

How many LEDs can the XLC-60-H-KN drive in a series string?

The CC output spans 9–54V; the number of LEDs that fit in a series string depends on each LED's forward voltage and cannot be stated as a fixed number. Size your series string so the total forward voltage of the array falls within the 9–54V constant current window.

What is the operating temperature range of the XLC-60-H-KN, and can it be used in cold storage or unheated outdoor enclosures?

The XLC-60-H-KN is rated for a case temperature of -25°C to +90°C, making it suitable for cold storage rooms and unheated enclosures typical of Northern European or cold-climate installations. No IP rating is provided, so a sealed enclosure is required for wet or outdoor environments.

What is the difference between the XLC-60-H-KN and the XLC-60-H-KNS?

Both the XLC-60-H-KN and XLC-60-H-KNS are 60W KNX-compatible constant current drivers with the same 900mA default output current and 9–54V CC range. The KNS variant adds a strain-relief fitting and is 40mm longer (176mm vs 136mm), while the KN comes without strain-relief.

Does the XLC-60-H-KN have power factor correction, and does it meet common commercial electrical compliance requirements?

The XLC-60-H-KN features PFC (PF≥0.95 at 115/230VAC) and carries ENEC, EAC, and other safety certifications (BS EN/EN61347-1, etc.). It is designed as a Class II device. It accepts 100–305VAC input with a 5-year warranty, meeting typical commercial installation compliance requirements across multiple regions.
