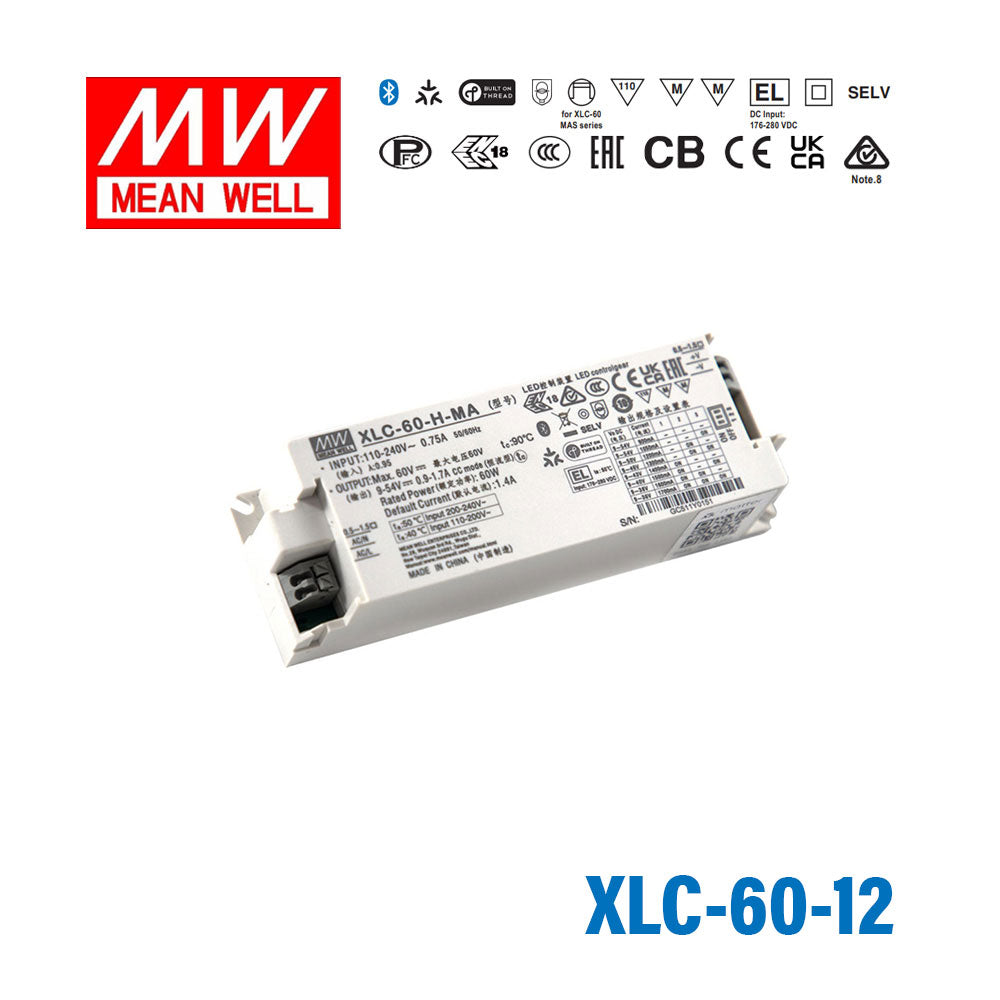

Mean Well XLC-60-12 LED Driver 60W 12V 5A
Please Login for Pricing
Description
Description
Key Features
- ✓Constant power mode output with multiple stages selectable by dip switch or NFC setting(H-type)
- ✓Constant voltage mode output (12V/24V/48V)
- ✓Plastic housing with class II/2 and PFC design
- ✓Flicker-free, complying with IEEE1789/ErP
- ✓Standby power consumption <0.5W
- ✓Meet emergency lighting (EL) function application
- ✓Minimum dimming level 0.1% (DALI-2 DT6)
- ✓Dimming functions: 3 in 1 dimming (Dim-to-off) DALI-1 + Push dimming
- ✓5 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well XLC Series
-
Power Rating60 Watt
-
Output Voltage12 Volt
-
Rated Current5 Ampere
-
Input Voltage110V~305V
-
Standards MetCB,CCC,CE,EAC,ENEC,SELV
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~90°C
-
Warranty5 Year
-
Length17.6 cm
-
Width3.2 cm
-
Height4.5 cm
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the XLC-60-12 to power 12V LED strip lighting in a retail display cabinet?
Yes. The XLC-60-12 outputs 12V at up to 5A (60W total), which is well-suited for 12V LED strip installations inside display cabinets. Its flicker-free operation makes it a good fit where consistent light quality matters. Check your strip's rated watts per meter to confirm the total load stays at or below 60W.
Is the XLC-60-12 suitable for powering 12V LED signage in a commercial setting?
Yes. The 60W constant voltage output at 12V makes this driver a practical choice for illuminated signage using 12V LED modules or strips. It accepts 110–305VAC input, giving flexibility across international mains voltages. Ensure your sign's total LED load does not exceed 60W.
Can I use this driver for under-cabinet LED strip lighting in a kitchen or office?
Yes. The XLC-60-12 is designed for built-in use and delivers a stable 12V constant voltage output, which is standard for under-cabinet LED strip systems. Its flicker-free design helps avoid visible flicker on camera or to sensitive observers. Keep the combined strip load under 60W.
How much 12V LED strip can the XLC-60-12 drive?
The XLC-60-12 provides a maximum of 60W at 12V. For example, a 12V strip rated at 10W/m allows up to 6 meters from this driver; a 14.4W/m strip allows approximately 4.1 meters. Always check your specific strip's rated power per meter and do not exceed 60W total load.
Is the XLC-60-12 safe to use in damp or outdoor environments?
The XLC-60-12 does not carry an IP ingress protection rating, so it is intended for dry, indoor, or enclosed-fixture installations only. It should not be directly exposed to moisture, rain, or condensation. For wet or outdoor locations, select a driver with an appropriate IP65 or higher rating.
What is the operating temperature range of the XLC-60-12?
The XLC-60-12 operates between -25°C and +90°C. This wide range supports use in cold storage areas as well as warm equipment enclosures. Ensure adequate ventilation in the installation enclosure to avoid sustained high-temperature operation.
How does the XLC-60-12 compare to other 60W models in the XLC series?
The XLC-60 tier includes 12V, 24V, and 48V constant voltage variants (XLC-60-12, XLC-60-24, XLC-60-48) as well as constant current 60V H-variants. The XLC-60-12 and XLC-60-12-S share identical 60W/12V/5A specs; the -S adds a strain-relief fitting. The -MA and -MAS variants add Matter 1.3 wireless dimming with a 0.1% minimum dim level.
