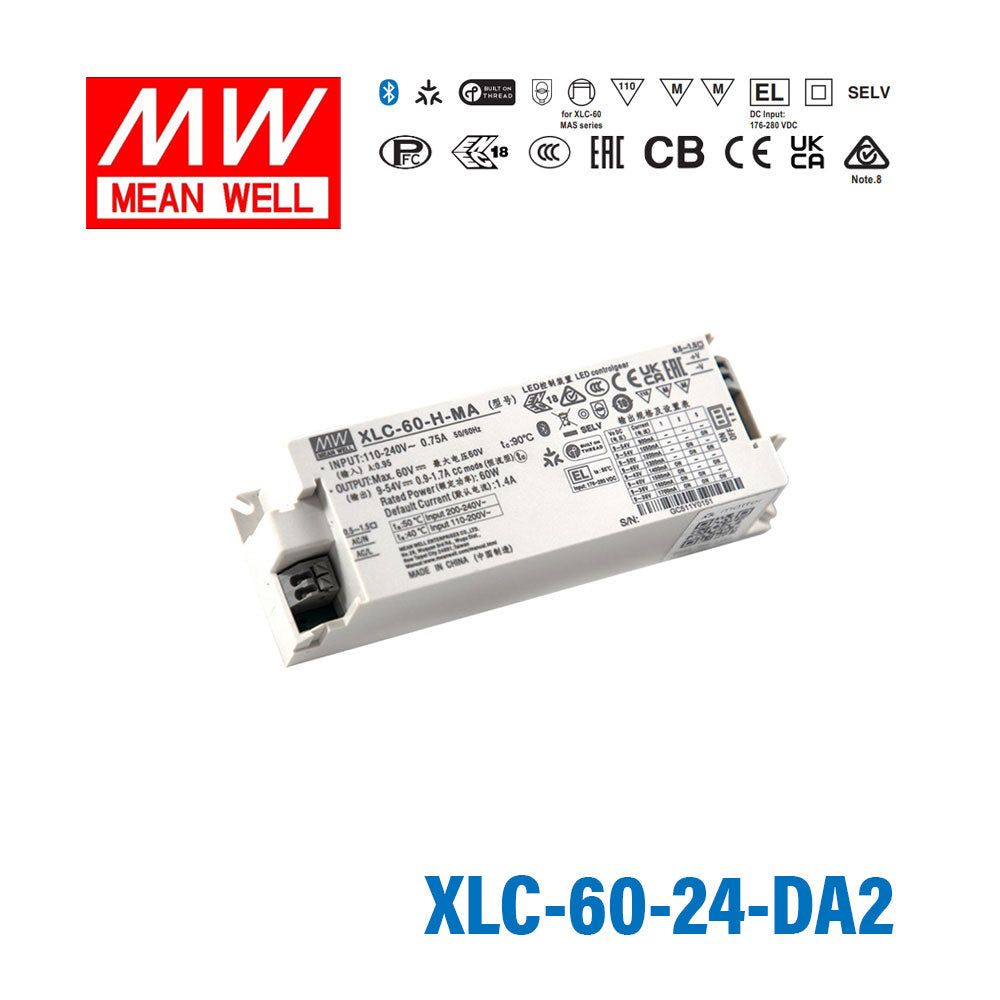

Mean Well XLC-60-24-DA2 60W 24V, DALI2 Dimmable 2.5A
Please Login for Pricing
Description
Description
Key Features
- ✓Constant power mode output with multiple stages selectable by dip switch or NFC setting(H-type)
- ✓Constant voltage mode output (12V/24V/48V)
- ✓Plastic housing with class II/2 and PFC design
- ✓Flicker-free, complying with IEEE1789/ErP
- ✓Standby power consumption <0.5W
- ✓Meet emergency lighting (EL) function application
- ✓Minimum dimming level 0.1% (DALI-2 DT6)
- ✓Dimming functions: 3 in 1 dimming (Dim-to-off) DALI-1 + Push dimming
- ✓5 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well XLC Series
-
Power Rating60 Watt
-
Output Voltage24 Volt
-
Rated Current2.5 Ampere
-
Input Voltage110V~305V
-
Standards MetCB,CCC,CE,EAC,ENEC,SELV
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~90°C
-
Warranty5 Year
-
Length13.6 cm
-
Width3.2 cm
-
Height4.5 cm
-
Weight0.32 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What are the main specifications of the Mean Well XLC-60-24-DA2?
The Mean Well XLC-60-24-DA2 is a 60W constant voltage LED driver with a 24V output and 2.5A rated current. It supports DALI dimming, has a Class II plastic housing with PFC design, and carries a 5 year warranty.
Is the XLC-60-24-DA2 suitable for 24V LED lighting?
Yes, this model is specified as a 24V constant voltage LED driver. It is intended for LED loads that match its 24V output and stay within its 60W, 2.5A rating.
Does the XLC-60-24-DA2 support DALI dimming?
Yes, the XLC-60-24-DA2 includes DALI dimming support and is described as DALI-2 DT6 capable. It also lists DALI-1 plus Push dimming and 3 in 1 dimming with dim-to-off functionality.
What type of lighting projects is this LED driver best suited for?
This model is a good fit for 24V LED lighting projects that need a 60W constant voltage driver with DALI dimming control. Its flicker-free design, low standby consumption, and dimming support make it relevant for commercial and architectural lighting applications.
What operating temperature range is listed for the XLC-60-24-DA2?
The listed temperature range for this model is -25°C to 90°C. Buyers should confirm the full product datasheet and project conditions when selecting it for higher-temperature environments.
How low can the XLC-60-24-DA2 dim?
The product data lists a minimum dimming level of 0.1% for DALI-2 DT6. That makes it suitable for projects where very low light output is required from a compatible dimming system.
Why choose the DA2 version of the XLC-60-24 model?
The DA2 version is the DALI dimmable option in this product listing. It is the relevant choice when the project calls for a 60W, 24V LED driver with DALI-2 dimming capability rather than a non-dimming supply.
What warranty comes with the XLC-60-24-DA2?
The XLC-60-24-DA2 is listed with a 5 year warranty. It also has a listed weight of 0.32 kg, which may be useful for product selection and logistics.
