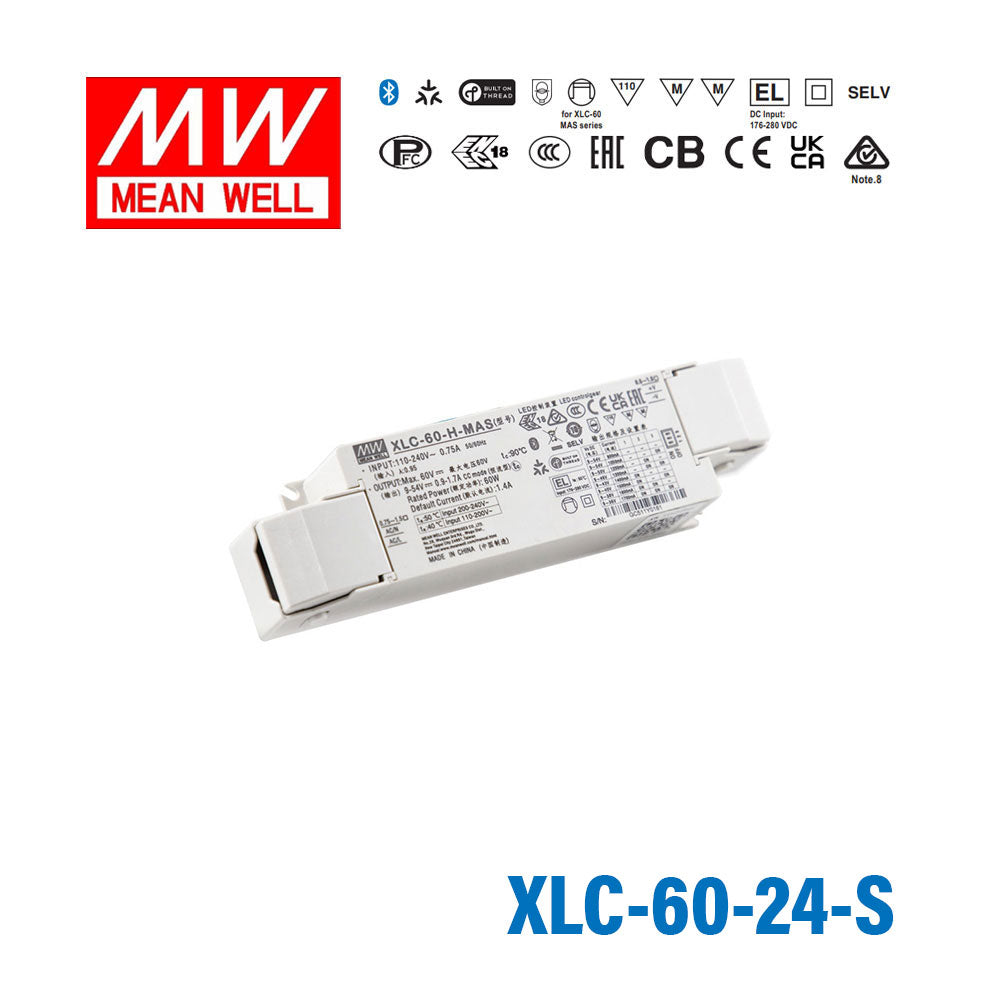

Mean Well XLC-60-24-S LED Driver 60W 24V with Strain-relief 2.5A
Log in to see priceThe Mean Well XLC-60-24-S is a 60W constant voltage LED driver with a regulated output of 24V DC at up to 2.5A. It is housed in an independent-type plastic housing supplied with a strain-relief cap, is Class II with no earth connection required, and has built-in active PFC with flicker-free output to the CE ErP directive.
Accepting 110~305VAC universal input, the XLC-60-24-S operates at a case temperature of -25°C to 90°C and carries CB, CCC, CE, EAC, ENEC and SELV approvals. It is a fixed-output, non-dimmable model. Suitable for emergency lighting (EL) installations on a 176~280VDC supply. Protected against short circuit and over temperature, and backed by a 5-year warranty.
Key Features
- ✓Constant voltage mode output (12V/24V/48V)
- ✓Plastic housing with class II/2 and PFC design
- ✓Flicker-free, complying with IEEE1789/ErP
- ✓Meet emergency lighting (EL) function application
- ✓5 years warranty
-
BrandMean Well
-
SeriesMean Well XLC Series
-
Power Rating60 Watt
-
Output Voltage24 Volt
-
Rated Current2.5 Ampere
-
Input Voltage110V~305V
-
Standards MetCB,CCC,CE,EAC,ENEC,SELV
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~90°C
-
Warranty5 Year
-
Length17.6 cm
-
Width4.5 cm
-
Height3.2 cm
-
Weight0.39 kg
::specification::
Frequently Asked Questions
What are the main output specifications of the Mean Well XLC-60-24-S?
The Mean Well XLC-60-24-S is a 60W constant-voltage LED driver with a 24V output. Its rated output current is 2.5A, making it suitable for compatible 24V LED loads within the 60W power limit.
What is the XLC-60-24-S typically used for?
This model is intended for 24V LED lighting applications that require an AC-DC LED driver. It is listed in LED driver and power supply categories, including 24V LED driver use cases.
Is the XLC-60-24-S compatible with 24V LED products?
Yes, this model provides a 24V constant-voltage output. Buyers should match the LED load voltage to 24V and keep the total load within the 60W rated power.
Is the Mean Well XLC-60-24-S dimmable?
The product data for this SKU lists the dimming control as non-dimmable. If dimming is required, buyers should confirm that they are selecting a dimmable variant rather than this specific listed model.
What operating temperature range is listed for the XLC-60-24-S?
The listed temperature range for this model is -25°C to 90°C. This makes the temperature rating an important spec to check against the conditions of the intended LED lighting application.
What warranty period is provided for the XLC-60-24-S?
The XLC-60-24-S is listed with a 5-year warranty period. This warranty term applies to this specific Mean Well 60W 24V LED driver model as provided in the product data.
