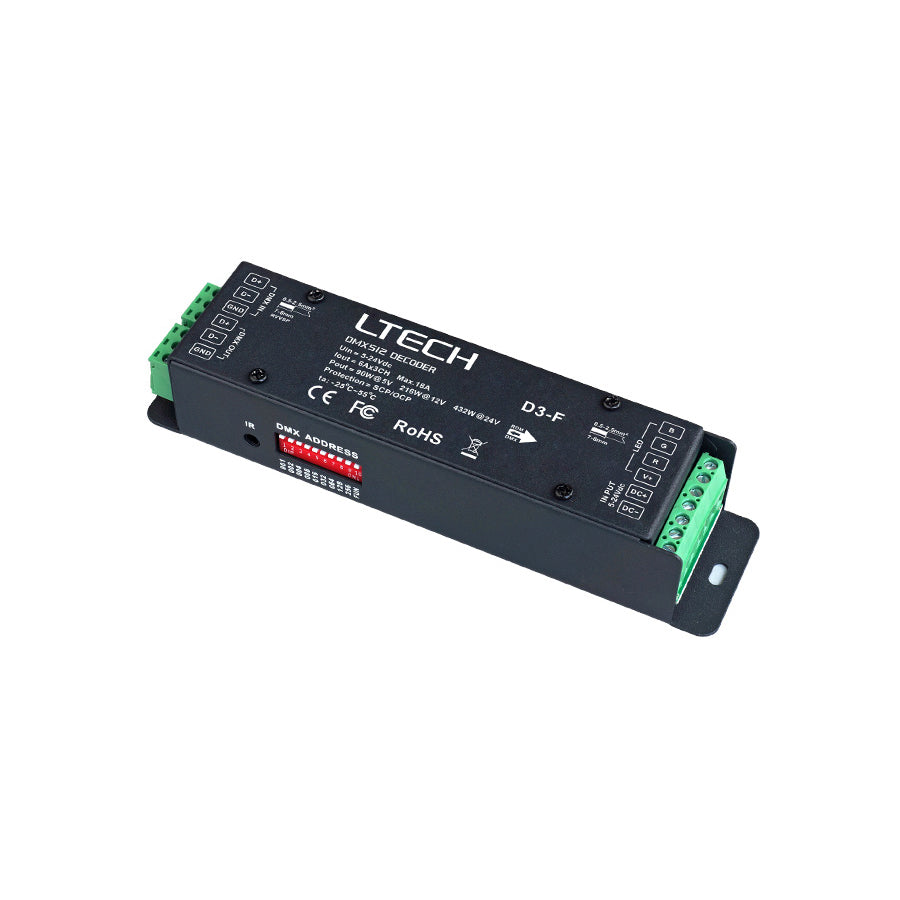

Ltech D3-F Constant Voltage 3 Channel DMX/RDM Decoder, 5-24V, 6A pe...
Log in to see priceThe D3-F is a constant voltage DMX/RDM decoder for single color, bi-color, and RGB LED lamps. Its 3-channel design makes it suitable for applications where separate dimming control is needed across up to three channels. the D3-F is intended for low-voltage LED control within a 5-24V DC system.
Input 5~24VDC. 3 channels at 6A each. Operating temperature -25~+55°C. Backed by a 5 year warranty.
Key Features
- ✓Input voltage: 5~24VDC
- ✓Control protocol: dimmable
- ✓Output signal: DMX Signal, RDM Signal
- ✓Output channels: 6A - 3 Channel
- ✓Maximum load: 6A per channel
- ✓Maximum total load: 90W
- ✓Operating temperature: -25~+55°C
- ✓Certifications: CE, FC, ROHS
- ✓Dimensions: 175 x 42 x 33mm
- ✓5 year warranty
-
BrandLtech
-
SeriesLtech WIFI Series
-
Power Rating90 Watt
-
Output Voltage5 Volt
-
Rated Current18 Ampere
-
Input Voltage5V~24V
-
Standards MetCE,FC,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~55°C
-
Warranty5 Year
-
Length17.5 cm
-
Width4.2 cm
-
Height3.3 cm
-
Weight0.31 kg
::specification::
Frequently Asked Questions
What types of LED lighting is the Ltech D3-F designed to control?
The D3-F is a constant voltage DMX/RDM decoder for single color, bi-color, and RGB LED lamps. Its 3-channel design makes it suitable for applications where separate dimming control is needed across up to three channels. This model is intended for low-voltage LED control within a 5-24V DC system.
Does the Ltech D3-F support RDM as well as DMX512?
Yes. The D3-F supports both DMX512 and RDM, including bi-directional communication for remote device management. It can be used for reading and writing the DMX address when the DMX master controller also recognizes the RDM protocol.
What are the electrical ratings of the D3-F decoder?
This model accepts 5-24V DC input and is rated for 6A per channel across 3 channels, with a maximum total load of 18A. Output power depends on system voltage: 90W at 5V, 216W at 12V, and 432W at 24V. These ratings make it suitable for higher-load constant voltage LED control applications.
Is the Ltech D3-F a dimmable controller?
Yes, the D3-F supports 0-100% dimming. It can also be used to achieve different lighting effects within compatible constant voltage LED applications. This makes it appropriate for commercial and architectural lighting control where smooth dimming is required.
What protection features are included in the D3-F?
The D3-F includes short circuit protection and over-current protection. These built-in protections help support more reliable operation in demanding LED control environments. They are part of the product's standard specification for this model.
Can the D3-F be used in demanding temperature environments?
The rated working temperature range for the D3-F is -25°C to 55°C. That range supports use in a variety of indoor or protected commercial environments where low or elevated ambient temperatures may be a factor. Buyers should confirm the full application environment stays within that specified range.
