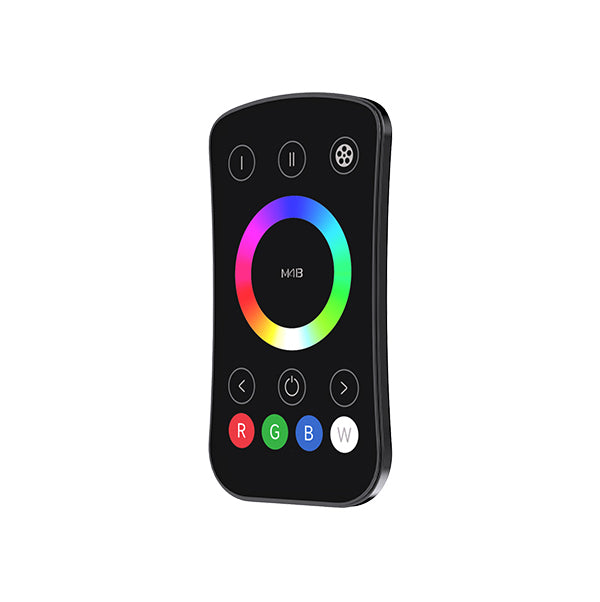

Ltech M4B Mini Remote - RGBW, Single Zone - Black Finish
Log in to see priceOverview
The MINI series LED remotes use RF 2.4GHz wireless transmission technology and the control distance (under no interference) can be up to 30 meters. Connect to a P5 controller with 5 channel outputs which supports DIM/CT/RGB/RGBW/RGBCW light. One remote can control a large amount of controllers within the effective range to achieve different functions, such as turning lights on/off, adjusting brightness, CT, static RGB color, effects of dynamic modes, and recalling scenes, which meet the needs of users for different lighting applications. Dimming remote (M1A/M1B) has brightness shortcuts that allow you to switch the brightness percentage with one press; CT remote (M2A/M2B) has the night light function that allows you to switch to low brightness with one press; RGBW remote (M4A/M4B) and RGBCW remote (M5A/M5B) allow you to switch dynamic modes through the mode button, as well as to loop playing the effects of 12 modes through pressing different buttons together.
Specifications
Technical parameters
- Color
- Black
- Dimming mode
- RGBW
- Wireless protocol
- RF 2.4GHz
- Working voltage
- 3Vdc (Button battery Cr2032×1)
- Standby current
- <2uA
- Distance of remote
- 30M (Under no interference)
- Working temp.
- -30°C~55°C
- Weight
- 40g±10g
- Dimensions
- 104×58×9mm (Remote), 108×63×14mm (Remote + Holder)
Others
- Warranty periods
- 5 years
Certifications & ratings
- Certification marks
- CE, FCC, RoHS
Technical drawings
Downloads
Datasheet1
FAQ
What is the Ltech M4B Mini Remote used for?
The Ltech M4B is a handheld RF remote designed for RGBW lighting control in single-zone applications. It is intended for use where users want wireless control over functions like on/off, brightness adjustment, static color selection, dynamic modes, and scene recall.
What type of lighting control does the M4B support?
This model is designed for RGBW dimming control. It is suited to applications where separate red, green, blue, and white light control is needed from one compact remote.
Is the Ltech M4B a single-zone or multi-zone remote?
The M4B is a single-zone remote. That makes it a fit for applications where one lighting area or grouped zone is meant to respond together rather than being controlled independently across multiple zones.
What wireless technology does the M4B use, and what is its range?
The M4B uses RF 2.4GHz wireless transmission technology. Under no-interference conditions, the remote control distance can reach up to 30 meters.
Which controllers is the Ltech M4B compatible with?
The M4B is designed for RGBW dimming control. It is intended for use with compatible Ltech controllers that support RGBW light types, allowing for wireless control of red, green, blue, and white channels.
Can one M4B remote control multiple controllers?
Yes. The M4B remote can control multiple compatible controllers within its effective wireless range, which is useful in projects where multiple devices need to respond together.
What kind of battery does the M4B use?
The remote operates on 3Vdc using one CR2032 button battery. Its standby current is listed as less than 2uA, which supports very low idle power draw.
Is the Ltech M4B suitable for demanding temperature environments?
The specified working temperature range is -30°C to 55°C. That gives it a wider operating range than many basic indoor controls, making it better suited for environments that may experience significant temperature variation.
