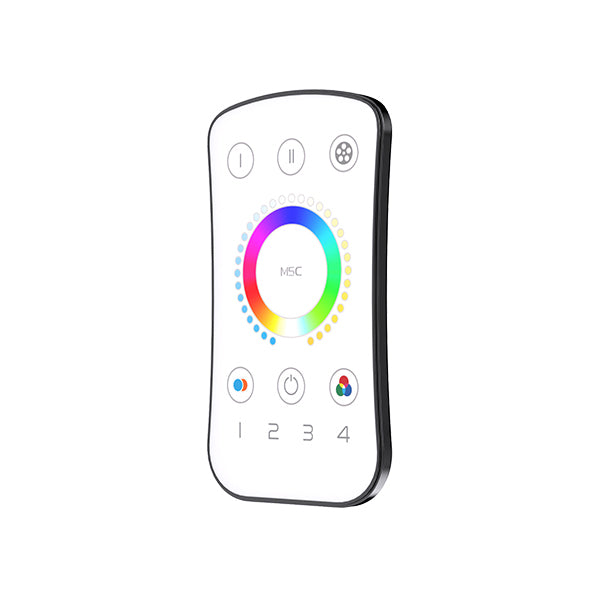

Ltech M5C Mini Remote - RGBCW, Multi-Zone - White Finish

Q: What does the Ltech M5C Mini Remote control?

The Ltech M5C Mini Remote is designed to control RGBCW lighting functions through compatible controllers in the MINI series ecosystem. It supports on/off control, brightness adjustment, color temperature changes, static RGB color selection, dynamic mode effects, and scene recall.

Q: Does the M5C support multi-zone control?

Yes, the M5C supports multi-zone control. One remote can manage multiple zones, and multiple controllers can be assigned to the same zone for grouped control.

Q: What wireless technology does the M5C use, and what is its range?

This model uses RF 2.4GHz wireless transmission technology. Its control distance can reach up to 30 meters under no-interference conditions.

Q: What kind of battery does the Ltech M5C Mini Remote use?

The M5C operates on 3Vdc using one CR2032 button battery. Its standby current is listed as less than 2uA, which helps minimize idle power draw.

Q: Is the M5C suitable for demanding temperature environments?

The remote is rated for operation from -30°C to 55°C. That makes it suitable for a wide range of commercial and architectural lighting environments within that temperature window.

Q: What are the size and finish of the Ltech M5C Mini Remote?

The M5C comes in a white finish. The remote measures 104 x 58 x 9 mm, and the remote with holder measures 108 x 63 x 14 mm.

RF 2.4GHz, 30m signal distance, battery(CR2032) needed

SKU:

M5C

Please for Pricing

Notify me when it's back in stock

Description

Features:

The MINI series LED remotes use RF 2.4GHz wireless transmission technology and the control distance (under no interference) can be up to 30 meters.

Connect to a P5 controller with 5 channel outputs which supports DIM/CT/RGB/RGBW/RGBCW light. One remote can control a large amount of controllers within the effective range to achieve different functions, such as turning lights on/off,adjusting brightness, CT, static RGB color, effects of dynamic modes, and recalling scenes, which meet the needs of users for different lighting applications.

Zone control is supported and one remote can control multiple zones. Multiple controllers can be paired with one zone to achieve group control in this zone. A single press on ON/OFF button allows you to turn on/off all zone lights at the same time.

General Specification

Model

M5C

Color

White

Dimming mode

RGBCW

Wireless protocol

RF 2.4GHz

Working voltage

3Vdc (Button battery Cr2032×1)

Standby current

<2uA

Distance of remote

30M (Under no interference)

Working temp

-30°C~55°C

Weight

40g±10g

Dimensions

104×58×9mm (Remote), 108×63×14mm (Remote + Holder)

Specifications

Brand

Ltech
Series

Ltech WIFI Series
Output Voltage

3 Volt
Rated Current

0 Ampere
Standards Met

CE,FC,ROHS
Operation Mode

Constant Voltage
Operating Temperature

-30°C~55°C
Warranty

5 Year
Length

10.4 cm
Width

5.8 cm
Height

0.9 cm
Weight

0.01 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What does the Ltech M5C Mini Remote control?

The Ltech M5C Mini Remote is designed to control RGBCW lighting functions through compatible controllers in the MINI series ecosystem. It supports on/off control, brightness adjustment, color temperature changes, static RGB color selection, dynamic mode effects, and scene recall.

Does the M5C support multi-zone control?

Yes, the M5C supports multi-zone control. One remote can manage multiple zones, and multiple controllers can be assigned to the same zone for grouped control.

What wireless technology does the M5C use, and what is its range?

This model uses RF 2.4GHz wireless transmission technology. Its control distance can reach up to 30 meters under no-interference conditions.

What kind of battery does the Ltech M5C Mini Remote use?

The M5C operates on 3Vdc using one CR2032 button battery. Its standby current is listed as less than 2uA, which helps minimize idle power draw.

Is the M5C suitable for demanding temperature environments?

The remote is rated for operation from -30°C to 55°C. That makes it suitable for a wide range of commercial and architectural lighting environments within that temperature window.

What are the size and finish of the Ltech M5C Mini Remote?

The M5C comes in a white finish. The remote measures 104 x 58 x 9 mm, and the remote with holder measures 108 x 63 x 14 mm.
