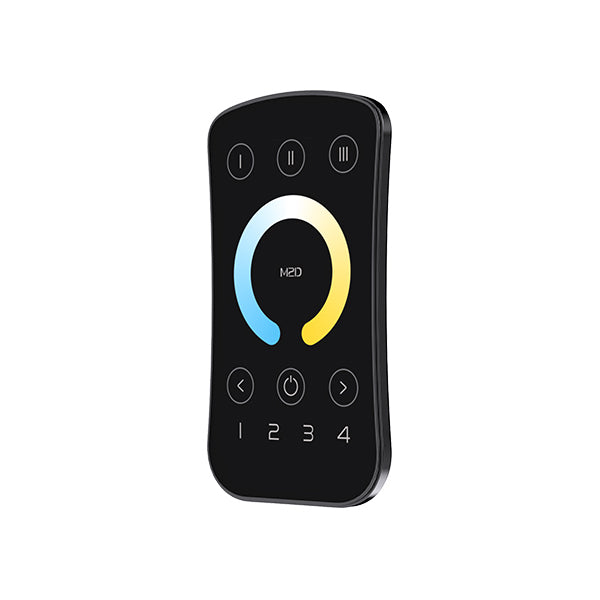

Ltech M2D Mini Remote - Tunable White, Multi-Zone - Black Finish
Please Login for Pricing
Description
Description
Features:
The MINI series LED remotes use RF 2.4GHz wireless transmission technology and the control distance (under no interference) can be up to 30 meters.
Connect to a P5 controller with 5 channel outputs which supports DIM/CT/RGB/RGBW/RGBCW light. One remote can control a large amount of controllers within the effective range to achieve different functions, such as turning lights on/off,adjusting brightness, CT, static RGB color, effects of dynamic modes, and recalling scenes, which meet the needs of users for different lighting applications.
Zone control is supported and one remote can control multiple zones. Multiple controllers can be paired with one zone to achieve group control in this zone. A single press on ON/OFF button allows you to turn on/off all zone lights at the same time.
General Specification
Model
M2D
Color
Black
Dimming mode
CT
Wireless protocol
RF 2.4GHz
Working voltage
3Vdc (Button battery Cr2032×1)
Standby current
<2uA
Distance of remote
30M (Under no interference)
Working temp
-30°C~55°C
Weight
40g±10g
Dimensions
104×58×9mm (Remote), 108×63×14mm (Remote + Holder)
Specifications
Specifications
-
BrandLtech
-
SeriesLtech WIFI Series
-
Output Voltage3 Volt
-
Rated Current0 Ampere
-
Standards MetCE,FC,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~55°C
-
Warranty5 Year
-
Length10.4 cm
-
Width5.8 cm
-
Height0.9 cm
-
Weight0.01 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What does the Ltech M2D Mini Remote control?
The Ltech M2D is a tunable white RF remote designed for CT lighting control. It provides on/off control, brightness adjustment, color temperature adjustment, and scene recall when used with a compatible controller system.
Is the M2D a multi-zone remote?
Yes. The M2D supports zone control, so one remote can manage multiple lighting zones. Multiple controllers can also be assigned to the same zone for grouped control.
What wireless technology and range does the M2D use?
This model uses RF 2.4GHz wireless transmission technology. Its control distance is up to 30 meters under no-interference conditions.
Is the Ltech M2D compatible with RGB or RGBW lighting control?
No. The M2D is specified with a CT dimming mode, which makes it appropriate for tunable white control rather than full-color RGB or RGBW control. Buyers needing color control should look for a remote designed for those lighting modes.
What controller family is this remote intended to work with?
The product description states that the M2D is used with an Ltech P5 controller platform. The P5 series supports multiple lighting types, while this specific remote model is intended for CT control functions.
What power source does the M2D remote use?
The remote operates at 3Vdc and uses one CR2032 button battery. Its standby current is specified as less than 2uA.
Is the M2D suitable for demanding commercial environments?
It is rated for operation from -30°C to 55°C, which supports use across a wide range of indoor or protected project environments. That temperature range can be useful for commercial applications where conditions vary more than in typical residential spaces.
