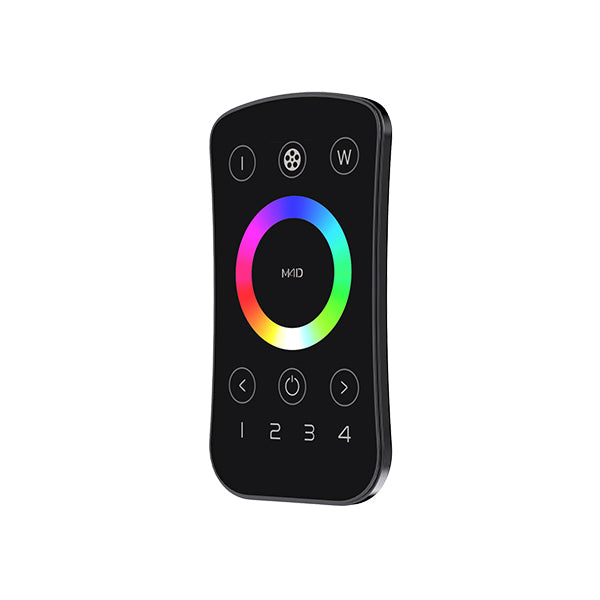

Ltech M4D Mini Remote - RGBW, Multi-Zone - Black Finish
Please Login for Pricing
Description
Description
Features:
The MINI series LED remotes use RF 2.4GHz wireless transmission technology and the control distance (under no interference) can be up to 30 meters.
Connect to a P5 controller with 5 channel outputs which supports DIM/CT/RGB/RGBW/RGBCW light. One remote can control a large amount of controllers within the effective range to achieve different functions, such as turning lights on/off,adjusting brightness, CT, static RGB color, effects of dynamic modes, and recalling scenes, which meet the needs of users for different lighting applications.
Zone control is supported and one remote can control multiple zones. Multiple controllers can be paired with one zone to achieve group control in this zone. A single press on ON/OFF button allows you to turn on/off all zone lights at the same time.
General Specification
Model
M4D
Color
Black
Dimming mode
RGBW
Wireless protocol
RF 2.4GHz
Working voltage
3Vdc (Button battery Cr2032×1)
Standby current
<2uA
Distance of remote
30M (Under no interference)
Working temp
-30°C~55°C
Weight
40g±10g
Dimensions
104×58×9mm (Remote), 108×63×14mm (Remote + Holder)
Specifications
Specifications
-
BrandLtech
-
SeriesLtech WIFI Series
-
Output Voltage3 Volt
-
Rated Current0 Ampere
-
Standards MetCE,FC,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~55°C
-
Warranty5 Year
-
Length10.4 cm
-
Width5.8 cm
-
Height0.9 cm
-
Weight0.01 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Ltech M4D Mini Remote designed to control?
The Ltech M4D Mini Remote is designed for RGBW lighting control in systems that use compatible Ltech controllers. It supports functions such as on/off control, brightness adjustment, static RGB color selection, dynamic mode effects, and scene recall. This makes it suitable for multi-zone commercial or architectural LED lighting applications.
Does the M4D support multi-zone lighting control?
Yes, the M4D supports multi-zone control. One remote can control multiple zones, and multiple controllers can be paired within a zone for grouped operation. It also allows all zone lights to be turned on or off together with a single press.
What wireless range does the M4D Mini Remote offer?
The M4D uses RF 2.4GHz wireless communication with a control distance of up to 30 meters under no interference. Actual performance depends on the surrounding environment and sources of signal obstruction or interference. For open indoor spaces, it is intended to provide convenient remote operation across a broad area.
What kind of environment can this remote operate in?
This model is rated for working temperatures from -30°C to 55°C. That range makes it suitable for a wide variety of indoor and protected commercial environments where temperature conditions can vary. Buyers should still confirm that the full lighting system is appropriate for the intended site conditions.
What are the power requirements for the Ltech M4D remote?
The M4D operates at 3V DC and uses one CR2032 button battery. Its standby current is listed as less than 2uA, which supports very low idle power consumption. This is useful for applications where long battery life is important.
Is the M4D compatible with all LED controllers?
No, this remote is not a universal LED remote. The product description specifically references compatibility with a P5 controller and support for control of compatible Ltech controller systems handling DIM, CT, RGB, RGBW, and RGBCW lighting. Buyers should confirm model compatibility within the Ltech ecosystem before purchasing.
