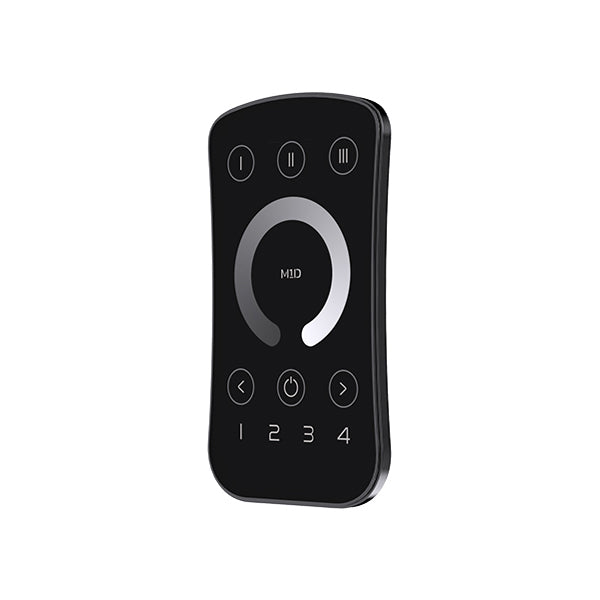

Ltech M1D Mini Remote - Single Colour Dimming, Multi-Zone - Black F...
Please Login for Pricing
Description
Description
Features:
The MINI series LED remotes use RF 2.4GHz wireless transmission technology and the control distance (under no interference) can be up to 30 meters.
Connect to a P5 controller with 5 channel outputs which supports DIM/CT/RGB/RGBW/RGBCW light. One remote can control a large amount of controllers within the effective range to achieve different functions, such as turning lights on/off,adjusting brightness, CT, static RGB color, effects of dynamic modes, and recalling scenes, which meet the needs of users for different lighting applications.
Zone control is supported and one remote can control multiple zones. Multiple controllers can be paired with one zone to achieve group control in this zone. A single press on ON/OFF button allows you to turn on/off all zone lights at the same time.
General Specification
Model
M1D
Color
Black
Dimming mode
DIM
Wireless protocol
RF 2.4GHz
Working voltage
3Vdc (Button battery Cr2032×1)
Standby current
<2uA
Distance of remote
30M (Under no interference)
Working temp
-30°C~55°C
Weight
40g±10g
Dimensions
104×58×9mm (Remote), 108×63×14mm (Remote + Holder)
Specifications
Specifications
-
BrandLtech
-
SeriesLtech WIFI Series
-
Output Voltage3 Volt
-
Rated Current0 Ampere
-
Standards MetCE,FC,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~55°C
-
Warranty5 Year
-
Length10.4 cm
-
Width5.8 cm
-
Height0.9 cm
-
Weight0.01 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Ltech M1D Mini Remote used for?
The Ltech M1D is a handheld RF remote designed for single colour dimming control. It is intended for use in lighting applications where you want wireless on/off control, brightness adjustment, and multi-zone operation from one compact remote.
Does the Ltech M1D support multi-zone control?
Yes. The M1D supports zone control, so one remote can control multiple zones. It can also control multiple paired controllers within a zone for grouped lighting control.
What wireless technology and range does the M1D use?
This model uses RF 2.4GHz wireless transmission technology. Its control distance is up to 30 meters under no interference, which suits many indoor commercial and architectural lighting environments.
Is the Ltech M1D compatible with all LED controller types?
The product description states that it connects to a P5 controller with 5 channel outputs. While the P5 platform supports DIM, CT, RGB, RGBW, and RGBCW light, the M1D itself is specifically a DIM remote for single colour dimming applications.
What power source does the M1D remote use?
The M1D operates on 3Vdc using one CR2032 button battery. Its standby current is listed as less than 2uA, which supports very low idle power consumption.
Can the Ltech M1D be used in demanding temperature conditions?
The specified working temperature range is -30°C to 55°C. That makes it suitable for a wide range of indoor and some controlled-environment commercial applications, provided conditions stay within that range.
How compact is the Ltech M1D Mini Remote?
The remote itself measures 104×58×9mm, with the remote and holder measuring 108×63×14mm. Its compact format and black finish make it a discreet option for professional lighting control setups.
