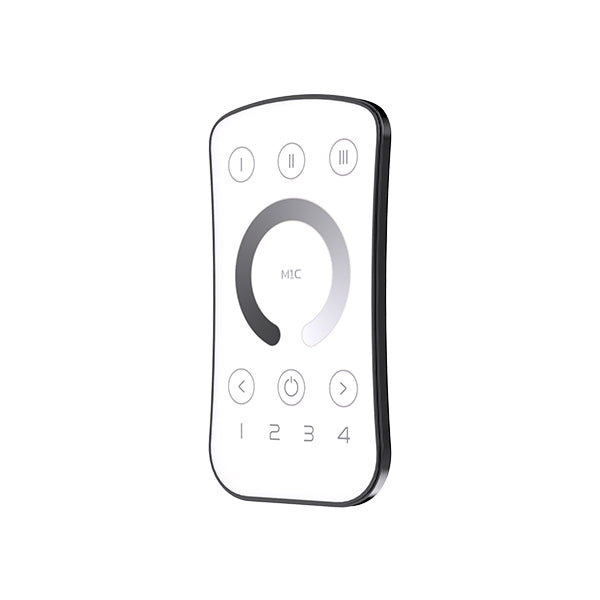

Ltech M1C Mini Remote - Single Colour Dimming, Multi-Zone - White F...
Please Login for Pricing
Description
Description
Features:
The MINI series LED remotes use RF 2.4GHz wireless transmission technology and the control distance (under no interference) can be up to 30 meters.
Connect to a P5 controller with 5 channel outputs which supports DIM/CT/RGB/RGBW/RGBCW light. One remote can control a large amount of controllers within the effective range to achieve different functions, such as turning lights on/off,adjusting brightness, CT, static RGB color, effects of dynamic modes, and recalling scenes, which meet the needs of users for different lighting applications.
Zone control is supported and one remote can control multiple zones. Multiple controllers can be paired with one zone to achieve group control in this zone. A single press on ON/OFF button allows you to turn on/off all zone lights at the same time.
General Specification
Model
M1C
Color
White
Dimming mode
DIM
Wireless protocol
RF 2.4GHz
Working voltage
3Vdc (Button battery Cr2032×1)
Standby current
<2uA
Distance of remote
30M (Under no interference)
Working temp
-30°C~55°C
Weight
40g±10g
Dimensions
104×58×9mm (Remote), 108×63×14mm (Remote + Holder)
Specifications
Specifications
-
BrandLtech
-
SeriesLtech WIFI Series
-
Output Voltage3 Volt
-
Rated Current0 Ampere
-
Standards MetCE,FC,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~55°C
-
Warranty5 Year
-
Length10.4 cm
-
Width5.8 cm
-
Height0.9 cm
-
Weight0.01 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What does the Ltech M1C Mini Remote control?
The M1C is a single-colour dimming remote for lighting systems that use DIM control. It is designed for brightness control, on/off operation, multi-zone use, and scene recall when paired with a compatible controller setup. This model is not described as a colour-changing RGB remote.
Does the M1C support multi-zone control?
Yes. The M1C supports zone control, and one remote can control multiple zones. Multiple controllers can also be paired into one zone for grouped control, and the ON/OFF button can switch all zone lights on or off together.
What wireless range does the Ltech M1C have?
The specified remote distance is up to 30 meters under no interference. Actual usable range depends on the environment, since obstructions and wireless interference can reduce performance. For product comparison, 30 meters is the stated maximum operating distance for this model.
Is the M1C suitable for commercial or multi-area lighting control?
Yes, it is a practical option for multi-area dimming where grouped control is useful. Its multi-zone capability makes it suitable for spaces that need separate lighting groups managed from one handheld remote. This fits B2B environments that want simple single-colour dimming control rather than advanced colour adjustment.
What type of controller is the M1C compatible with?
The product description states that the M1C connects to a P5 controller with 5 channel outputs. The broader controller platform supports DIM, CT, RGB, RGBW, and RGBCW light, while the M1C itself is specified for DIM mode. For this model, the safe compatibility takeaway is that it is intended for use with a compatible P5 controller setup.
What power source does the Ltech M1C use?
The M1C operates on 3V DC using one CR2032 button battery. Its standby current is specified as less than 2uA, which supports very low idle power consumption. This is a battery-powered handheld remote, not a mains-powered wall controller.
Can the M1C be used in demanding temperature conditions?
The stated working temperature range is -30°C to 55°C. That gives it a broad operating range for many indoor and controlled-environment commercial applications. Suitability still depends on the full installation environment, but those are the published limits for this model.
