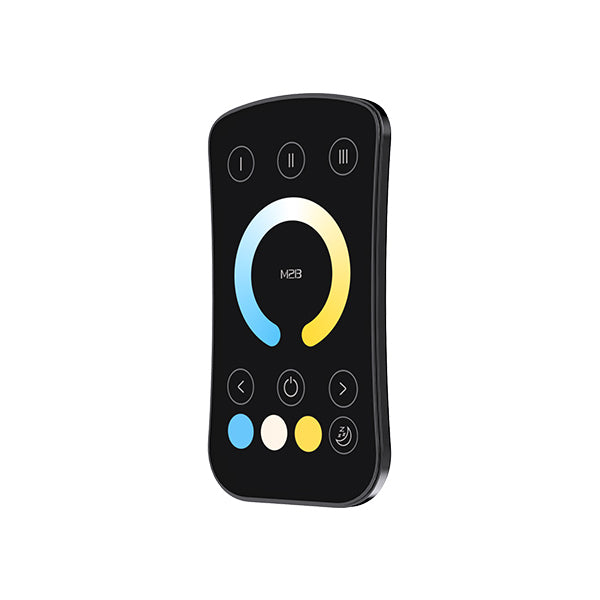

Ltech M2B Mini Remote - Tunable White, Single Zone - Black Finish
Log in to see priceOverview
The MINI series LED remotes use RF 2.4GHz wireless transmission technology and the control distance (under no interference) can be up to 30 meters. Connect to a P5 controller with 5 channel outputs which supports DIM/CT/RGB/RGBW/RGBCW light. One remote can control a large amount of controllers within the effective range to achieve different functions, such as turning lights on/off, adjusting brightness, CT, static RGB color, effects of dynamic modes, and recalling scenes, which meet the needs of users for different lighting applications. Dimming remote (M1A/M1B) has brightness shortcuts that allow you to switch the brightness percentage with one press; CT remote (M2A/M2B) has the night light function that allows you to switch to low brightness with one press; RGBW remote (M4A/M4B) and RGBCW remote (M5A/M5B) allow you to switch dynamic modes through the mode button, as well as to loop playing the effects of 12 modes through pressing different buttons together.
Specifications
Technical parameters
- Color
- Black
- Dimming mode
- CT
- Wireless protocol
- RF 2.4GHz
- Working voltage
- 3Vdc (Button battery Cr2032×1)
- Standby current
- <2uA
- Distance of remote
- 30M (Under no interference)
- Working temp.
- -30°C~55°C
- Weight
- 40g±10g
- Dimensions
- 104×58×9mm (Remote), 108×63×14mm (Remote + Holder)
Others
- Warranty periods
- 5 years
Certifications & ratings
- Certification marks
- CE, FCC, RoHS
Technical drawings
Downloads
Datasheet1
FAQ
What is the Ltech M2B Mini Remote designed to control?
The Ltech M2B Mini Remote is designed for tunable white lighting control. It supports CT dimming functions such as turning lights on or off, adjusting brightness, and changing color temperature when used with compatible controllers.
What wireless technology does the M2B use, and what is its range?
This model uses RF 2.4GHz wireless transmission technology. Under no interference, the remote control distance can reach up to 30 meters.
Is the M2B a multi-zone remote?
No. The product name identifies the M2B as a single-zone remote, making it suited to applications where one lighting zone is controlled from one handheld remote.
What type of lighting control mode does the M2B support?
The M2B supports CT dimming mode, which is used for tunable white lighting. It is intended for applications where users want to adjust both brightness and white color temperature.
Can the M2B be used in commercial or large-scale lighting areas?
Yes. The M2B uses RF 2.4GHz wireless technology with a range of up to 30 meters, allowing it to control compatible controllers within that distance. It is suitable for various lighting control scenarios where wireless flexibility is needed.
What are the battery and power requirements for the M2B remote?
The M2B operates at 3Vdc and uses one CR2032 button battery. Its standby current is listed as less than 2uA, supporting very low idle power consumption.
What environments is the M2B rated for?
The remote has a working temperature range of -30°C to 55°C. That gives it a relatively wide operating range for indoor control environments where temperature conditions may vary.
