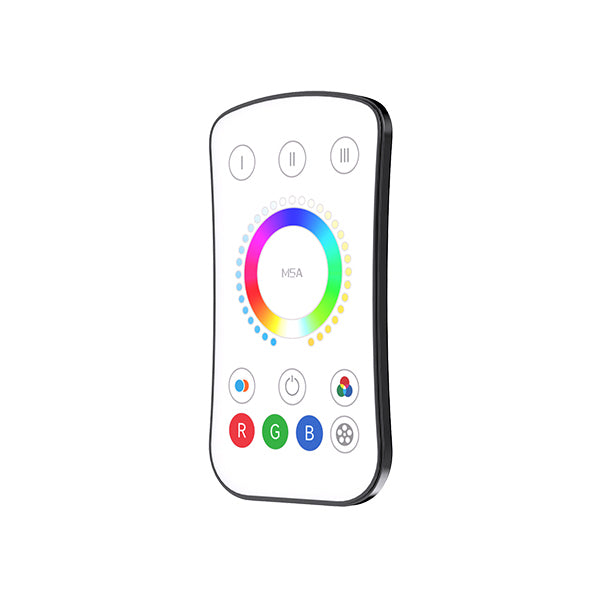

Ltech M5A Mini Remote - RGBCW, Single Zone - White Finish
Please Login for Pricing
Description
Description
Features:
The MINI series LED remotes use RF 2.4GHz wireless transmission technology and the control distance (under no interference) can be up to 30 meters.
Connect to a P5 controller with 5 channel outputs which supports DIM/CT/RGB/RGBW/RGBCW light. One remote can control a large amount of controllers within the effective range to achieve different functions, such as turning lights on/off, adjusting brightness, CT, static RGB color, effects of dynamic modes, and recalling scenes, which meet the needs of users for different lighting applications
Dimming remote (M1A/M1B) has brightness shortcuts that allow you to switch the brightness percentage with one press; CT remote (M2A/M2B) has the night light function that allows you to switch to low brightness with one press; RGBW remote (M4A/M4B) and RGBCW remote (M5A/M5B) allow you to switch dynamic modes through the mode button, as well as to loop playing the effects of 12 modes through pressing different buttons together.
General Specification
Model
M5A
Color
White
Dimming mode
RGBCW
Wireless protocol
RF 2.4GHz
Working voltage
3Vdc (Button battery Cr2032×1)
Standby current
<2uA
Distance of remote
30M (Under no interference)
Working temp
-30°C~55°C
Weight
40g±10g
Dimensions
104×58×9mm (Remote), 108×63×14mm (Remote + Holder)
Specifications
Specifications
-
BrandLtech
-
SeriesLtech WIFI Series
-
Output Voltage3 Volt
-
Rated Current0 Ampere
-
Standards MetCE,FC,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~55°C
-
Warranty5 Year
-
Length10.4 cm
-
Width5.8 cm
-
Height0.9 cm
-
Weight0.01 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What does the Ltech M5A Mini Remote control?
The Ltech M5A is designed for RGBCW lighting control. It can handle functions such as on/off control, brightness adjustment, color temperature adjustment, static RGB color selection, dynamic modes, and scene recall when used with a compatible controller.
Is the M5A a single-zone remote?
Yes, the M5A is a single-zone remote. It is intended for controlling one lighting zone rather than managing multiple independent zones from the same handset.
What wireless technology and range does the M5A use?
The M5A uses RF 2.4GHz wireless transmission technology. Its control distance can reach up to 30 meters under no-interference conditions.
Which controller type is this remote compatible with?
This model is described for use with an Ltech P5 controller with 5-channel outputs. That controller platform supports DIM, CT, RGB, RGBW, and RGBCW lighting modes, while the M5A itself is specifically an RGBCW remote.
Can the M5A be used in demanding commercial or industrial environments?
The M5A has a working temperature range of -30°C to 55°C, which makes it suitable for a wide range of indoor operating conditions. Buyers should still confirm that the surrounding environment stays within that specified temperature range.
How is the M5A powered?
The remote operates at 3V DC using one CR2032 button battery. Its listed standby current is less than 2uA, which is designed for very low idle power draw.
