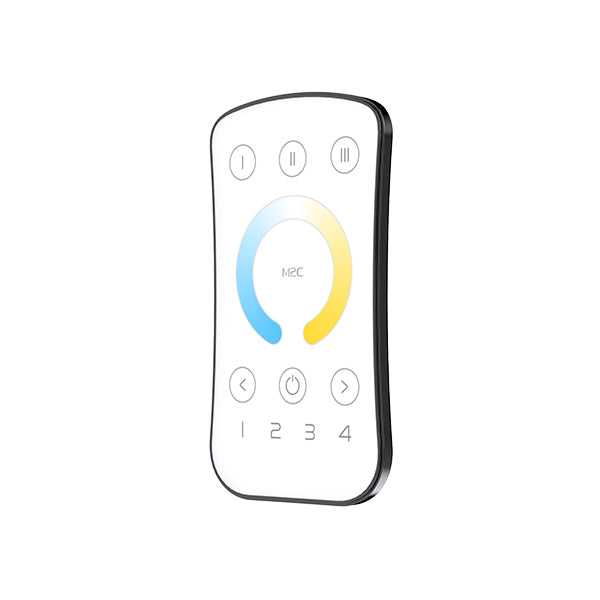

Ltech M2C Mini Remote - Tunable White, Multi-Zone - White Finish
Log in to see priceOverview
The MINI series LED remotes use RF 2.4GHz wireless transmission technology and the control distance (under no interference) can be up to 30 meters. Connect to a P5 controller with 5 channel outputs which supports DIM/CT/RGB/RGBW/RGBCW light. One remote can control a large amount of controllers within the effective range to achieve different functions, such as turning lights on/off,adjusting brightness, CT, static RGB color, effects of dynamic modes, and recalling scenes, which meet the needs of users for different lighting applications. Zone control is supported and one remote can control multiple zones. Multiple controllers can be paired with one zone to achieve group control in this zone. A single press on ON/OFF button allows you to turn on/off all zone lights at the same time.
Specifications
Technical parameters
- Color
- White
- Dimming mode
- CT
- Wireless protocol
- RF 2.4GHz
- Working voltage
- 3Vdc(Button battery CR2032×1)
- Standby current
- <2uA
- Distance of remote
- 30M (Under no interference)
- Working temp.
- -30°C~55°C
- Weight
- 40g±10g
- Dimensions
- 104×58×9mm (Remote), 108×63×14mm (Remote + Holder)
Others
- Warranty periods
- 5 years
Certifications & ratings
- Certification marks
- CE, FCC, RoHS
Technical drawings
Downloads
Datasheet1
FAQ
What type of lighting is the Ltech M2C Mini Remote designed to control?
The Ltech M2C is a tunable white remote intended for CT lighting control. It is designed for applications where users need to adjust brightness and color temperature within a compatible multi-zone lighting system.
Does the M2C support multi-zone control?
Yes. The M2C supports zone control, so one remote can manage multiple zones, and multiple controllers can be grouped into the same zone for synchronized control. It also allows all paired zone lights to be turned on or off together.
What is the wireless range of the Ltech M2C remote?
The M2C uses RF 2.4GHz wireless transmission technology with a control distance of up to 30 meters under no interference. Actual range can be affected by surrounding conditions and signal obstruction.
Which controller is this remote intended to work with?
The M2C is a remote for the Ltech MINI series RF 2.4GHz ecosystem. It is designed to work with compatible Ltech controllers that support tunable white (CT) control. Ensure your controller matches this protocol and feature set before purchase.
Is the Ltech M2C suitable for commercial or project-based lighting use?
Yes. Its multi-zone capability and ability to control multiple paired controllers within range make it well suited for commercial spaces, display lighting, and other projects that need grouped tunable white control. It is a good fit where simple handheld control across more than one zone is required.
What are the power and battery requirements for the M2C remote?
The remote operates at 3Vdc and uses one CR2032 button battery. Its standby current is specified as less than 2uA, which supports low idle power consumption.
Can the Ltech M2C be used in demanding temperature conditions?
The specified working temperature range is -30°C to 55°C. That makes it suitable for a wide range of indoor and some controlled-environment commercial applications, provided the rest of the lighting system is rated appropriately.
