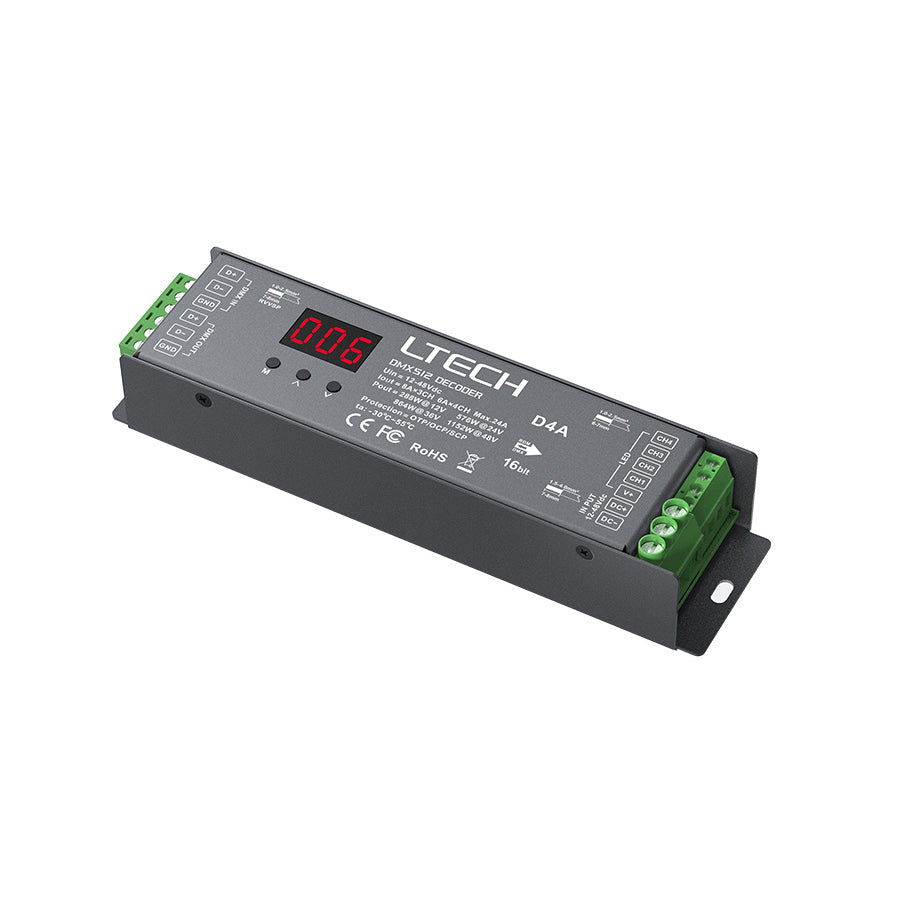

Ltech D4A Constant Voltage 4 Channel DMX/RDM Decoder, 12-48V, 24A, ...
Log in to see priceThe Ltech D4A is a constant voltage DMX/RDM decoder for LED control systems. It provides 4-channel output and is designed for dimming and control of compatible constant voltage LED lighting loads. the D4A includes a digital display for local parameter and address adjustment.
Input 12~48VDC. 4 channels at 6A each. Operating temperature -25~+55°C. Backed by a 5 year warranty.
Key Features
- ✓Input voltage: 12~48VDC
- ✓Control protocol: dimmable
- ✓Output signal: DMX Signal
- ✓Output channels: 6A - 4 Channel
- ✓Maximum load: 6A per channel
- ✓Maximum total load: 288W
- ✓Operating temperature: -25~+55°C
- ✓Certifications: CE, FC, ROHS
- ✓Dimensions: 175 x 46 x 30mm
- ✓5 year warranty
-
BrandLtech
-
SeriesLtech WIFI Series
-
Power Rating288 Watt
-
Output Voltage12 Volt
-
Rated Current24 Ampere
-
Input Voltage12V~48V
-
Standards MetCE,FC,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~55°C
-
Warranty5 Year
-
Length17.5 cm
-
Width4.6 cm
-
Height3 cm
-
Weight0.01 kg
::specification::
Frequently Asked Questions
What does the Ltech D4A do?
The Ltech D4A is a constant voltage DMX/RDM decoder for LED control systems. It provides 4-channel output and is designed for dimming and control of compatible constant voltage LED lighting loads. This model includes a digital display for local parameter and address adjustment.
Is the D4A compatible with both DMX512 and RDM systems?
Yes. The D4A supports standard DMX512 input and also supports RDM, which allows parameter browsing and DMX address changes through an RDM master. It can also switch between DMX mode and customized mode.
What voltage and output capacity does the D4A support?
The D4A is designed for 12-48V constant voltage systems. Its maximum total output current is 24A, with rated output listed as 8A x 3 channels or 6A x 4 channels. Output power is rated up to 288W at 12V, 576W at 24V, 864W at 36V, and 1152W at 48V.
What dimming and performance options are available on this model?
The D4A supports 0-100% dimming and offers both 16-bit and 8-bit grayscale options. It also provides standard and smooth dimming modes, along with selectable PWM frequencies from 300Hz up to 18000Hz. These options make it suitable for applications that need either broad compatibility or finer dimming performance.
What kinds of LED control applications is the D4A suited for?
This model is suited for multi-channel constant voltage LED control where DMX or RDM integration is required. Its configurable 1/2/3/4 channel output and built-in lighting effects make it useful for architectural, display, and commercial lighting projects. It is positioned more as a control component for professional LED systems than as a basic single-function dimmer.
What is the difference between the D4A and D4B versions?
The product description states that the D4A uses a green terminal DMX interface, while the D4B uses an RJ45 DMX interface. The distinction given here is the DMX signal port style rather than a change in output class or control protocol. If port format matters for your system standard, that is the key comparison point between these two versions.
Is the D4A suitable for demanding operating environments?
The listed working temperature range is -25°C to 55°C, which supports use in a wide range of indoor or protected commercial environments. The unit also includes short circuit, over-temperature, and over-current protection with auto recovery. In addition, it carries CE and FCC Part 15 Class B compliance information in the provided specifications.
What warranty is listed for the Ltech D4A?
The provided product data lists a 5-year warranty period for this model. That makes it a longer-term component choice for commercial LED control applications. Buyers should still confirm any seller-specific warranty terms at the time of purchase.
