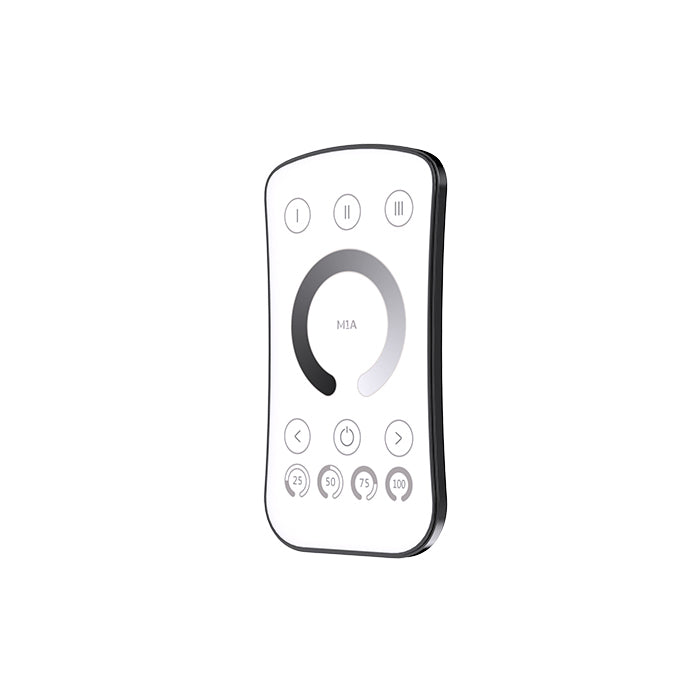

Ltech M1A Mini Remote - Single Colour Dimming, Single Zone - White ...
Log in to see priceThe Ltech M1A is a single-colour dimming remote for lighting applications that use DIM control. It is intended for use with compatible Ltech controllers and is designed for single-zone operation. the M1A focuses on brightness control rather than colour-changing functions.
4 channels at 3A each. Operating temperature -30~+55°C. Backed by a 5 year warranty.
Key Features
- ✓Control protocol: dimmable
- ✓Output signal: PWM
- ✓Output channels: 3A - 4 Channel
- ✓Maximum load: 3A per channel
- ✓Operating temperature: -30~+55°C
- ✓Certifications: CE, FC, ROHS
- ✓Dimensions: 104 x 58 x 9mm
- ✓5 year warranty
-
BrandLtech
-
SeriesLtech WIFI Series
-
Output Voltage3 Volt
-
Rated Current0 Ampere
-
Standards MetCE,FC,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~55°C
-
Warranty5 Year
-
Length10.4 cm
-
Width5.8 cm
-
Height0.9 cm
-
Weight0.01 kg
::specification::
Frequently Asked Questions
What is the Ltech M1A Mini Remote designed to control?
The Ltech M1A is a single-colour dimming remote for lighting applications that use DIM control. It is intended for use with compatible Ltech controllers and is designed for single-zone operation. This model focuses on brightness control rather than colour-changing functions.
Is the M1A a multi-zone remote?
No. This model is a single-zone remote, so it is intended to control one zone rather than multiple independent zones from the same handset. That makes it a straightforward choice for smaller or dedicated single-area lighting control.
What makes the M1A different from other LED remotes?
The M1A is specifically a dimming remote with brightness shortcut buttons that let you switch to preset brightness percentages with a single press. It is not described as a colour temperature or RGB remote, so it is best suited to single-colour dimming applications. Its compact MINI-series format is also designed for simple handheld use.
What wireless range does the Ltech M1A support?
The M1A uses RF 2.4GHz wireless transmission technology. Its stated control distance is up to 30 metres under no-interference conditions. Actual usable range can vary if the environment introduces interference.
Which controller family is this remote compatible with?
The product description identifies the M1A as pairing with an Ltech P5 controller. The P5 supports multiple lighting control types, but the M1A itself is the DIM version intended for single-colour dimming use. Buyers should match it with a compatible Ltech control setup rather than treating it as a universal remote.
Can the M1A be used in demanding temperature conditions?
This remote has a stated working temperature range of -30°C to 55°C. That gives it a broad operating window for many commercial and architectural environments. As with any control device, it should still be used within its specified limits.
What power source does the Ltech M1A use?
The M1A operates at 3V DC and uses one CR2032 button battery. Its standby current is specified as less than 2uA, which reflects very low idle power draw. This battery-powered format supports its slim handheld design.
