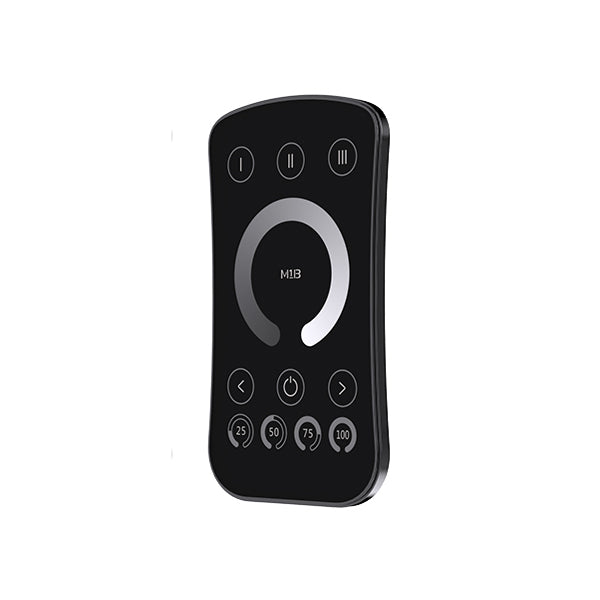

Ltech M1B Mini Remote - Single Colour Dimming, Single Zone - Black Finish

RF 2.4GHz30m signal distancebattery(CR2032) needed
SKU M1B
Log in to see price Trade pricing & online ordering for account holders
Available to order
|

Overview

The MINI series LED remotes use RF 2.4GHz wireless transmission technology and the control distance (under no interference) can be up to 30 meters. Connect to a P5 controller with 5 channel outputs which supports DIM/CT/RGB/RGBW/RGBCW light. One remote can control a large amount of controllers within the effective range to achieve different functions, such as turning lights on/off, adjusting brightness, CT, static RGB color, effects of dynamic modes, and recalling scenes, which meet the needs of users for different lighting applications. Dimming remote (M1A/M1B) has brightness shortcuts that allow you to switch the brightness percentage with one press; CT remote (M2A/M2B) has the night light function that allows you to switch to low brightness with one press; RGBW remote (M4A/M4B) and RGBCW remote (M5A/M5B) allow you to switch dynamic modes through the mode button, as well as to loop playing the effects of 12 modes through pressing different buttons together.

Specifications

M1BSpecifications from the official datasheetDownload datasheet PDF

Technical parameters

Color
Black
Dimming mode
DIM
Wireless protocol
RF 2.4GHz
Working voltage
3Vdc (Button battery Cr2032×1)
Standby current
<2uA
Distance of remote
30M (Under no interference)
Working temp.
-30°C~55°C
Weight
40g±10g
Dimensions
104×58×9mm (Remote), 108×63×14mm (Remote + Holder)

Others

Warranty periods
5 years

Certifications & ratings

Certification marks
CE, FCC, RoHS

Technical drawings

M1B RBGW remote M4A/M4B
RBGW remote M4A/M4B
M1B Pair the controller with the remote
Pair the controller with the remote

Downloads

FAQ

What does the Ltech M1B Mini Remote control?

The Ltech M1B is a single-colour dimming remote for DIM lighting control. It is designed for adjusting light output, including on/off control and brightness changes, within a single zone.

Is the M1B a multi-zone remote?

No. This model is specified as a single-zone remote, so it is intended to control one lighting zone rather than multiple independent zones. That makes it suitable for straightforward single-area dimming applications.

What wireless technology does the M1B use, and what is its range?

The M1B uses RF 2.4GHz wireless transmission technology. Under no-interference conditions, the remote control distance can reach up to 30 meters.

What kind of lighting is this remote best suited for?

This model is best suited for single-colour LED lighting that needs dimming control. It is a good fit for commercial and professional environments where simple brightness adjustment is more important than colour-changing features.

How is the M1B powered?

The remote operates at 3V DC and uses one CR2032 button battery. Its standby current is listed as less than 2uA, which supports very low idle power consumption.

Can the M1B be used in demanding temperature conditions?

The specified working temperature range is -30°C to 55°C, which makes it suitable for a wide range of indoor and some challenging commercial environments.

What are the size and finish of the Ltech M1B Mini Remote?

The M1B comes in a black finish. The remote measures 104×58×9mm, and the remote with holder measures 108×63×14mm.

How does the M1B differ from colour-control remotes?

The M1B is a DIM-only model, so its role is single-colour brightness control rather than RGB, RGBW, or tunable white colour adjustment. If your project needs colour selection or colour temperature control, a different remote type would be more appropriate.
