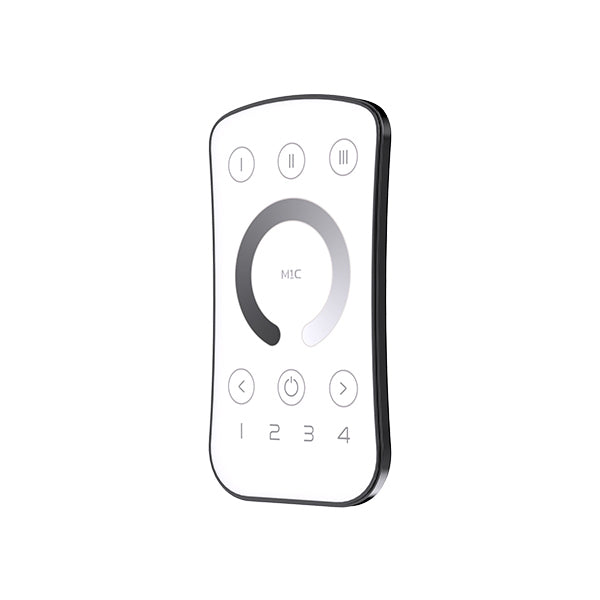

Ltech M1C Mini Remote - Single Colour Dimming, Multi-Zone - White F...
Log in to see priceThe M1C is a single-colour dimming remote for lighting systems that use DIM control. It is designed for brightness control, on/off operation, multi-zone use, and scene recall when paired with a compatible controller setup. the M1C is not described as a colour-changing RGB remote.
4 channels at 3A each. Operating temperature -30~+55°C. Backed by a 5 year warranty.
Key Features
- ✓Control protocol: dimmable
- ✓Output signal: PWM
- ✓Output channels: 3A - 4 Channel
- ✓Maximum load: 3A per channel
- ✓Operating temperature: -30~+55°C
- ✓Certifications: CE, FC, ROHS
- ✓Dimensions: 104 x 58 x 9mm
- ✓5 year warranty
-
BrandLtech
-
SeriesLtech WIFI Series
-
Output Voltage3 Volt
-
Rated Current0 Ampere
-
Standards MetCE,FC,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~55°C
-
Warranty5 Year
-
Length10.4 cm
-
Width5.8 cm
-
Height0.9 cm
-
Weight0.01 kg
::specification::
Frequently Asked Questions
What does the Ltech M1C Mini Remote control?
The M1C is a single-colour dimming remote for lighting systems that use DIM control. It is designed for brightness control, on/off operation, multi-zone use, and scene recall when paired with a compatible controller setup. This model is not described as a colour-changing RGB remote.
Does the M1C support multi-zone control?
Yes. The M1C supports zone control, and one remote can control multiple zones. Multiple controllers can also be paired into one zone for grouped control, and the ON/OFF button can switch all zone lights on or off together.
What wireless range does the Ltech M1C have?
The specified remote distance is up to 30 meters under no interference. Actual usable range depends on the environment, since obstructions and wireless interference can reduce performance. For product comparison, 30 meters is the stated maximum operating distance for this model.
Is the M1C suitable for commercial or multi-area lighting control?
Yes, it is a practical option for multi-area dimming where grouped control is useful. Its multi-zone capability makes it suitable for spaces that need separate lighting groups managed from one handheld remote. This fits B2B environments that want simple single-colour dimming control rather than advanced colour adjustment.
What type of controller is the M1C compatible with?
The product description states that the M1C connects to a P5 controller with 5 channel outputs. The broader controller platform supports DIM, CT, RGB, RGBW, and RGBCW light, while the M1C itself is specified for DIM mode. For this model, the safe compatibility takeaway is that it is intended for use with a compatible P5 controller setup.
What power source does the Ltech M1C use?
The M1C operates on 3V DC using one CR2032 button battery. Its standby current is specified as less than 2uA, which supports very low idle power consumption. This is a battery-powered handheld remote, not a mains-powered wall controller.
Can the M1C be used in demanding temperature conditions?
The stated working temperature range is -30°C to 55°C. That gives it a broad operating range for many indoor and controlled-environment commercial applications. Suitability still depends on the full installation environment, but those are the published limits for this model.
