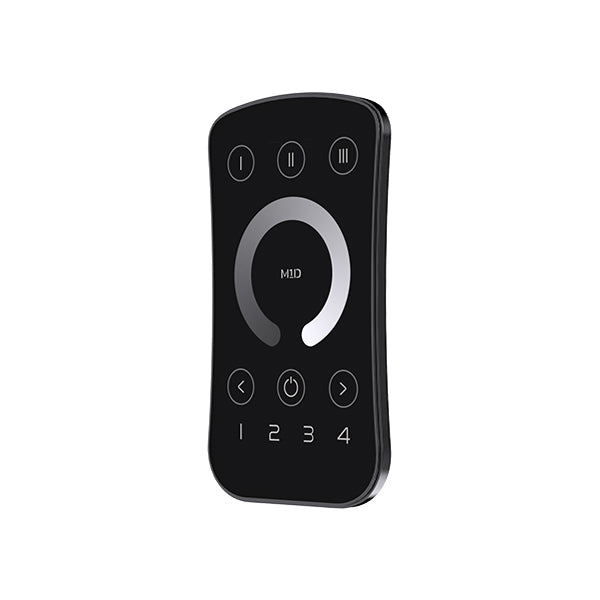

Ltech M1D Mini Remote - Single Colour Dimming, Multi-Zone - Black F...
Log in to see priceThe Ltech M1D is a handheld RF remote designed for single colour dimming control. It is intended for use in lighting applications where you want wireless on/off control, brightness adjustment, and multi-zone operation from one compact remote.
4 channels at 3A each. Operating temperature -30~+55°C. Backed by a 5 year warranty.
Key Features
- ✓Control protocol: dimmable
- ✓Output signal: PWM
- ✓Output channels: 3A - 4 Channel
- ✓Maximum load: 3A per channel
- ✓Operating temperature: -30~+55°C
- ✓Certifications: CE, FC, ROHS
- ✓Dimensions: 104 x 58 x 9mm
- ✓5 year warranty
-
BrandLtech
-
SeriesLtech WIFI Series
-
Output Voltage3 Volt
-
Rated Current0 Ampere
-
Standards MetCE,FC,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~55°C
-
Warranty5 Year
-
Length10.4 cm
-
Width5.8 cm
-
Height0.9 cm
-
Weight0.01 kg
::specification::
Frequently Asked Questions
What is the Ltech M1D Mini Remote used for?
The Ltech M1D is a handheld RF remote designed for single colour dimming control. It is intended for use in lighting applications where you want wireless on/off control, brightness adjustment, and multi-zone operation from one compact remote.
Does the Ltech M1D support multi-zone control?
Yes. The M1D supports zone control, so one remote can control multiple zones. It can also control multiple paired controllers within a zone for grouped lighting control.
What wireless technology and range does the M1D use?
This model uses RF 2.4GHz wireless transmission technology. Its control distance is up to 30 meters under no interference, which suits many indoor commercial and architectural lighting environments.
Is the Ltech M1D compatible with all LED controller types?
The product description states that it connects to a P5 controller with 5 channel outputs. While the P5 platform supports DIM, CT, RGB, RGBW, and RGBCW light, the M1D itself is specifically a DIM remote for single colour dimming applications.
What power source does the M1D remote use?
The M1D operates on 3Vdc using one CR2032 button battery. Its standby current is listed as less than 2uA, which supports very low idle power consumption.
Can the Ltech M1D be used in demanding temperature conditions?
The specified working temperature range is -30°C to 55°C. That makes it suitable for a wide range of indoor and some controlled-environment commercial applications, provided conditions stay within that range.
How compact is the Ltech M1D Mini Remote?
The remote itself measures 104×58×9mm, with the remote and holder measuring 108×63×14mm. Its compact format and black finish make it a discreet option for professional lighting control setups.
