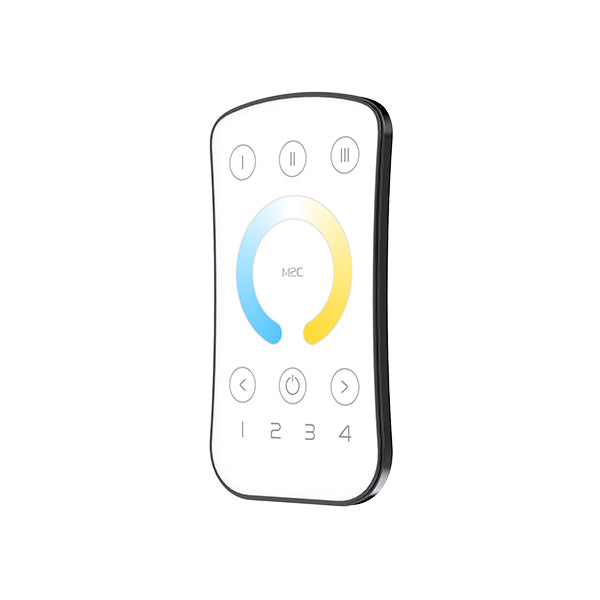

Ltech M2C Mini Remote - Tunable White, Multi-Zone - White Finish
Log in to see priceThe Ltech M2C is a tunable white remote intended for CT lighting control. It is designed for applications where users need to adjust brightness and color temperature within a compatible multi-zone lighting system.
4 channels at 3A each. Operating temperature -30~+55°C. Backed by a 5 year warranty.
Key Features
- ✓Control protocol: dimmable
- ✓Output signal: PWM
- ✓Output channels: 3A - 4 Channel
- ✓Maximum load: 3A per channel
- ✓Operating temperature: -30~+55°C
- ✓Certifications: CE, FC, ROHS
- ✓Dimensions: 104 x 58 x 9mm
- ✓5 year warranty
-
BrandLtech
-
SeriesLtech WIFI Series
-
Output Voltage3 Volt
-
Rated Current0 Ampere
-
Standards MetCE,FC,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~55°C
-
Warranty5 Year
-
Length10.4 cm
-
Width5.8 cm
-
Height0.9 cm
-
Weight0.01 kg
::specification::
Frequently Asked Questions
What type of lighting is the Ltech M2C Mini Remote designed to control?
The Ltech M2C is a tunable white remote intended for CT lighting control. It is designed for applications where users need to adjust brightness and color temperature within a compatible multi-zone lighting system.
Does the M2C support multi-zone control?
Yes. The M2C supports zone control, so one remote can manage multiple zones, and multiple controllers can be grouped into the same zone for synchronized control. It also allows all paired zone lights to be turned on or off together.
What is the wireless range of the Ltech M2C remote?
The M2C uses RF 2.4GHz wireless transmission technology with a control distance of up to 30 meters under no interference. Actual range can be affected by surrounding conditions and signal obstruction.
Which controller is this remote intended to work with?
This model is described as connecting to an Ltech P5 controller. Buyers should confirm their controller supports tunable white control and matches the MINI series RF 2.4GHz ecosystem before purchase.
Is the Ltech M2C suitable for commercial or project-based lighting use?
Yes. Its multi-zone capability and ability to control multiple paired controllers within range make it well suited for commercial spaces, display lighting, and other projects that need grouped tunable white control. It is a good fit where simple handheld control across more than one zone is required.
What are the power and battery requirements for the M2C remote?
The remote operates at 3Vdc and uses one CR2032 button battery. Its standby current is specified as less than 2uA, which supports low idle power consumption.
Can the Ltech M2C be used in demanding temperature conditions?
The specified working temperature range is -30°C to 55°C. That makes it suitable for a wide range of indoor and some controlled-environment commercial applications, provided the rest of the lighting system is rated appropriately.
