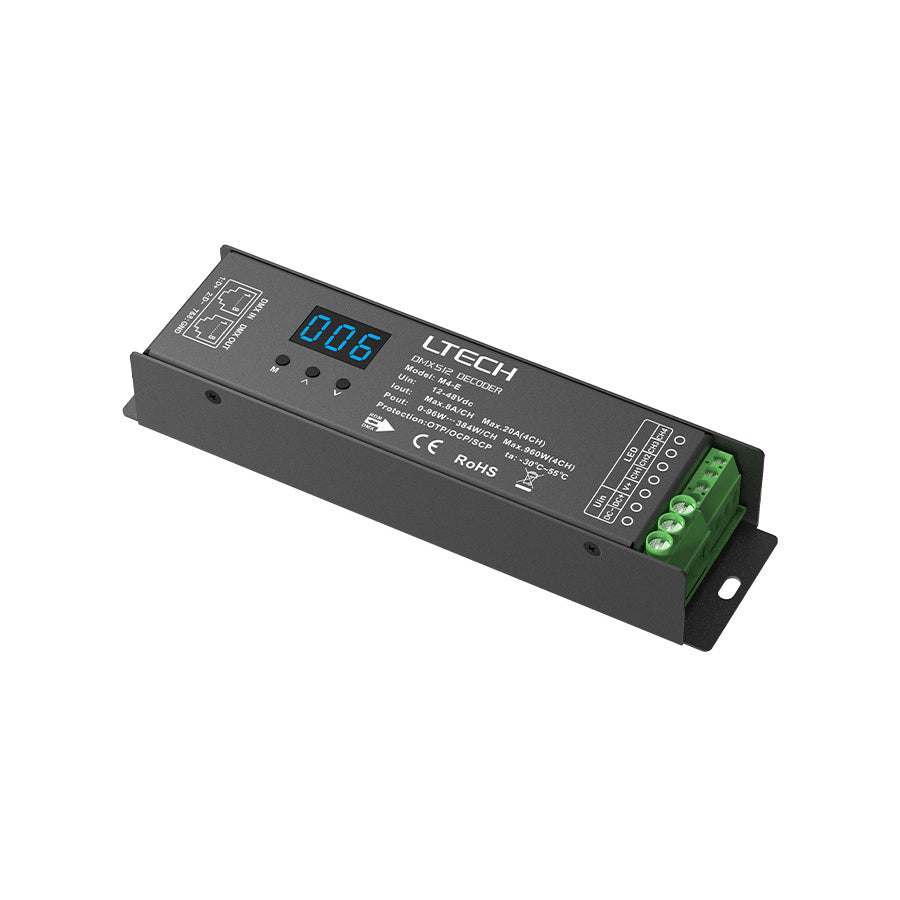

Ltech M4-E Constant Voltage 4 Channel DMX/RDM Decoder, 12-48V, 24A,...
Log in to see priceThe Ltech M4-E is a constant voltage 4-channel DMX/RDM decoder for low-voltage LED lighting systems. It accepts 12-48V input and provides PWM dimming control for constant-voltage applications rather than constant-current LED loads.
Input 12~48VDC. 4 channels at 3A each. Operating temperature -30~+55°C. Backed by a 5 year warranty.
Key Features
- ✓Input voltage: 12~48VDC
- ✓Control protocol: dimmable
- ✓Output signal: PWM
- ✓Output channels: 3A - 4 Channel
- ✓Maximum load: 3A per channel
- ✓Maximum total load: 96W
- ✓Operating temperature: -30~+55°C
- ✓Certifications: CE, FC, ROHS
- ✓Dimensions: 175 x 46 x 30mm
- ✓5 year warranty
-
BrandLtech
-
SeriesLtech WIFI Series
-
Power Rating96 Watt
-
Output Voltage12 Volt
-
Rated Current8 Ampere
-
Input Voltage12V~48V
-
Standards MetCE,FC,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~55°C
-
Warranty5 Year
-
Length17.5 cm
-
Width4.6 cm
-
Height3 cm
-
Weight0.01 kg
::specification::
Frequently Asked Questions
What type of LED load is the Ltech M4-E designed to control?
The Ltech M4-E is a constant voltage 4-channel DMX/RDM decoder for low-voltage LED lighting systems. It accepts 12-48V input and provides PWM dimming control for constant-voltage applications rather than constant-current LED loads.
Does the M4-E support both DMX512 and RDM control?
Yes. This model supports DMX512 input along with RDM, which allows device parameters and DMX addressing to be viewed and adjusted through an RDM-capable controller. That makes it better suited for managed lighting systems than DMX-only decoders.
What are the voltage, current, and power limits of the M4-E?
The M4-E operates from 12V to 48V DC. It is rated for up to 8A per channel and 24A maximum total across 4 channels. Total output power is listed as up to 1152W at 48V, with lower maximum wattage at lower input voltages.
Can the M4-E be used in systems that need high-resolution dimming?
Yes. The decoder supports optional 16-bit grayscale control with 65,536 levels, as well as 8-bit control with 256 levels. This makes it suitable for applications where smoother dimming transitions or finer intensity control are important.
What makes the M4-E different from the M4-C version?
The main stated difference is the DMX interface type. The M4-E uses an RJ45 DMX signal port, while the M4-C version uses green terminal DMX interfaces. Buyers typically choose between them based on the interface format required by their control system.
Is the M4-E suitable for demanding commercial or architectural environments?
It is designed for professional control applications with protection against short circuit, over-temperature, and over-current conditions, plus auto recovery. Its working temperature range of -30°C to 55°C also supports use in a wide range of indoor or protected commercial environments.
What control and output options are available on this decoder?
The M4-E supports switchable DMX mode and customized mode, optional standard or smooth dimming behavior, and selectable 1, 2, 3, or 4 DMX channel output. It also offers a wide PWM frequency range from 300Hz up to 18000Hz, which can help match different lighting performance requirements.
