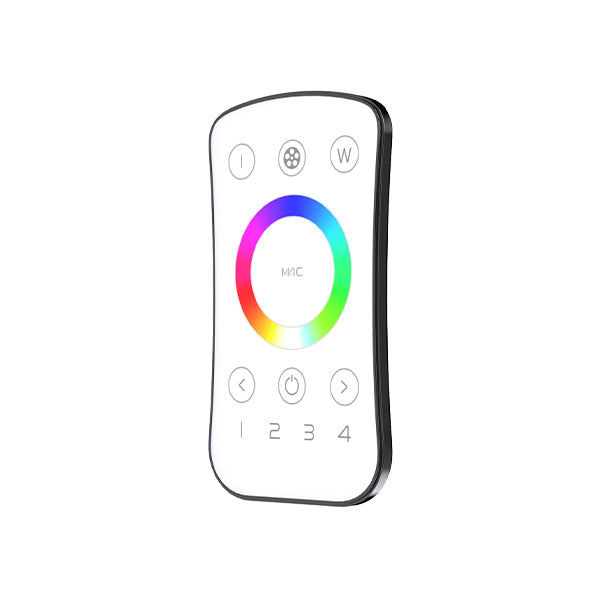

Ltech M4C Mini Remote - RGBW, Multi-Zone - White Finish
Log in to see priceThe Ltech M4C Mini Remote is designed for RGBW lighting control in systems that use compatible Ltech controllers. It supports functions such as on/off control, brightness adjustment, static RGB color selection, dynamic mode effects, and scene recall. the M4C is intended for multi-zone remote operation in lighting applications.
4 channels at 3A each. Operating temperature -30~+55°C. Backed by a 5 year warranty.
Key Features
- ✓Control protocol: dimmable
- ✓Output signal: PWM
- ✓Output channels: 3A - 4 Channel
- ✓Maximum load: 3A per channel
- ✓Operating temperature: -30~+55°C
- ✓Certifications: CE, FC, ROHS
- ✓Dimensions: 104 x 58 x 9mm
- ✓5 year warranty
-
BrandLtech
-
SeriesLtech WIFI Series
-
Output Voltage3 Volt
-
Rated Current0 Ampere
-
Standards MetCE,FC,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~55°C
-
Warranty5 Year
-
Length10.4 cm
-
Width5.8 cm
-
Height0.9 cm
-
Weight0.01 kg
::specification::
Frequently Asked Questions
What is the Ltech M4C Mini Remote designed to control?
The Ltech M4C Mini Remote is designed for RGBW lighting control in systems that use compatible Ltech controllers. It supports functions such as on/off control, brightness adjustment, static RGB color selection, dynamic mode effects, and scene recall. This model is intended for multi-zone remote operation in lighting applications.
Does the M4C support multi-zone control?
Yes, the M4C supports zone control and can manage multiple zones from a single remote. Multiple controllers can also be assigned to one zone for grouped control. A single ON/OFF press can turn all zone lights on or off at the same time.
What wireless range does the M4C remote offer?
The M4C uses RF 2.4GHz wireless transmission technology. Under no-interference conditions, its control distance can reach up to 30 meters. Actual range may vary depending on surrounding interference and the installation environment.
Which controller is this remote intended to work with?
The product description states that the M4C is designed to work with an Ltech P5 controller. The P5 supports 5-channel outputs and can handle DIM, CT, RGB, RGBW, and RGBCW lighting modes. For this specific remote, the listed dimming mode is RGBW.
Is the M4C suitable for commercial or project-based lighting use?
Yes, the M4C is well suited for commercial and project-based lighting where multi-zone RGBW control is needed. Its ability to control multiple zones and large numbers of controllers within range makes it practical for larger spaces. The compact handheld format also helps in applications where simple day-to-day lighting control is needed.
What are the main physical and operating specifications of the M4C?
The M4C runs on 3Vdc using one CR2032 button battery and has a standby current of less than 2uA. Its working temperature range is -30°C to 55°C. The remote measures 104×58×9mm, or 108×63×14mm with holder, and the listed weight is 40g±10g.
Can the M4C be used in demanding temperature environments?
The specified working temperature range is -30°C to 55°C, which makes it suitable for a wide range of indoor and some challenging environmental conditions. Buyers should still confirm that the overall lighting system and site conditions match the needs of the full application. The remote itself is rated for operation across that stated temperature span.
