Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

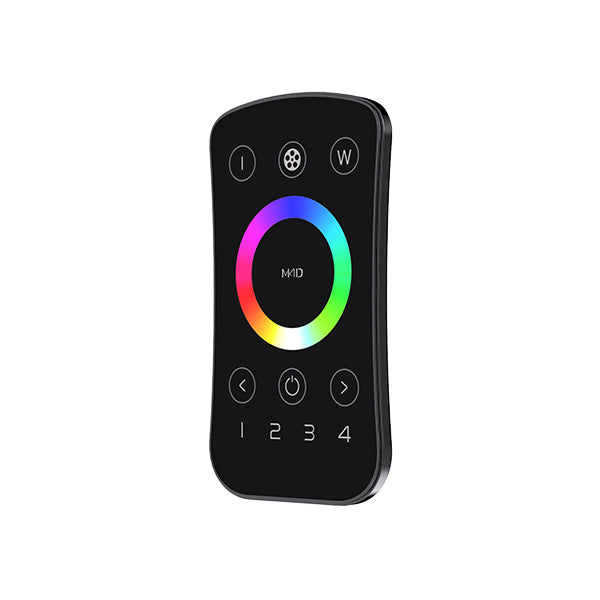

Ltech M4D Mini Remote - RGBW, Multi-Zone - Black Finish
Log in to see priceThe Ltech M4D Mini Remote is designed for RGBW lighting control in systems that use compatible Ltech controllers. It supports functions such as on/off control, brightness adjustment, static RGB color selection, dynamic mode effects, and scene recall. This makes it suitable for multi-zone commercial or architectural LED lighting applications.
4 channels at 3A each. Operating temperature -30~+55°C. Backed by a 5 year warranty.
Key Features
- ✓Control protocol: dimmable
- ✓Output signal: PWM
- ✓Output channels: 3A - 4 Channel
- ✓Maximum load: 3A per channel
- ✓Operating temperature: -30~+55°C
- ✓Certifications: CE, FC, ROHS
- ✓Dimensions: 104 x 58 x 9mm
- ✓5 year warranty
-
BrandLtech
-
SeriesLtech WIFI Series
-
Output Voltage3 Volt
-
Rated Current0 Ampere
-
Standards MetCE,FC,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~55°C
-
Warranty5 Year
-
Length10.4 cm
-
Width5.8 cm
-
Height0.9 cm
-
Weight0.01 kg
::specification::
Frequently Asked Questions
What is the Ltech M4D Mini Remote designed to control?
The Ltech M4D Mini Remote is designed for RGBW lighting control in systems that use compatible Ltech controllers. It supports functions such as on/off control, brightness adjustment, static RGB color selection, dynamic mode effects, and scene recall. This makes it suitable for multi-zone commercial or architectural LED lighting applications.
Does the M4D support multi-zone lighting control?
Yes, the M4D supports multi-zone control. One remote can control multiple zones, and multiple controllers can be paired within a zone for grouped operation. It also allows all zone lights to be turned on or off together with a single press.
What wireless range does the M4D Mini Remote offer?
The M4D uses RF 2.4GHz wireless communication with a control distance of up to 30 meters under no interference. Actual performance depends on the surrounding environment and sources of signal obstruction or interference. For open indoor spaces, it is intended to provide convenient remote operation across a broad area.
What kind of environment can this remote operate in?
This model is rated for working temperatures from -30°C to 55°C. That range makes it suitable for a wide variety of indoor and protected commercial environments where temperature conditions can vary. Buyers should still confirm that the full lighting system is appropriate for the intended site conditions.
What are the power requirements for the Ltech M4D remote?
The M4D operates at 3V DC and uses one CR2032 button battery. Its standby current is listed as less than 2uA, which supports very low idle power consumption. This is useful for applications where long battery life is important.
Is the M4D compatible with all LED controllers?
No, this remote is not a universal LED remote. The product description specifically references compatibility with a P5 controller and support for control of compatible Ltech controller systems handling DIM, CT, RGB, RGBW, and RGBCW lighting. Buyers should confirm model compatibility within the Ltech ecosystem before purchasing.
