Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

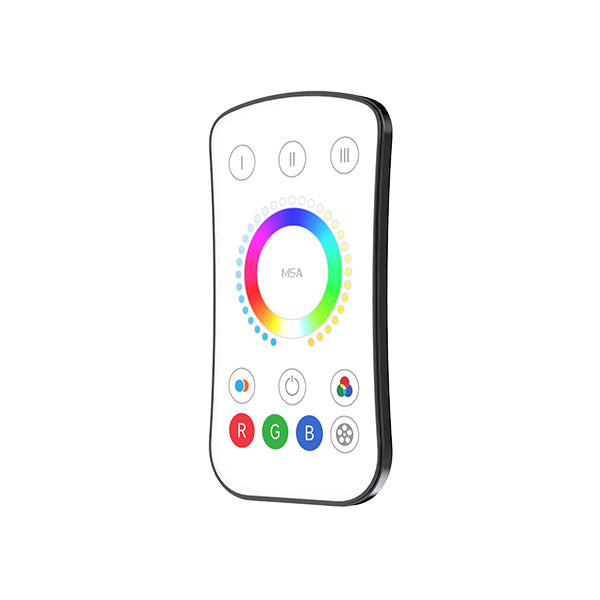

Ltech M5A Mini Remote - RGBCW, Single Zone - White Finish
Log in to see priceThe Ltech M5A is designed for RGBCW lighting control. It can handle functions such as on/off control, brightness adjustment, color temperature adjustment, static RGB color selection, dynamic modes, and scene recall when used with a compatible controller.
4 channels at 3A each. Operating temperature -30~+55°C. Backed by a 5 year warranty.
Key Features
- ✓Control protocol: dimmable
- ✓Output signal: PWM
- ✓Output channels: 3A - 4 Channel
- ✓Maximum load: 3A per channel
- ✓Operating temperature: -30~+55°C
- ✓Certifications: CE, FC, ROHS
- ✓Dimensions: 104 x 58 x 9mm
- ✓5 year warranty
-
BrandLtech
-
SeriesLtech WIFI Series
-
Output Voltage3 Volt
-
Rated Current0 Ampere
-
Standards MetCE,FC,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~55°C
-
Warranty5 Year
-
Length10.4 cm
-
Width5.8 cm
-
Height0.9 cm
-
Weight0.01 kg
::specification::
Frequently Asked Questions
What does the Ltech M5A Mini Remote control?
The Ltech M5A is designed for RGBCW lighting control. It can handle functions such as on/off control, brightness adjustment, color temperature adjustment, static RGB color selection, dynamic modes, and scene recall when used with a compatible controller.
Is the M5A a single-zone remote?
Yes, the M5A is a single-zone remote. It is intended for controlling one lighting zone rather than managing multiple independent zones from the same handset.
What wireless technology and range does the M5A use?
The M5A uses RF 2.4GHz wireless transmission technology. Its control distance can reach up to 30 meters under no-interference conditions.
Which controller type is this remote compatible with?
This model is described for use with an Ltech P5 controller with 5-channel outputs. That controller platform supports DIM, CT, RGB, RGBW, and RGBCW lighting modes, while the M5A itself is specifically an RGBCW remote.
Can the M5A be used in demanding commercial or industrial environments?
The M5A has a working temperature range of -30°C to 55°C, which makes it suitable for a wide range of indoor operating conditions. Buyers should still confirm that the surrounding environment stays within that specified temperature range.
How is the M5A powered?
The remote operates at 3V DC using one CR2032 button battery. Its listed standby current is less than 2uA, which is designed for very low idle power draw.
