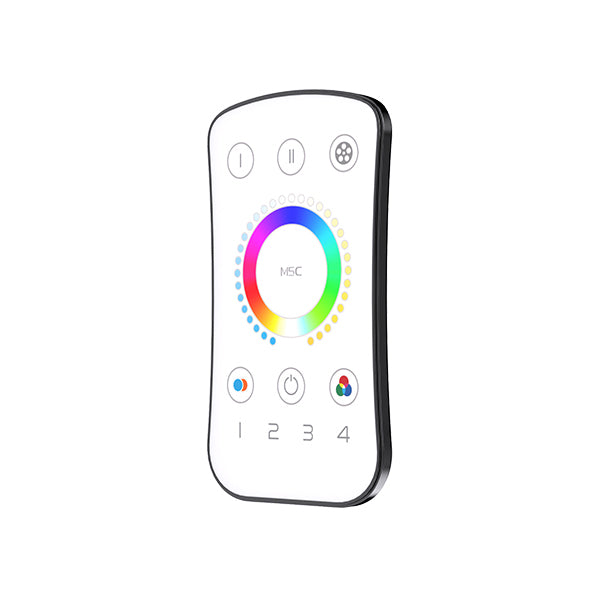

Ltech M5C Mini Remote - RGBCW, Multi-Zone - White Finish
Log in to see priceThe Ltech M5C Mini Remote is designed to control RGBCW lighting functions through compatible controllers in the MINI series ecosystem. It supports on/off control, brightness adjustment, color temperature changes, static RGB color selection, dynamic mode effects, and scene recall.
4 channels at 3A each. Operating temperature -30~+55°C. Backed by a 5 year warranty.
Key Features
- ✓Control protocol: dimmable
- ✓Output signal: PWM
- ✓Output channels: 3A - 4 Channel
- ✓Maximum load: 3A per channel
- ✓Operating temperature: -30~+55°C
- ✓Certifications: CE, FC, ROHS
- ✓Dimensions: 104 x 58 x 9mm
- ✓5 year warranty
-
BrandLtech
-
SeriesLtech WIFI Series
-
Output Voltage3 Volt
-
Rated Current0 Ampere
-
Standards MetCE,FC,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~55°C
-
Warranty5 Year
-
Length10.4 cm
-
Width5.8 cm
-
Height0.9 cm
-
Weight0.01 kg
::specification::
Frequently Asked Questions
What does the Ltech M5C Mini Remote control?
The Ltech M5C Mini Remote is designed to control RGBCW lighting functions through compatible controllers in the MINI series ecosystem. It supports on/off control, brightness adjustment, color temperature changes, static RGB color selection, dynamic mode effects, and scene recall.
Does the M5C support multi-zone control?
Yes, the M5C supports multi-zone control. One remote can manage multiple zones, and multiple controllers can be assigned to the same zone for grouped control.
What wireless technology does the M5C use, and what is its range?
This model uses RF 2.4GHz wireless transmission technology. Its control distance can reach up to 30 meters under no-interference conditions.
What kind of battery does the Ltech M5C Mini Remote use?
The M5C operates on 3Vdc using one CR2032 button battery. Its standby current is listed as less than 2uA, which helps minimize idle power draw.
Is the M5C suitable for demanding temperature environments?
The remote is rated for operation from -30°C to 55°C. That makes it suitable for a wide range of commercial and architectural lighting environments within that temperature window.
What are the size and finish of the Ltech M5C Mini Remote?
The M5C comes in a white finish. The remote measures 104 x 58 x 9 mm, and the remote with holder measures 108 x 63 x 14 mm.
