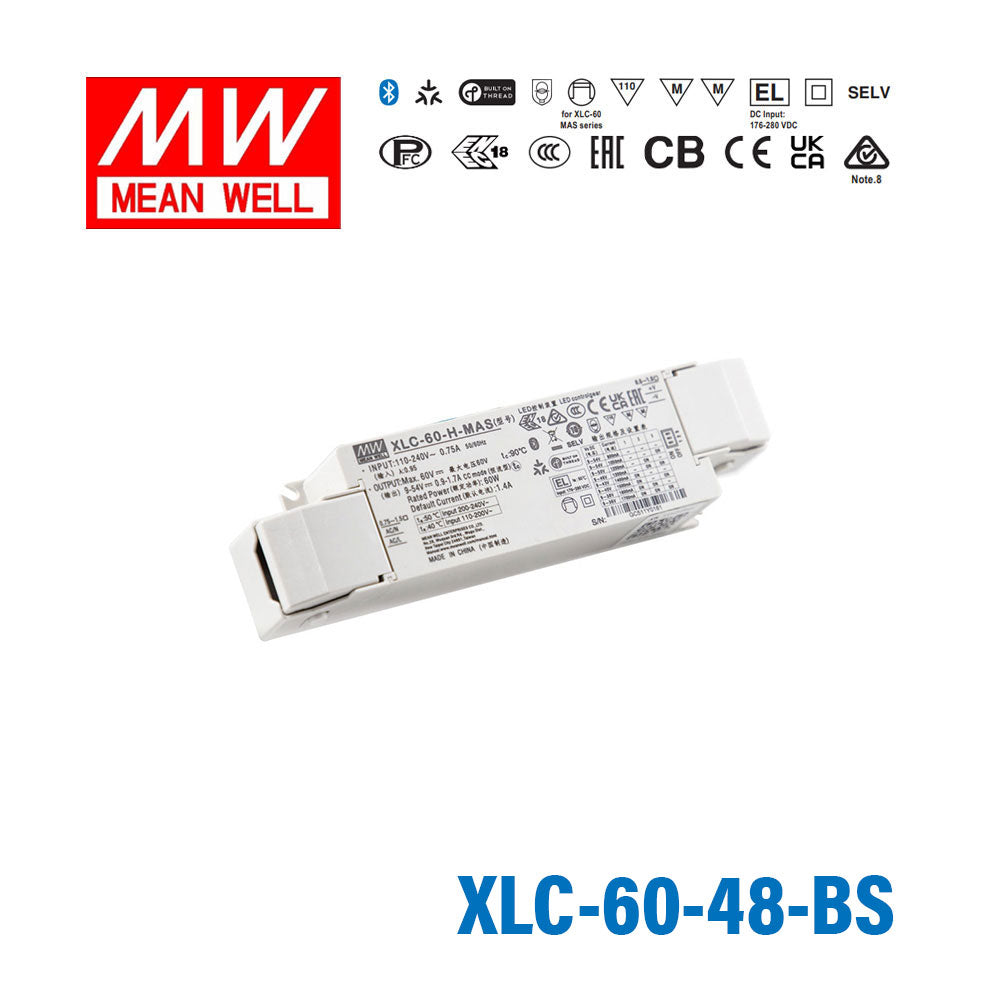

Mean Well XLC-60-48-BS 60W 48V, 3 in 1 Dimming, with Strain-relief
Log in to see priceKey Features
- ✓Constant power mode output with multiple stages selectable by dip switch or NFC setting(H-type)
- ✓Constant voltage mode output (12V/24V/48V)
- ✓Plastic housing with class II/2 and PFC design
- ✓Flicker-free, complying with IEEE1789/ErP
- ✓Standby power consumption <0.5W
- ✓Meet emergency lighting (EL) function application
- ✓Minimum dimming level 0.1% (DALI-2 DT6)
- ✓Dimming functions: 3 in 1 dimming (Dim-to-off) DALI-1 + Push dimming
- ✓5 years warranty
-
BrandMean Well
-
SeriesMean Well XLC Series
-
Power Rating60 Watt
-
Output Voltage48 Volt
-
Rated Current1.25 Ampere
-
Input Voltage110V~305V
-
Standards MetCB,CCC,CE,EAC,ENEC,SELV
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~90°C
-
Warranty5 Year
-
Length17.6 cm
-
Width3.2 cm
-
Height4.5 cm
-
Weight0.32 kg
::specification::
Frequently Asked Questions
What is the output rating of the Mean Well XLC-60-48-BS?
The XLC-60-48-BS is rated for 60 W output power. It provides 48 V output with a rated current of 1.25 A.
Is the XLC-60-48-BS suitable for 48 V LED lighting applications?
Yes, this model is listed as a 48 V LED driver and is intended for LED power supply applications. Its 60 W power rating and 1.25 A rated output current should be matched against the requirements of the LED load.
What dimming controls does the XLC-60-48-BS support?
The listed dimming controls for this model are 0-10 V/PWM, 1-10 V, and resistance dimming. It is described as a 3-in-1 dimming LED driver with dim-to-off functionality.
Can the XLC-60-48-BS be used in damp or demanding environments?
This product is categorized as a waterproof power supply, making it relevant for LED driver applications where environmental protection is a buying consideration. Its listed operating temperature range is -25 °C to 90 °C.
Does the XLC-60-48-BS include power factor correction?
Yes, the product description lists a PFC design. It also notes a plastic housing with Class II/2 construction.
Is the XLC-60-48-BS designed for low-flicker lighting?
Yes, this model is described as flicker-free and compliant with IEEE1789/ErP. That makes it relevant for buyers who need an LED driver for lighting applications where flicker performance matters.
What warranty comes with the Mean Well XLC-60-48-BS?
The XLC-60-48-BS has a listed warranty period of 5 years. This is part of the product information provided for this specific model.
