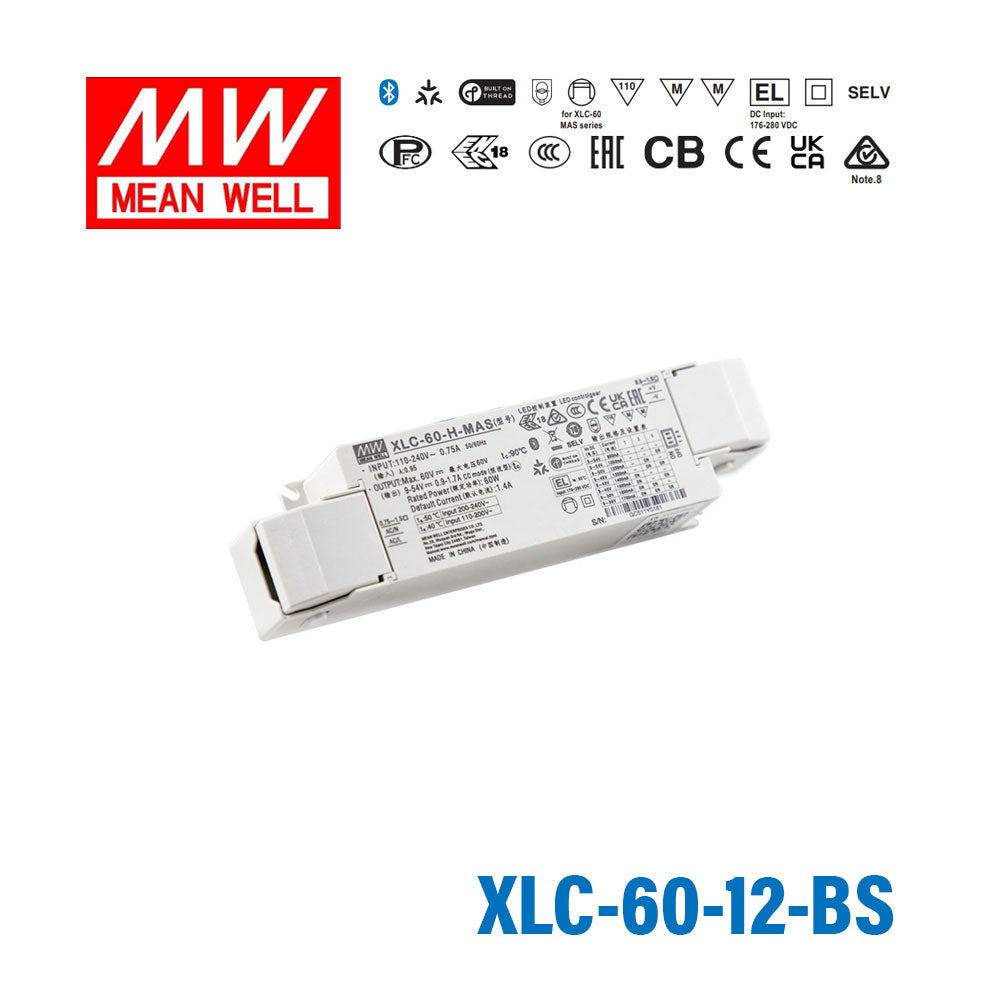

Mean Well XLC-60-12-BS 60W 12V, 3 in 1 Dimming, with Strain-relief
Log in to see priceKey Features
- ✓Constant power mode output with multiple stages selectable by dip switch or NFC setting(H-type)
- ✓Constant voltage mode output (12V/24V/48V)
- ✓Plastic housing with class II/2 and PFC design
- ✓Flicker-free, complying with IEEE1789/ErP
- ✓Standby power consumption <0.5W
- ✓Meet emergency lighting (EL) function application
- ✓Minimum dimming level 0.1% (DALI-2 DT6)
- ✓Dimming functions: 3 in 1 dimming (Dim-to-off) DALI-1 + Push dimming
- ✓5 years warranty
-
BrandMean Well
-
SeriesMean Well XLC Series
-
Power Rating60 Watt
-
Output Voltage12 Volt
-
Rated Current5 Ampere
-
Input Voltage110V~305V
-
Standards MetCB,CCC,CE,EAC,ENEC,SELV
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~90°C
-
Warranty5 Year
-
Length17.6 cm
-
Width3.2 cm
-
Height4.5 cm
-
Weight0.32 kg
::specification::
Frequently Asked Questions
What type of LED applications is the Mean Well XLC-60-12-BS suited for?
The XLC-60-12-BS is a 60W, 12V LED driver for constant voltage LED loads within its 5A rated output. It is a good fit when the buyer needs 12V output, dimming support, flicker-free operation, and a compact driver with strain-relief.
Does the XLC-60-12-BS support dimming?
Yes. This model supports 3 in 1 dimming, including 0-10V, 1-10V, PWM, and resistance dimming control. The product data also notes dim-to-off support.
What are the main output specifications for the XLC-60-12-BS?
The XLC-60-12-BS is rated for 60W output power. It provides 12V output with a rated current of 5A. These specs make it a 12V constant voltage LED driver for loads within that power and current range.
Is the XLC-60-12-BS designed for flicker-sensitive lighting projects?
Yes. The product description states that the XLC-60-12-BS is flicker-free and complies with IEEE1789 and ErP. That makes it relevant for buyers who are comparing LED drivers for visual comfort and lighting quality.
What operating temperature range does this LED driver support?
The listed operating temperature range for the XLC-60-12-BS is -25°C to 90°C. Buyers should use this range when checking whether the model fits the expected ambient conditions for the project.
How does the XLC-60-12-BS differ from a non-dimming 12V LED driver?
Compared with a basic non-dimming 12V driver, the XLC-60-12-BS adds 3 in 1 dimming support and dim-to-off capability. It also includes features listed for this model such as class II/2 plastic housing, PFC design, flicker-free performance, and standby power consumption below 0.5W.
What warranty is listed for the XLC-60-12-BS?
The XLC-60-12-BS has a listed warranty period of 5 years. This is useful for B2B buyers comparing LED drivers for longer-term lighting projects and maintenance planning.
