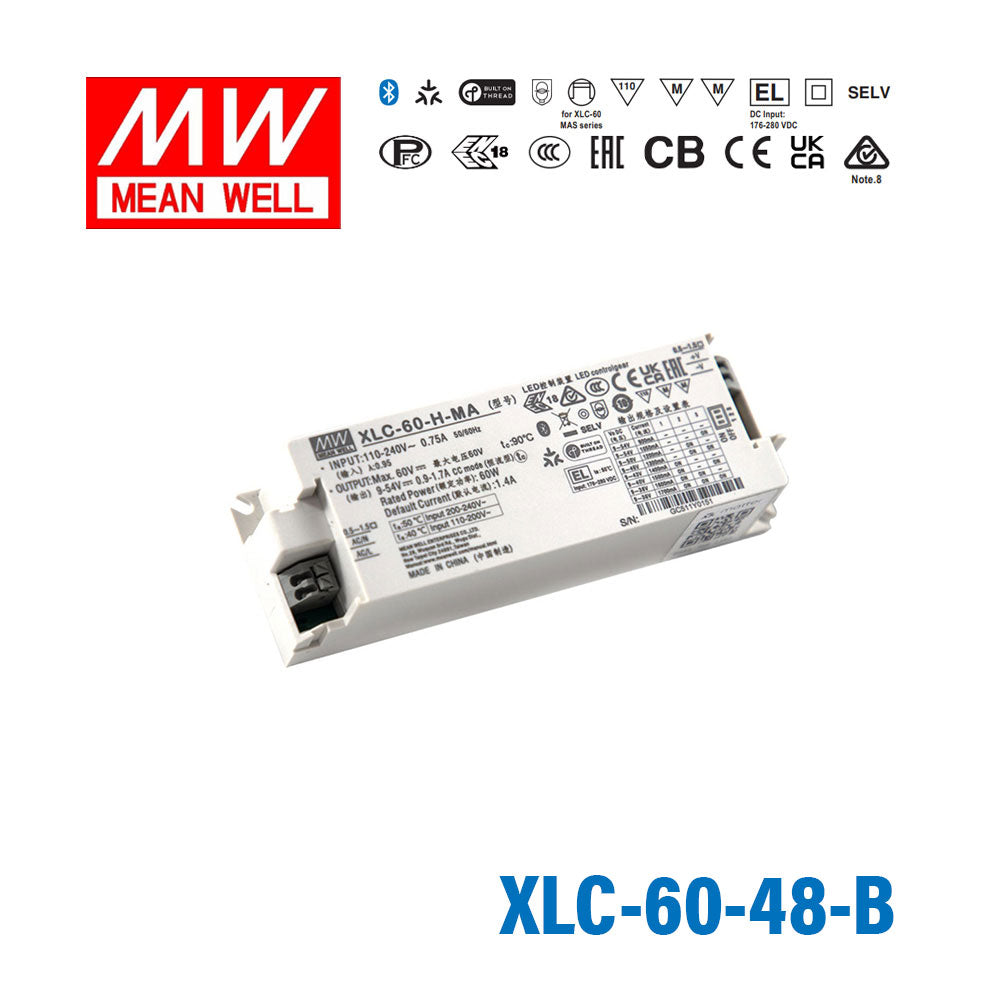

Mean Well XLC-60-48-B 60W 48V, 3 in 1 Dimming
Log in to see priceKey Features
- ✓Constant power mode output with multiple stages selectable by dip switch or NFC setting(H-type)
- ✓Constant voltage mode output (12V/24V/48V)
- ✓Plastic housing with class II/2 and PFC design
- ✓Flicker-free, complying with IEEE1789/ErP
- ✓Standby power consumption <0.5W
- ✓Meet emergency lighting (EL) function application
- ✓Minimum dimming level 0.1% (DALI-2 DT6)
- ✓Dimming functions: 3 in 1 dimming (Dim-to-off) DALI-1 + Push dimming
- ✓5 years warranty
-
BrandMean Well
-
SeriesMean Well XLC Series
-
Power Rating60 Watt
-
Output Voltage48 Volt
-
Rated Current1.25 Ampere
-
Input Voltage110V~305V
-
Standards MetCB,CCC,CE,EAC,ENEC,SELV
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~90°C
-
Warranty5 Year
-
Length13.6 cm
-
Width3.2 cm
-
Height4.5 cm
-
Weight0.32 kg
::specification::
Frequently Asked Questions
What is the Mean Well XLC-60-48-B used for?
The Mean Well XLC-60-48-B is a 60W LED driver for 48V constant voltage LED applications. It is suited to commercial and B2B lighting projects that need dimming support, flicker-free performance, and a compact Class II plastic housing.
What output does the XLC-60-48-B provide?
This model is rated for 60W output power with a 48V output voltage. Its rated current is 1.25A, which matches the listed 60W power class for 48V LED loads.
Does the XLC-60-48-B support dimming?
Yes. The XLC-60-48-B supports 3-in-1 dimming control, including 0-10V PWM, 1-10V, and resistance dimming. The product description also notes dim-to-off behavior.
Is the XLC-60-48-B suitable for flicker-sensitive lighting applications?
The product description lists flicker-free operation and compliance with IEEE1789 and ErP. That makes it a relevant option for buyers who need smoother light output in commercial LED lighting applications.
What operating temperature range is listed for this LED driver?
The XLC-60-48-B is listed with an operating temperature range from -25°C to 90°C. Buyers should confirm the final application conditions remain within the product's rated limits.
How does the XLC-60-48-B differ from a basic non-dimming 48V LED power supply?
Compared with a basic fixed-output supply, this model adds 3-in-1 dimming support and dim-to-off functionality. It also includes PFC design, Class II/2 plastic housing, standby power consumption below 0.5W, and a 5-year warranty.
What warranty is included with the XLC-60-48-B?
The listed warranty period for the Mean Well XLC-60-48-B is 5 years. This is useful for commercial buyers comparing long-term support across LED driver options.
