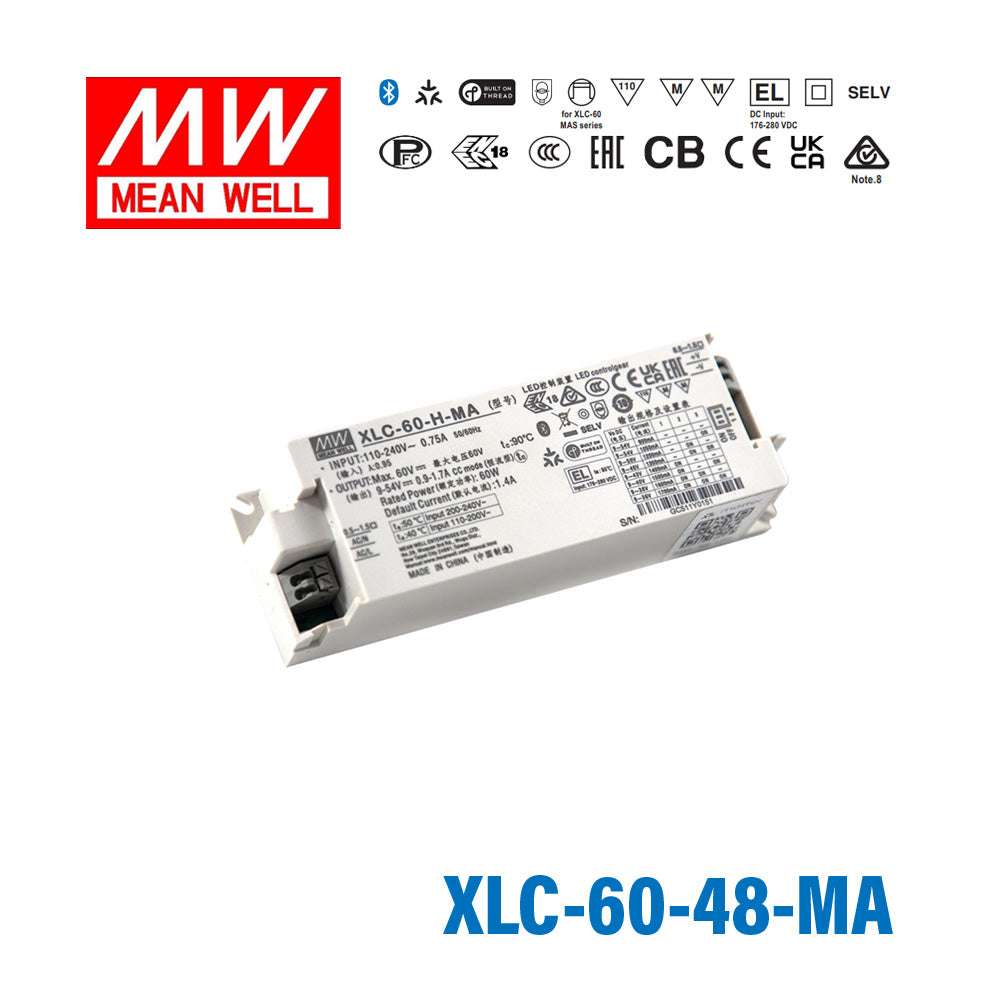

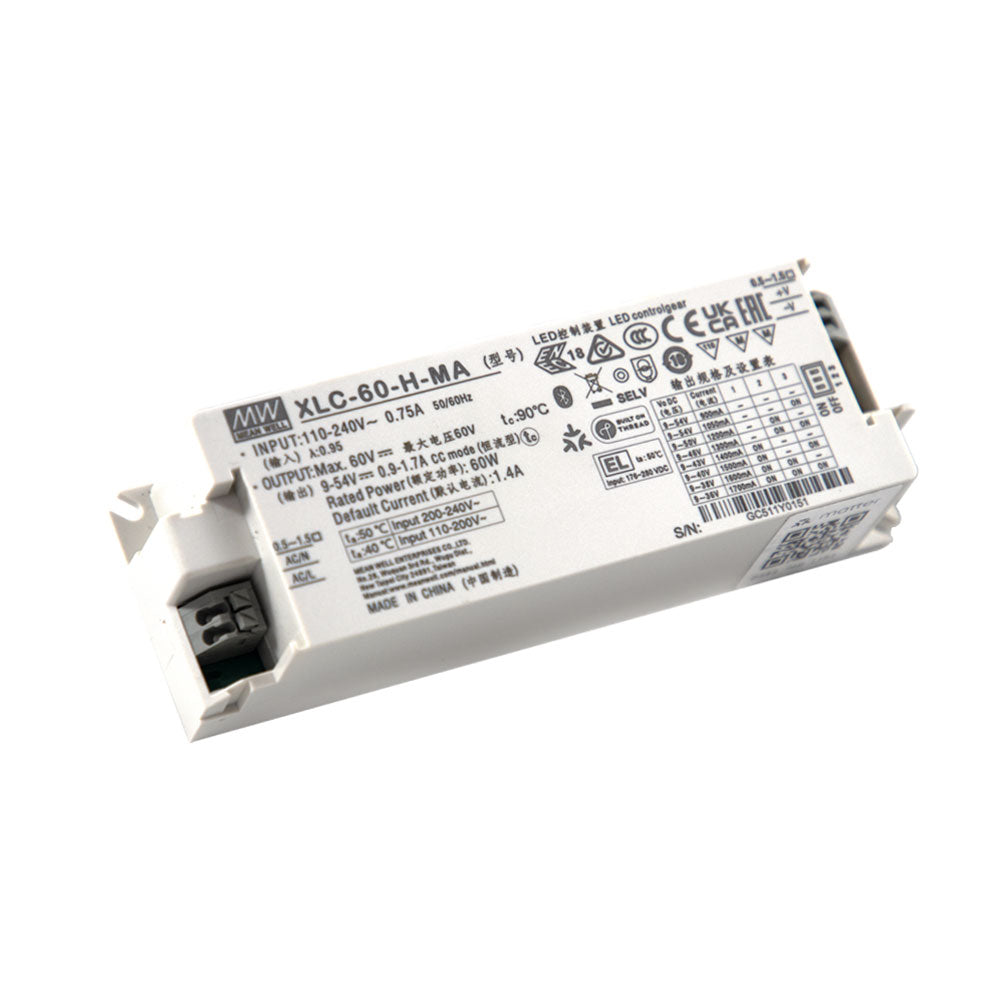

Mean Well XLC-60-48-MA LED Driver 60W 48V Constant Voltage LED Driv...
Please Login for Pricing
Description
Description
Key Features
- ✓Constant power mode output with multiple stage selectable by DIP switch (H-type)
- ✓Constant voltage mode output (12/24/48V)
- ✓Plastic housing with class II and PFC design
- ✓Flicker free, complying with CE ErP directive
- ✓Standby power consumption <0.5W
- ✓Meet emergency lighting (EL) application
- ✓Minimum dimming level 0.1% (12/24/48V)
- ✓Minimum dimming level 0.5% (H-type)
- ✓Matter over thread, Matter 1.3 specification
- ✓5 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well XLC Series
-
Power Rating60 Watt
-
Output Voltage48 Volt
-
Rated Current0.00 Ampere
-
Input Voltage100V~305V
-
Standards MetCB,CCC,CE,EAC,ENEC,SELV
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~90°C
-
Warranty5 Year
-
Length13.6 cm
-
Width3.2 cm
-
Height4.5 cm
-
Weight0.32 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I control the XLC-60-48-MA wirelessly from a smartphone or smart home hub?
Yes, the XLC-60-48-MA supports Matter 1.3, which allows wireless dimming control from any Matter-compatible app, hub, or voice assistant. It can dim down to a minimum level of 0.1%, providing smooth, full-range control over connected 48V LED strips or fixtures.
Is the XLC-60-48-MA compatible with Apple Home, Amazon Alexa, or Google Home ecosystems?
Matter 1.3 — the protocol built into the XLC-60-48-MA — is supported by Apple Home, Amazon Alexa, Google Home, and other major smart home platforms. A Matter-compatible hub or border router on the same network is typically required to bridge the driver into these ecosystems.
Can the XLC-60-48-MA power a 48V LED strip for cove or architectural lighting in a smart home setup?
The XLC-60-48-MA is a practical choice for cove or architectural lighting where tunable brightness is desired. It delivers 60W at 48V and dims to 0.1% via Matter wireless, allowing scene-based or occupancy-driven control without a separate dimmer module or additional wiring.
How much 48V LED strip can the XLC-60-48-MA drive?
The XLC-60-48-MA outputs a maximum of 60W at 48V and 1.25A. Divide 60W by your strip's wattage per meter to find the maximum run length — a 10W/m strip supports up to 6 meters, and a 15W/m strip supports up to 4 meters. Always check your strip's rated power per meter to confirm compatibility.
Does the XLC-60-48-MA work at 100VAC input, such as in Japan or parts of the US on lower-voltage circuits?
Yes, the XLC-60-48-MA accepts input from 100 to 305VAC, making it compatible with 100VAC supply found in Japan and select other markets, as well as standard 120VAC, 220VAC, and 230VAC mains. The CC Voltage Range for dimming operation is 115–230V.
Can the XLC-60-48-MA be installed inside a recessed lighting enclosure or luminaire housing?
The XLC-60-48-MA is a Class II driver designed for built-in installation. Its compact 136mm body length makes it easier to fit inside tight luminaire housings compared to the 176mm siblings. It operates from -25°C to +90°C, which covers typical temperatures inside enclosed fixtures.
