Lifud LF-GIF014YZ LED Driver 14W 100-400mA 9-42V

flicker freeSELV output7-shift current via DIP switchsuitable for Class I/II light fixtures

SKU LF-GIF014YZ

Log in to see price Trade pricing & online ordering for account holders

In stock

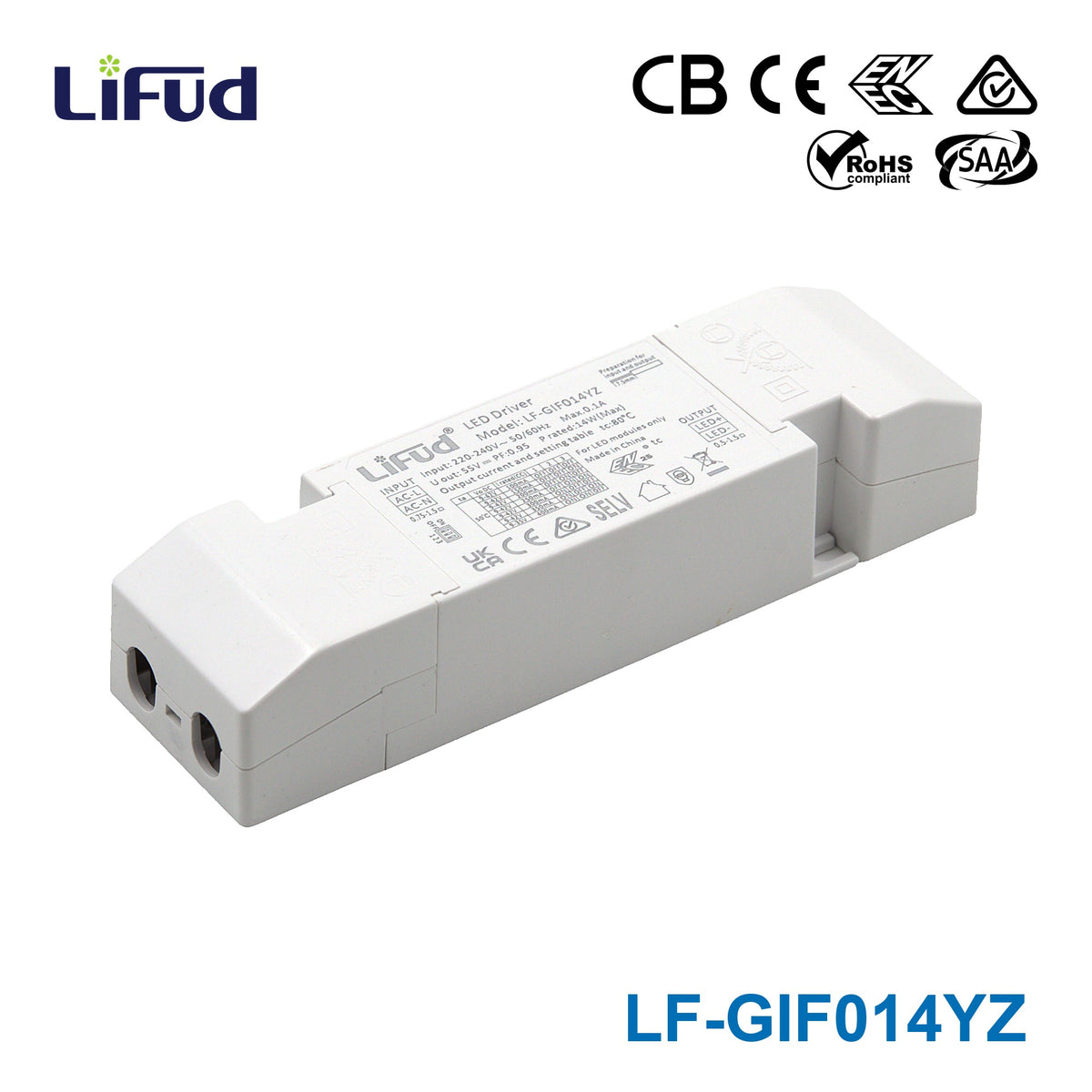

The Lifud LF-GIF014YZ is a 14W constant current LED driver with 7 selectable output currents (100–400mA) adjustable via DIP switch, engineered for compact panel light, downlight and spotlight applications. It delivers a stable 9–42V DC output with flicker-free performance to IEEE Std 1789-2015, and carries ENEC, CB, CE, RCM, SAA and UKCA certifications for broad compliance.

Accepting 198–264VAC universal input, the LF-GIF014YZ achieves a high power factor (≥0.95), efficiency up to 85% and low THD (≤15%) with output ripple below 5%. Its SELV isolated output, automatic short-circuit protection and no-load protection safeguard the connected load, and it is rated from -30°C to +50°C for use in Class I/II light fixtures.

Key Features

✓Constant current output: 9–42V DC, 0.9–14W (14W max)
✓7 selectable output currents (100/150/200/250/300/350/400mA) via DIP switch
✓Flicker-free operation to IEEE Std 1789-2015
✓SELV isolated output — suitable for Class I/II light fixtures
✓Universal AC input: 198–264VAC, PF ≥0.95, THD ≤15%
✓High efficiency up to 85%; output ripple <5%
✓Automatic short-circuit and no-load protection
✓Certifications: ENEC, CB, CE, RCM, SAA, UKCA, RoHS
✓Wide operating temperature: -30°C to +50°C
✓Compact enclosure: 97 × 43 × 30 mm, 70 g
✓5-year Lifud guarantee
