Ltech LED WIFI Controller - RGBW
Please Login for Pricing
Description
Description

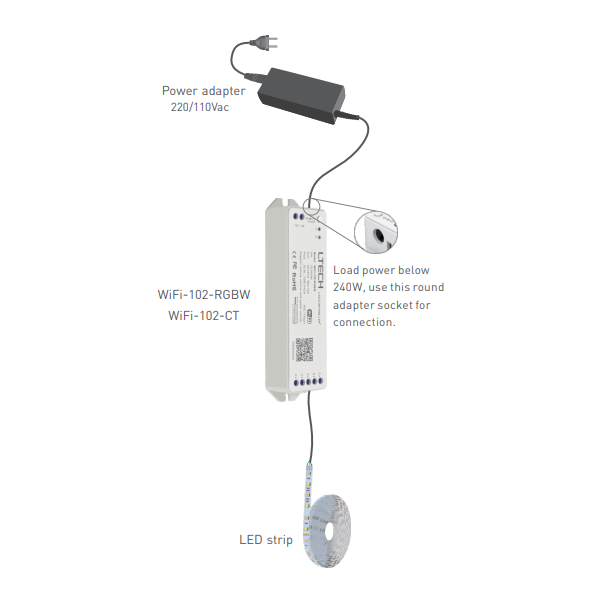

WiFi LED controller can be connected with
lamps directly, support remote control via
intelligent device, smart speaker, mobile
phone, remote and touch panel etc.
Specifications
Specifications
-
BrandLtech
-
SeriesLtech WIFI Series
-
Power Rating288 Watt
-
Output Voltage24 Volt
-
Rated Current12 Ampere
-
Input Voltage12V~24V
-
Standards MetCB,CE
-
Operation ModeConstant Voltage
-
Operating Temperature-15°C~50°C
-
Warranty3 Year
-

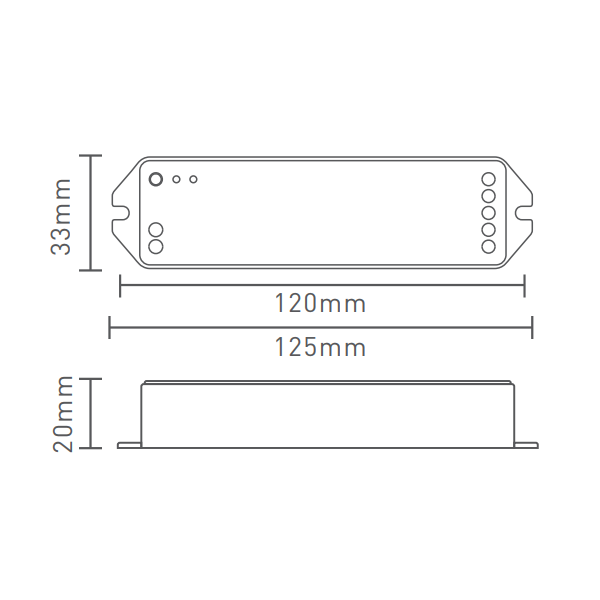

Length12.5 cm
-
Width3.3 cm
-
Height2 cm
-
Weight0.07 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Ltech WIFI-102-RGBW used for?
The WIFI-102-RGBW is a WiFi LED controller for RGBW lighting systems. It is suited to projects where color and white-channel control are needed from a wireless control interface.
What power, voltage, and current is this RGBW controller rated for?
This model is rated for 288W output power at 24V. Its rated current is 12A, so it should be selected only for RGBW LED loads within those listed limits.
What control options does the WIFI-102-RGBW support?
This controller uses WiFi dimming control. The product description lists support for control through an intelligent device, smart speaker, mobile phone, remote, and touch panel.
Is this controller suitable for RGBW LED lighting rather than single-color lighting?
Yes. This model is identified as an RGBW LED WiFi controller, so it is intended for RGBW lighting applications where both color channels and a white channel are required.
What operating temperature range does this controller support?
The WIFI-102-RGBW is specified for operation from -15°C to 50°C. That range should be considered when selecting it for indoor, cabinet, display, or other controlled-environment lighting projects.
How large and serviceable is this controller for project planning?
The listed product weight is 0.070kg, making it a lightweight standalone LED controller. It also carries a 3-year warranty, which is useful for B2B purchasing and project documentation.
