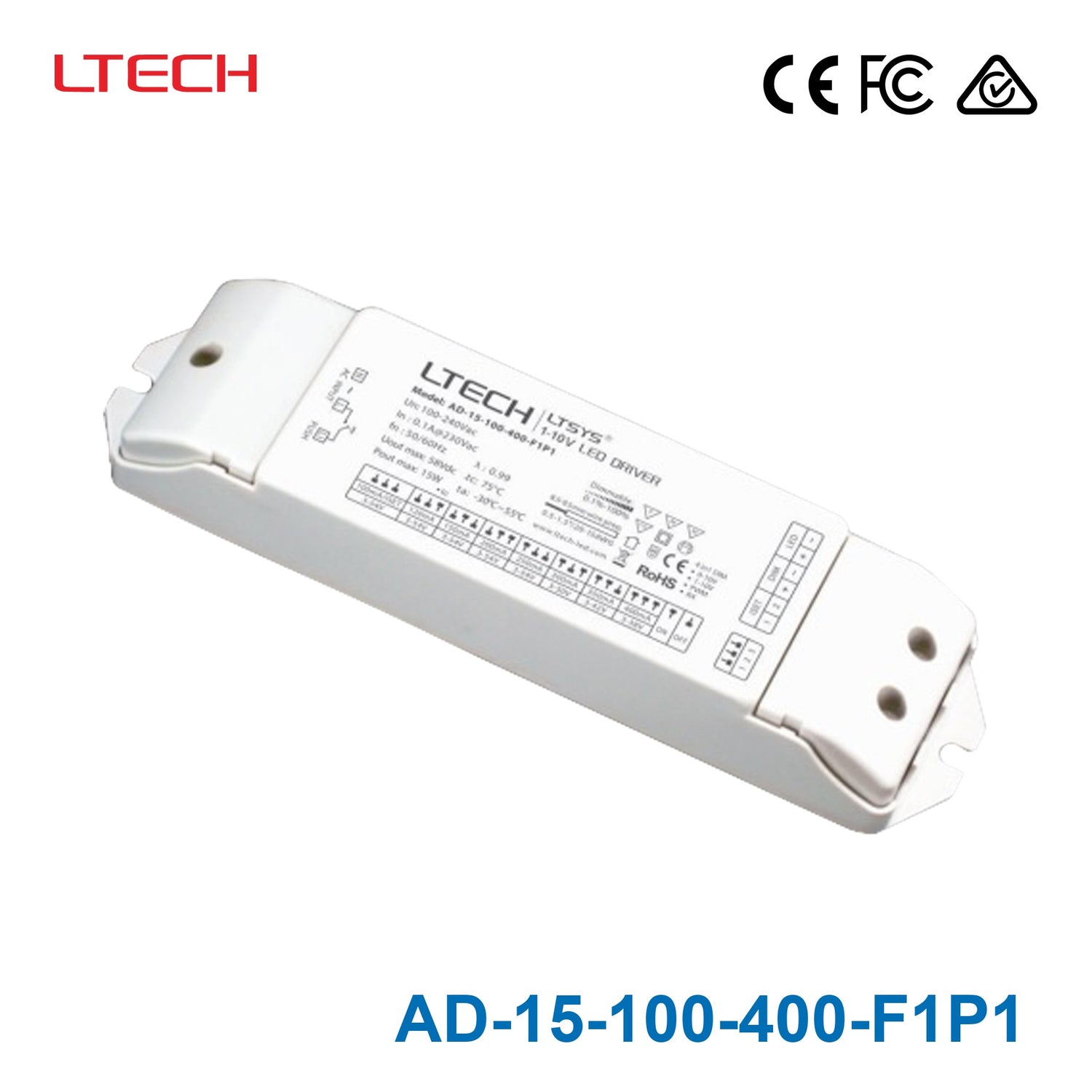

Ltech AD-15-100-400-F1P1 LED intelligent Driver

This model is intended for internal lighting applications. It is described for use in Class I, II, and III lighting environments and uses a full protective plastic housing with Safety Extra Low Voltage compliance. It is best positioned where compact, low-power constant-current dimming performance is needed indoors.

Yes. This driver automatically recognizes both 0-10V and 1-10V input signals, which makes it suitable for projects using either dimming standard. That flexibility can simplify product selection when control methods vary across commercial lighting specs.

The AD-15-100-400-F1P1 uses T-PWM digital dimming to deliver a more refined visual result. Its dimming range is 0 to 100%, and LED startup at 0.01% is possible for very low-light adjustment. The built-in SCM also allows the dimming curve and smoothing time to be customized.

Yes. This model is specified as flicker-free under IEEE 1789 and is stated to achieve the exemption assessment level. That makes it a strong choice where visual comfort and reduced flicker are important selection criteria.

This model is rated at 10W with a 58V output and 0.5A rated current. Those published values make it a low-power constant-current LED driver intended for applications that need controlled dimming rather than higher-output power delivery. Buyers should match it to fixtures that fit those exact driver ratings.

The AD-15-100-400-F1P1 includes over-heat, over-load, and short-circuit protection. It also uses innovative thermal management technology with intelligent power life protection. The stated operating temperature range is -40°C to 80°C, which supports demanding indoor operating conditions.

This LED intelligent driver carries a 5-year warranty. For buyers comparing long-term reliability and support coverage, that warranty period is a meaningful advantage for a compact Class 2 dimmable driver. It aligns with applications where service life and maintenance planning matter.
