Ltech

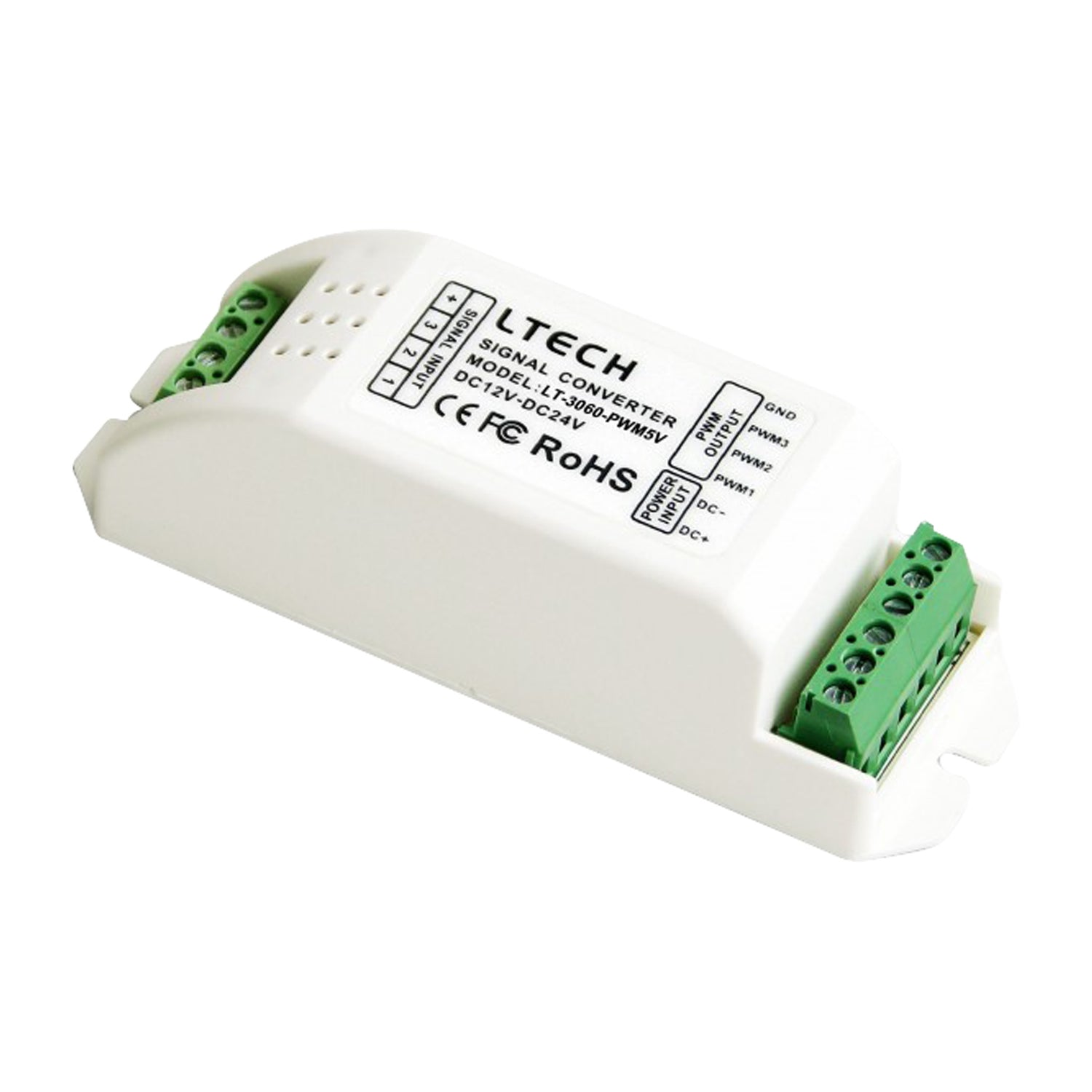

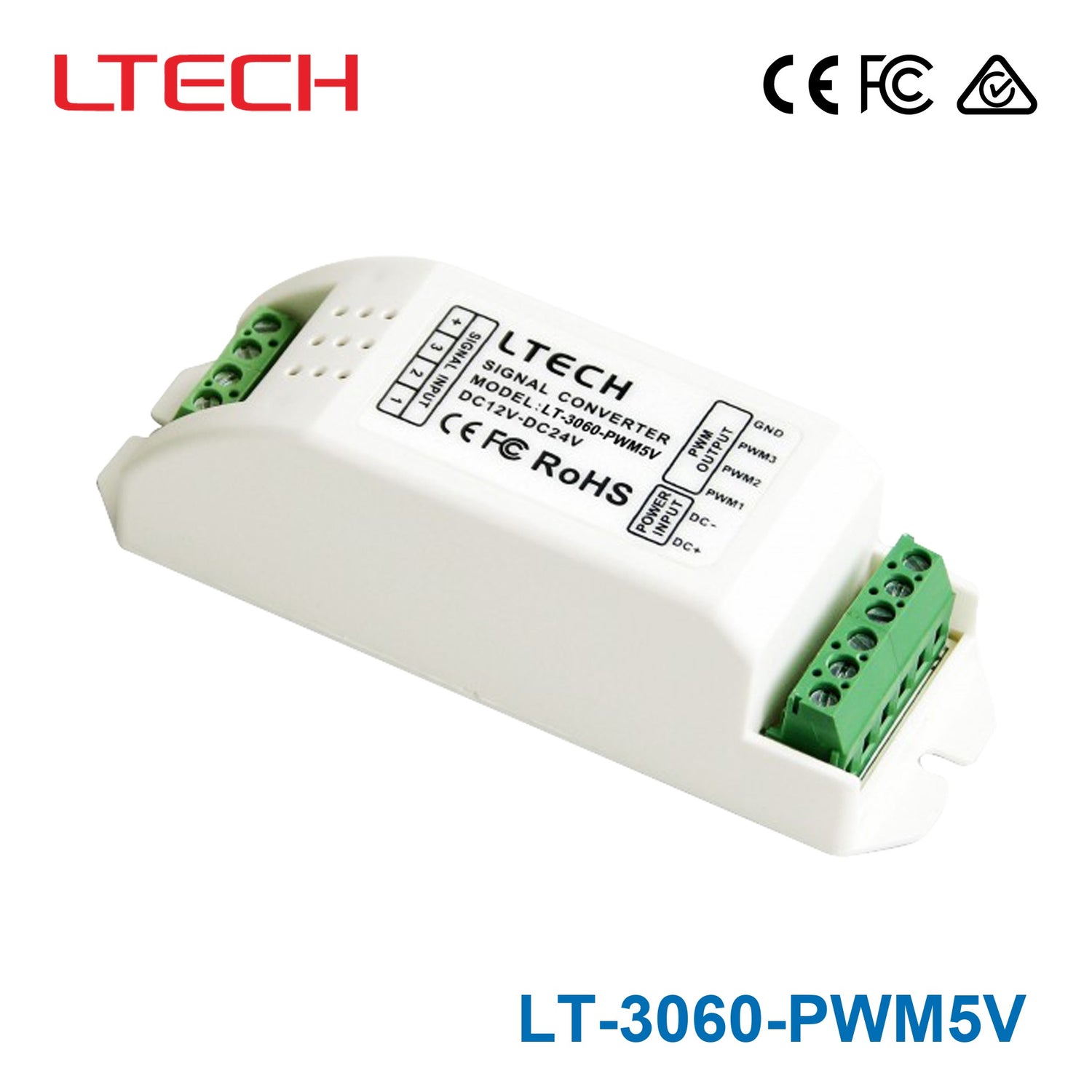

Ltech LT-3060-PWM5V Led Dimming Signal Converter

SKU LT-3060-PWM5V
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

LT-3060-PWM5V is a high performance dimming signal converter, to convert power PWM or 0~10V PWM convert to 5V PWM dimming signal. By using this product, one dimming control system could control multiple drivers or LED lamps in different dimming signal.

Specifications

LT-3060-PWM5VSpecifications from the official datasheet (2014-01-01 edition)Download datasheet PDF

Product parameter

Working voltage
DC12V~DC24V
Signal input
PWM x3CH(compatible with CV/CC Power PWM and Signal PWM)
Signal Output
5V PWM x3CH
Dimming range
0~100%
Working temperature
-30℃~55℃
Product size
L121×W39×H39(mm)
Package size
L123×W42×H42(mm)
Weight(G.W)
80g

Certifications & ratings

warranty
5 years
Certification marks
FCC, CE, RoHS, ISO9001:2008, SAA

Downloads

FAQ

What does the Ltech LT-3060-PWM5V do?

The LT-3060-PWM5V is a dimming signal converter designed to convert power PWM or signal PWM into a 5V PWM dimming signal. It is intended for applications where one dimming control system needs to work with multiple drivers or LED lamps that use different dimming signal types.

What types of dimming signals is this converter designed for?

This model is built to convert power PWM or signal PWM into 5V PWM dimming output. That makes it useful when a project needs to bridge different PWM-based dimming signal formats within the same lighting system.

What are the electrical ratings of the LT-3060-PWM5V?

The LT-3060-PWM5V operates on a DC12V to DC24V working voltage and provides a 5V PWM x3CH signal output. It supports a dimming range of 0~100%, making it suitable for LED dimming control applications that need a dedicated signal conversion device.

Is the LT-3060-PWM5V a good fit for commercial or multi-driver LED projects?

Yes. This model is positioned for systems where a single dimming control setup must support multiple drivers or LED lamps using different dimming signal types, which is a common requirement in commercial and B2B lighting environments.

Can this converter be used in demanding temperature conditions?

The LT-3060-PWM5V is rated for operation from -30°C to 55°C. That operating range makes it better suited than basic indoor-only control components for environments where temperatures may swing well below freezing or reach elevated ambient conditions.

What warranty is offered on the LT-3060-PWM5V?

This model carries a 5-year warranty period. For B2B buyers, that longer warranty can be a useful indicator when comparing support expectations across dimming control components.
