Ltech

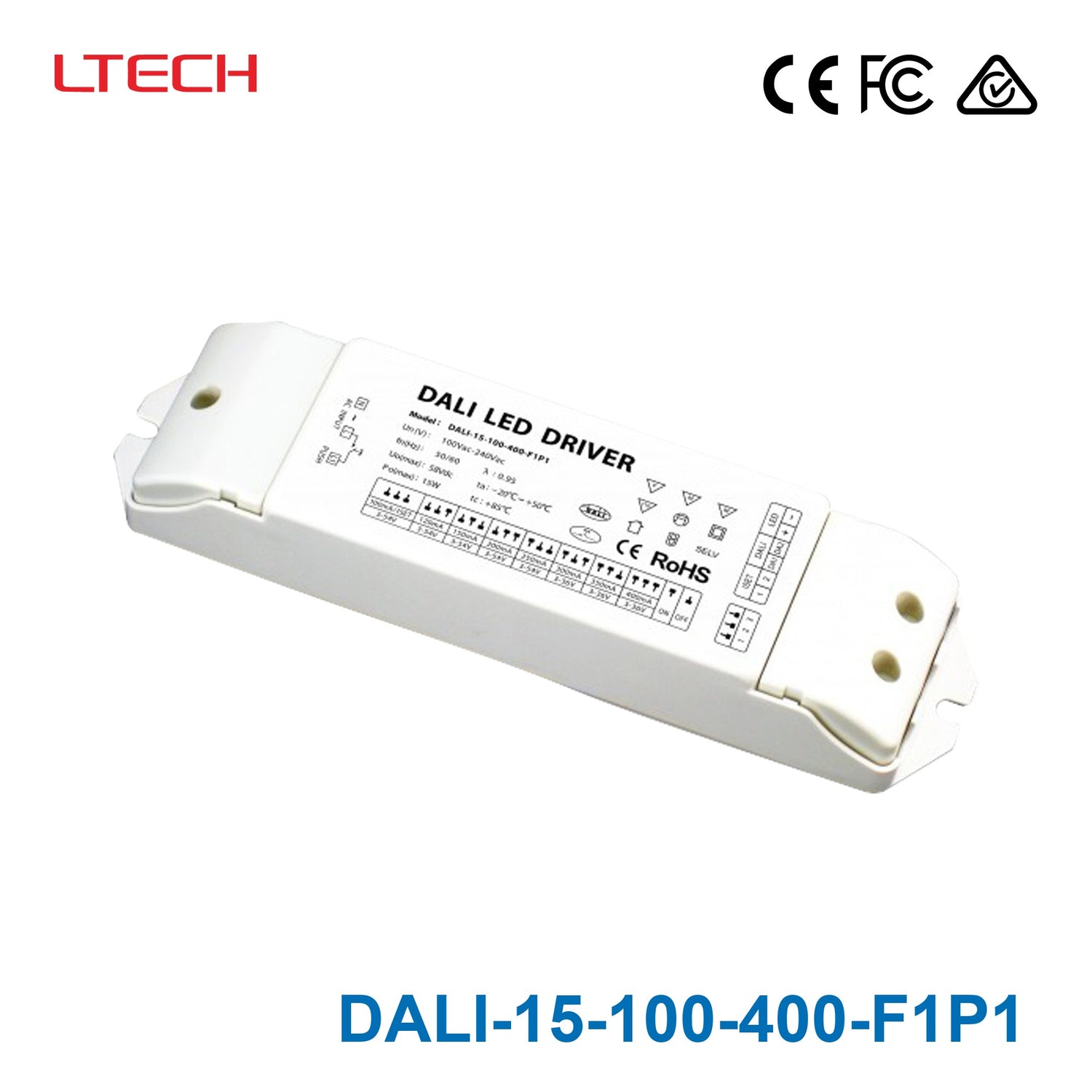

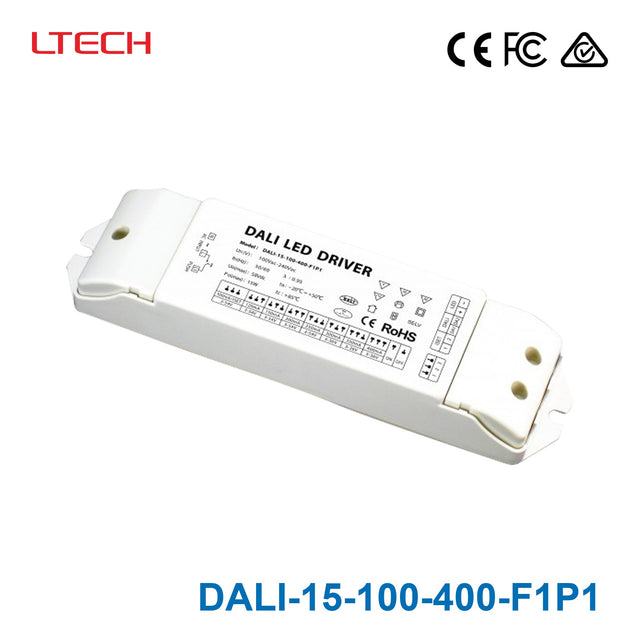

Ltech DALI-15-100-400-F1P1 LED Driver DALI 100-400mA

SKU:
DALI-15-100-400-F1P1
Please for Pricing
|

Description
PWM digital dimming, no alter LED color rendering index. Standard DALI logarithmic dimming curve. Dimming range: 0~100%, LED start at 0.1% possible. Multiple current, wide voltage, compatible with a variety of LED lights. Power factor > 0.99, Efficiency > 83% Short circuit / Over-heat / Over load protection. Class 2 power supply. Full protective plastic housing. DALI bus standard: IEC62386-101, 102, 207. Compliant with Safety Extra Low Voltage standard. Suitable for indoor environments.

Specifications
  • Brand
    Ltech
  • Power Rating
    15 Watt
  • Output Voltage
    54 Volt
  • Rated Current
    0.4 Ampere
  • Input Voltage
    100V~240V
  • Standards Met
    CE,FCC,RCM
  • Operation Mode
    Constant Current
  • Operating Temperature
    -40°C~80°C
  • Warranty
    5 Year
  • Length
    17.5 cm
  • Width
    4.4 cm
  • Height
    3 cm
  • Weight
    0.16 kg

File Downloads

::specification::

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What type of product is the Ltech DALI-15-100-400-F1P1?

The Ltech DALI-15-100-400-F1P1 is a DALI LED driver for constant-current lighting applications. It is designed for dimmable LED systems and supports a 100-400 mA output range as indicated by the model name and product description.

Does this LED driver support smooth low-end dimming?

Yes. This model uses a standard DALI logarithmic dimming curve with a dimming range of 0-100%, and the product description states LED start at 0.1% is possible. That makes it a strong fit for applications where very low brightness levels are important.

Is this driver compatible with DALI lighting control systems?

Yes. The product is specified for DALI control and lists compliance with DALI bus standards IEC62386-101, 102, and 207. That makes it appropriate for projects using standard DALI-based dimming infrastructure.

What are the main electrical specs of this model?

This model is rated at 15 W max power, with up to 54 V output and a rated current of 400 mA. The description also highlights a power factor greater than 0.99 and efficiency greater than 83%.

What kinds of LED applications is this driver best suited for?

This driver is best suited for indoor constant-current LED lighting projects that need DALI dimming control. Its multiple-current design and wide voltage capability make it suitable for use with a variety of compatible LED lights.

Can this driver help maintain LED light quality while dimming?

Yes. The product description specifically states PWM digital dimming with no alteration to LED color rendering index. That means it is intended to dim LEDs without changing their CRI performance.

Is the DALI-15-100-400-F1P1 suitable for demanding environments?

It is designed for indoor environments and is rated for a wide temperature range from -40 C to 80 C. The unit also includes short circuit, over-heat, and over-load protection for added durability in commercial applications.

What warranty comes with this LED driver?

This model includes a 5-year warranty period. That makes it a practical option for buyers who want longer-term coverage on a DALI dimming component.
