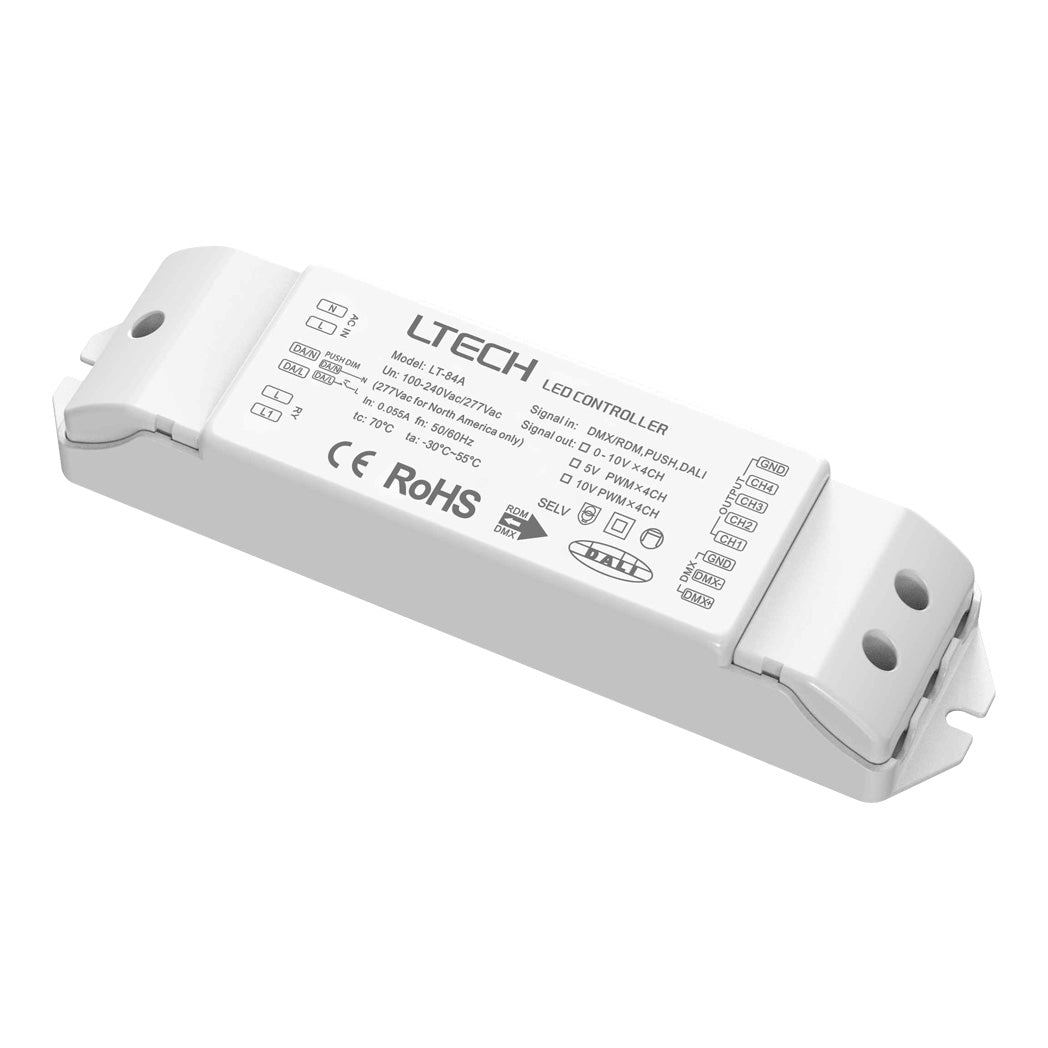

Ltech LT-84A DMX/DALI -0-10V Dimming Module
Please Login for Pricing
Description
Description
Specifications
Specifications
-
BrandLtech
-
Power Rating50 Watt
-
Rated Current0.5 Ampere
-
Input Voltage100V~240V
-
Standards MetCE,FCC,RCM
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~55°C
-
Warranty5 Year
-

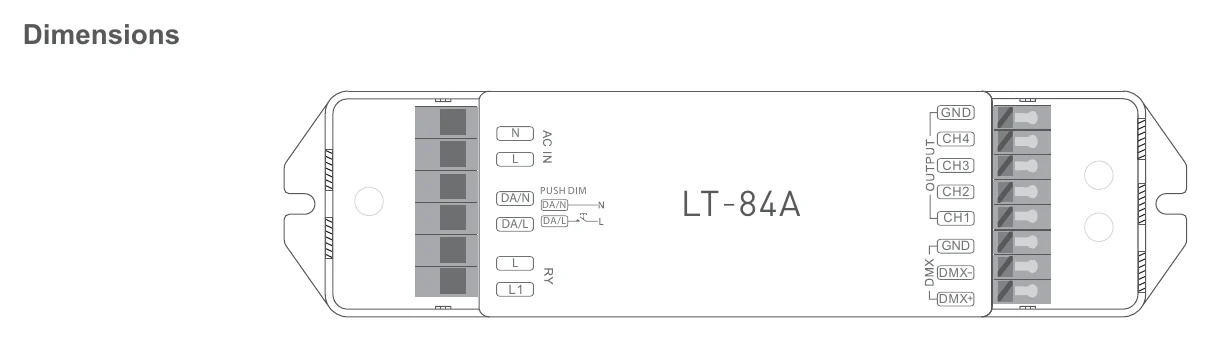

Length17.5 cm
-
Width4.4 cm
-
Height3 cm
-
Weight0.1 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions

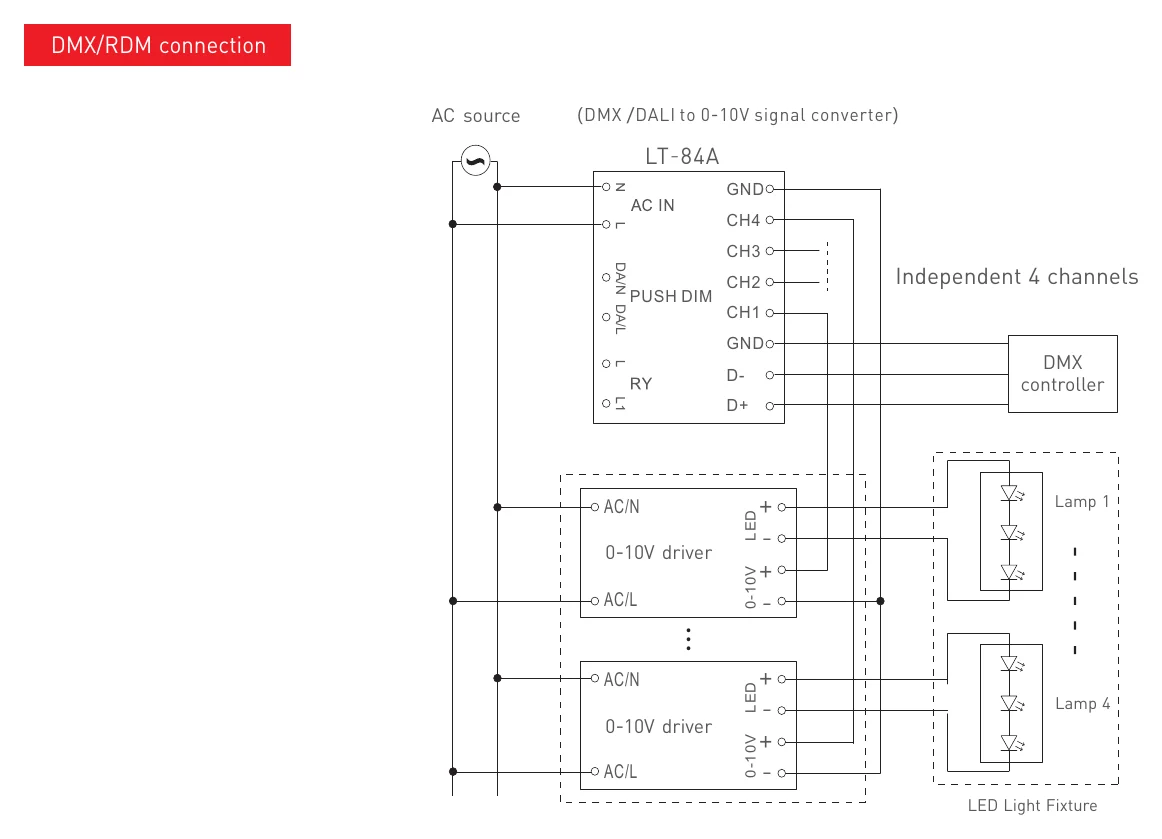

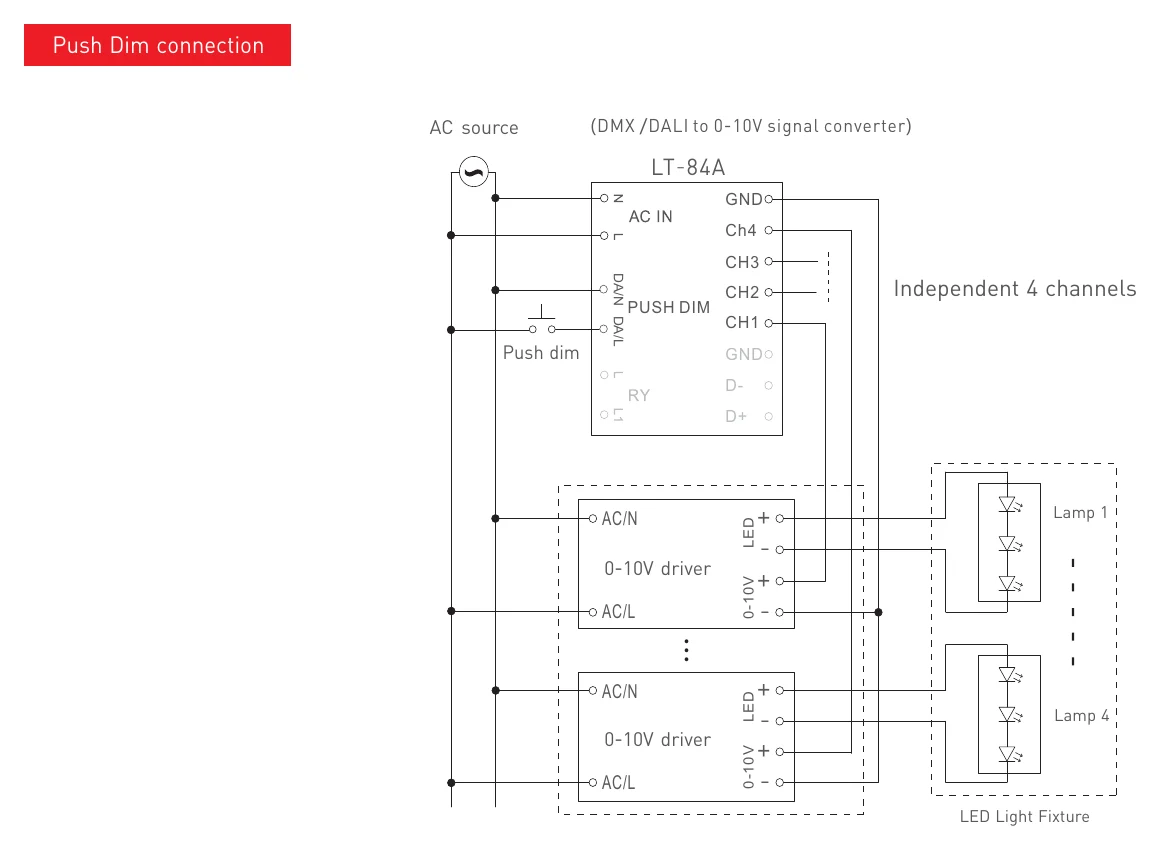

What control protocols does the Ltech LT-84A support?
The LT-84A supports DMX/RDM, DALI, and Push Dim control. That makes it suitable for projects that need compatibility with common commercial lighting control protocols in one dimming module.
What output signal options are available on the LT-84A-5VPWM?
This model is described with optional 0-10V, 5V PWM, and 10V PWM output options. It is intended for applications where the control side needs to interface with dimmable LED drivers or lighting equipment using one of those signal types.
How many output channels does this dimming module provide?
The LT-84A provides 4 channel output. That makes it a fit for multi-channel dimming scenarios where separate controlled outputs are needed from one module.
Does the LT-84A include ON/OFF control in addition to dimming?

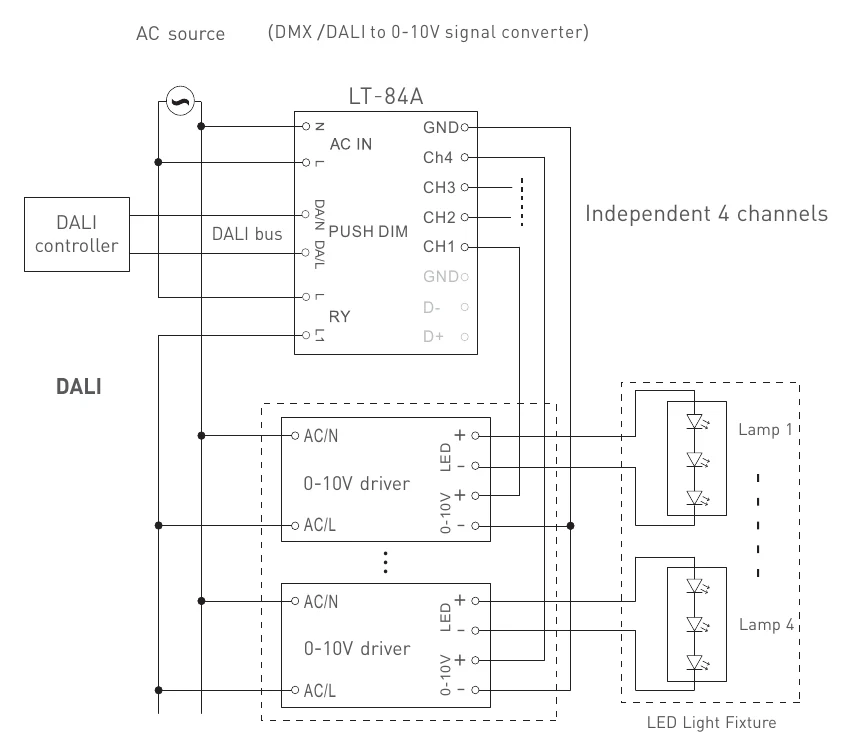

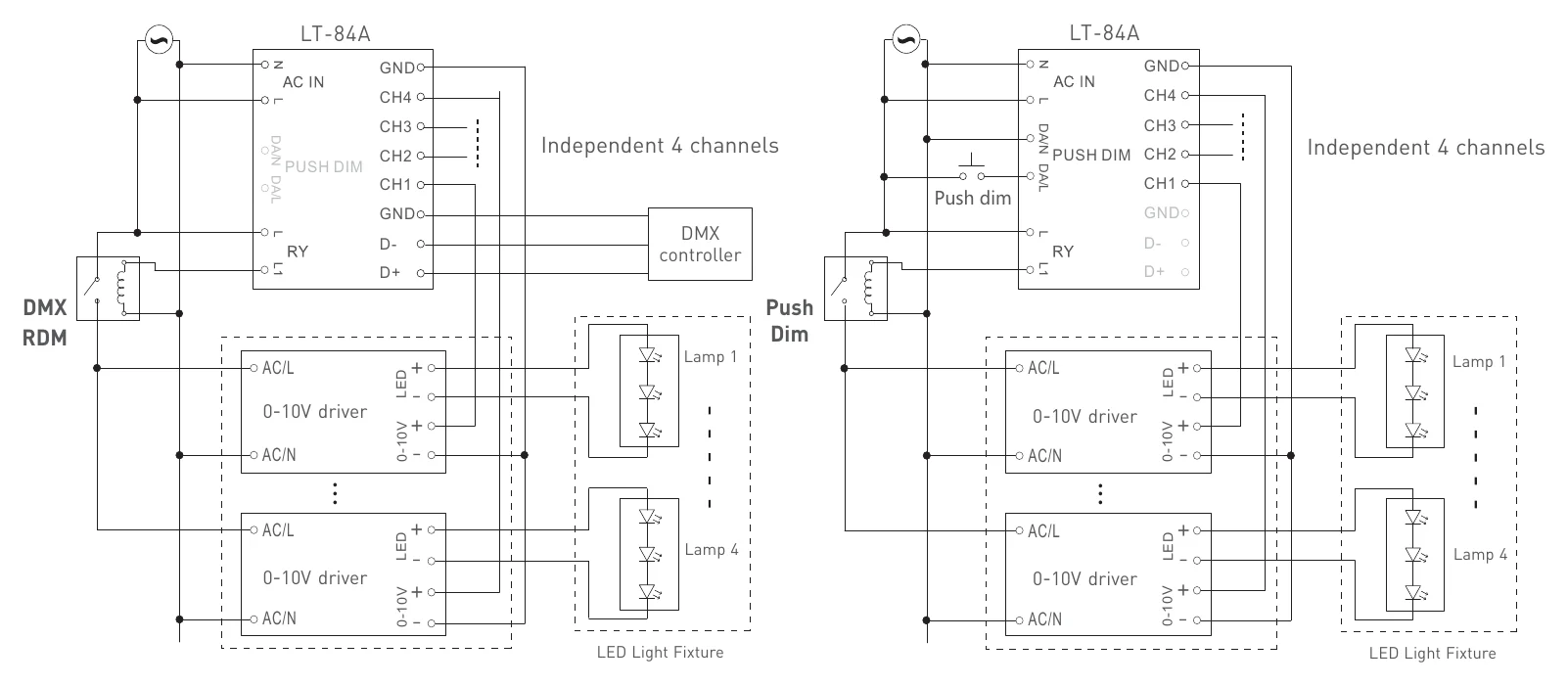

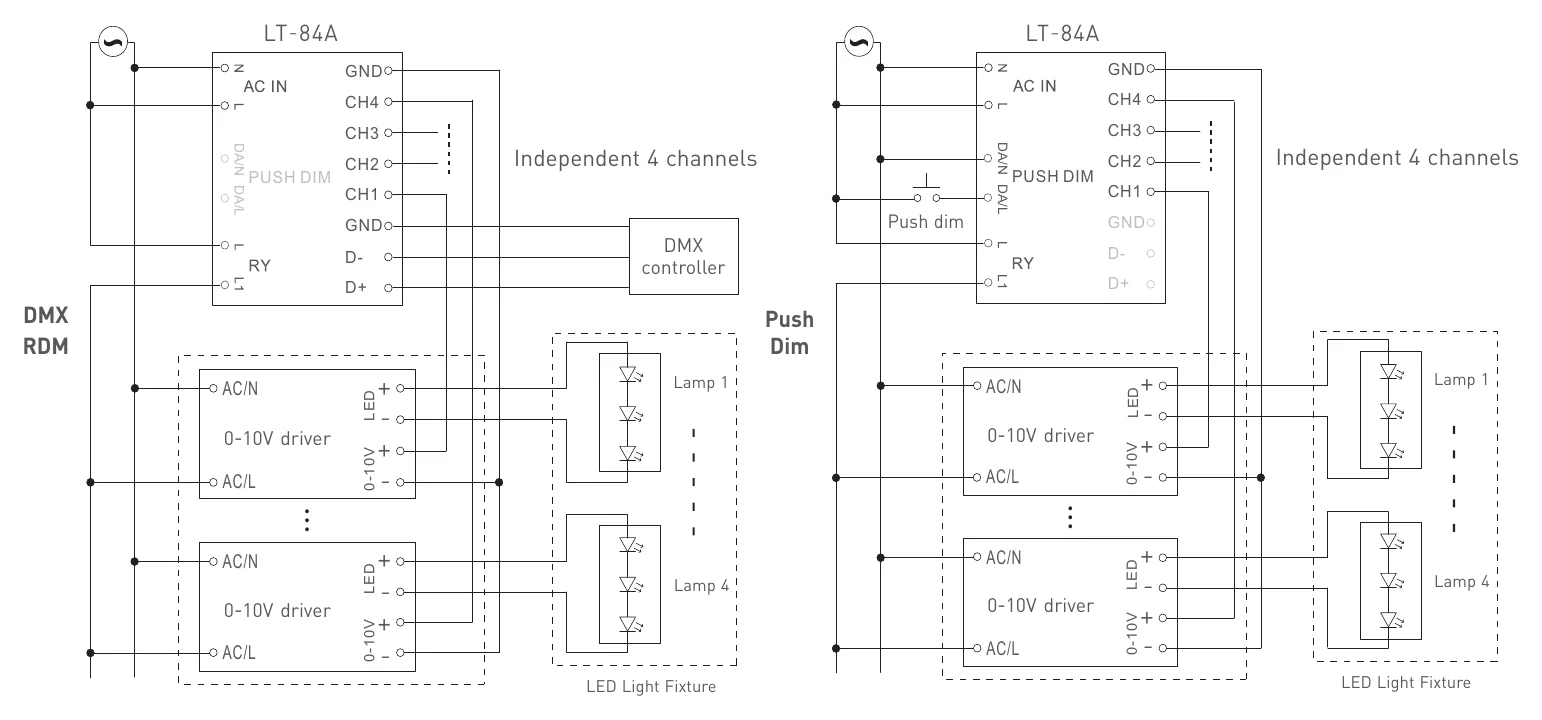

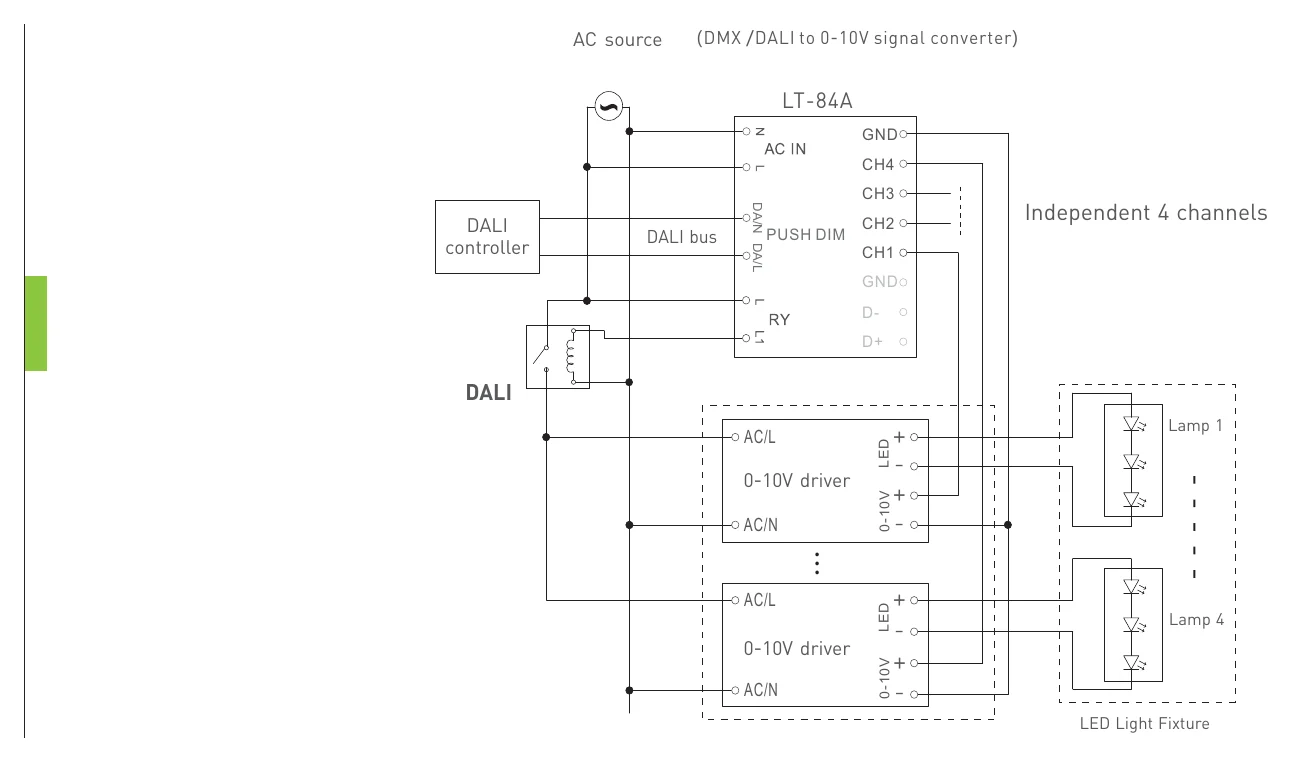

Yes. This model includes a built-in relay for ON/OFF control of the LED driver, in addition to its dimming functions. That can be useful where both switching and dimming behavior are required from the same unit.
Is this model appropriate for indoor commercial lighting systems?
Yes, the LT-84A is specified as suitable for indoor environments. Its support for DALI, DMX/RDM, Push Dim, relay-based ON/OFF control, and 0 to 100% dimming makes it relevant for indoor architectural or commercial LED control applications.
What are the key operating and protection characteristics of the LT-84A?
The LT-84A offers a 0 to 100% dimming range, soft-on and fade-in dimming, and full protective plastic housing. It is also listed as compliant with Safety Extra Low Voltage standards and operates in ambient temperatures from -30 degrees C to 55 degrees C.
How does the LT-84A compare with a basic single-protocol dimming interface?
The LT-84A stands out by combining DMX/RDM, DALI, and Push Dim support in one model rather than limiting control to a single protocol. It also adds 4 channel output and a built-in relay for LED driver ON/OFF control, which gives it broader integration flexibility than a simpler dimming-only interface.
