Ltech

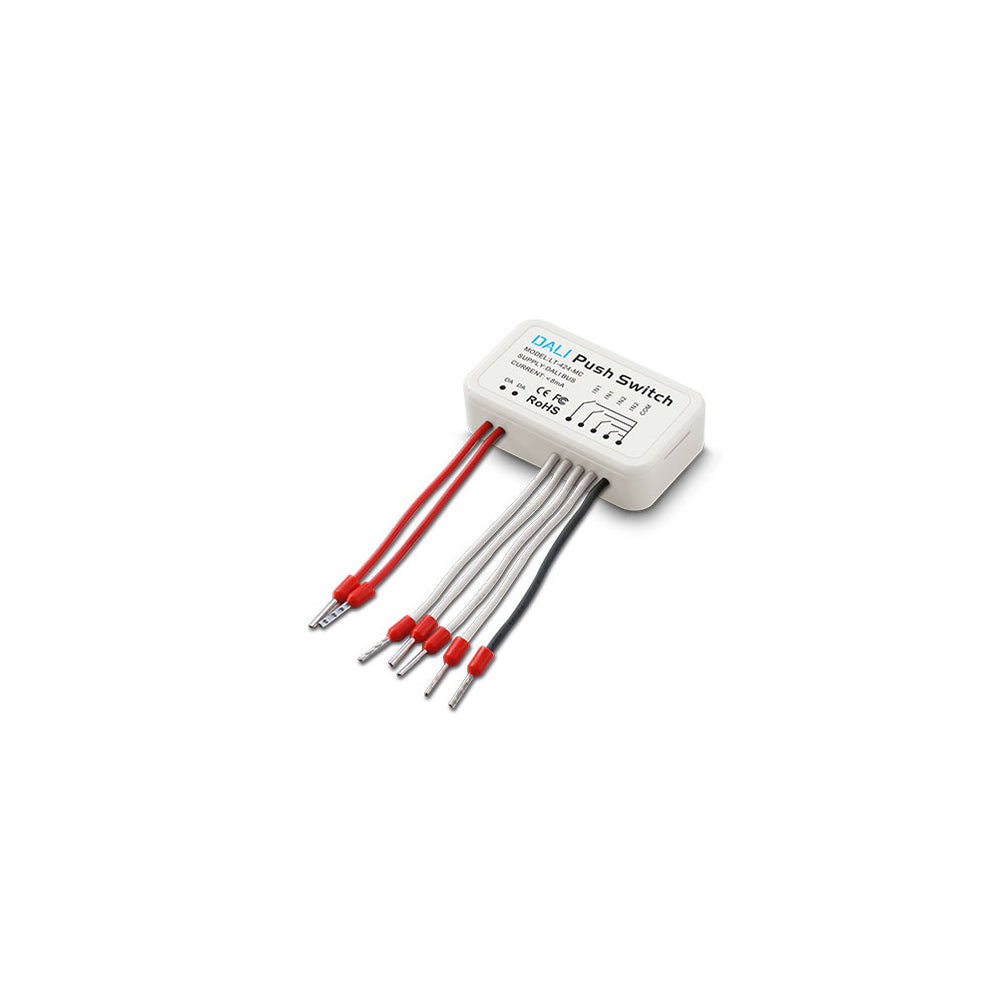

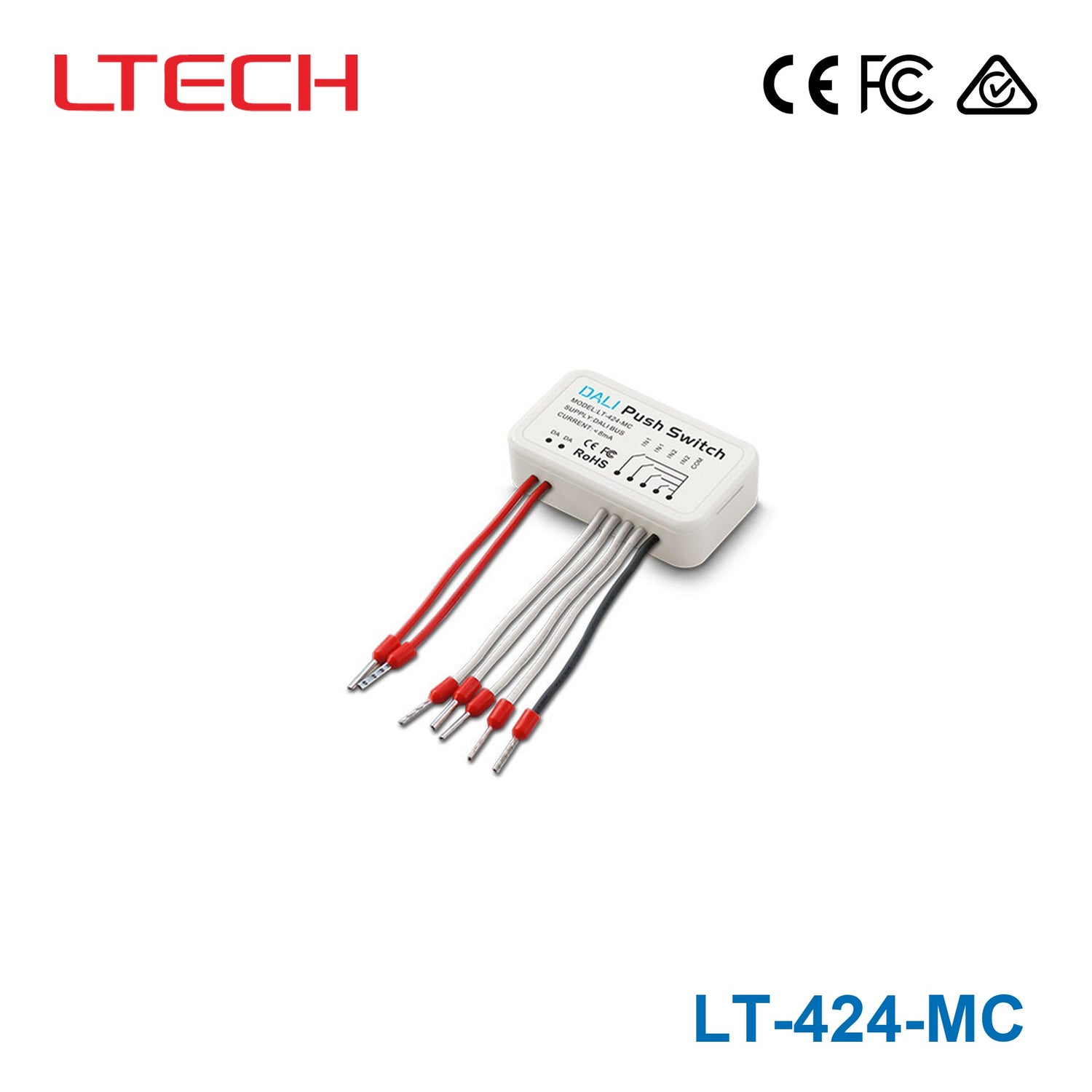

Ltech LT-424-MC Dali Group Push Switch

SKU LT-424-MC
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

Features

  • PC plastic shell.
  • Small size, easy installation.
  • No external power supply, simply connected to the DALI bus.
  • Low voltage operation, safe and reliable.
  • Applicable to home, office, hotel, supermarket etc.
  • Ordinary reset switch can achieve DALI intelligent control.

Specifications

LT-424-MCSpecifications from the official datasheet (2015-06-15 edition)Download datasheet PDF

Main Characteristics

Interface Protocol
DALI (IEC62386)
Mode
Broadcast
Power Supply
DALI Bus
Dimensions
L48×W28×H14(mm)
Current
≤8mA (static)
Package Size
L50×W40×H30(mm)
Working Temperature
-30℃~55℃
Weight(G.W.)
32g

Certifications & ratings

Certification marks
FCC, CE, RoHS, SGS

Technical drawings

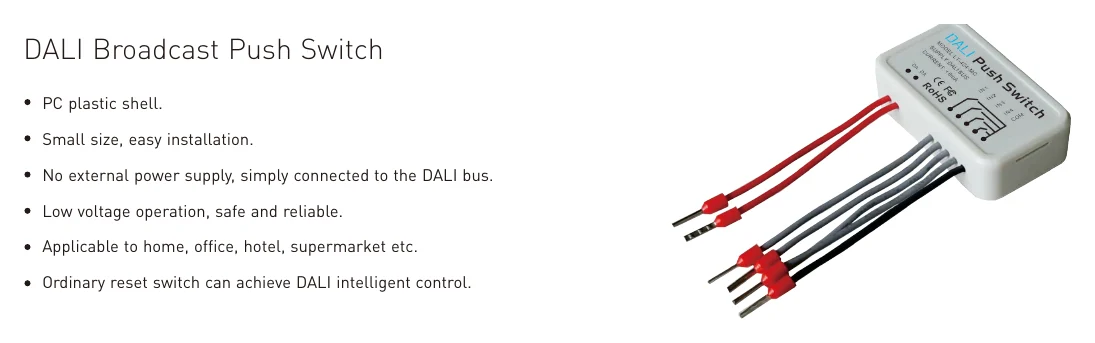

LT-424-MC DALI Broadcast Push Switch
DALI Broadcast Push Switch

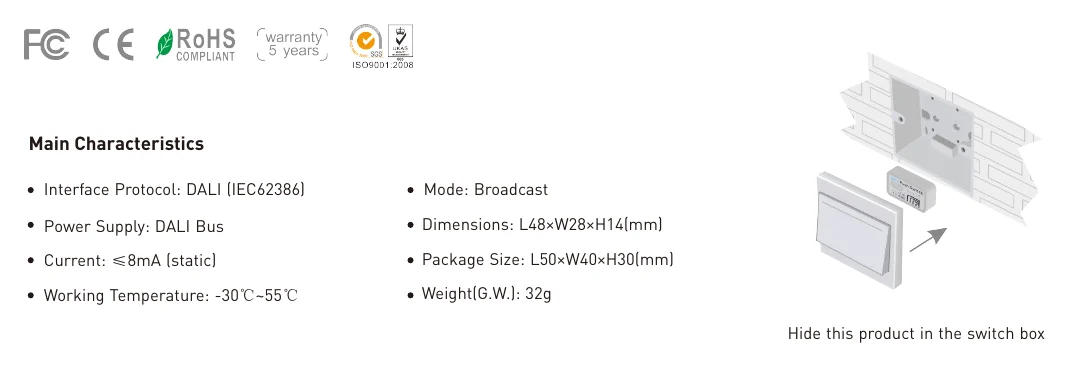

LT-424-MC Main Characteristics
Main Characteristics

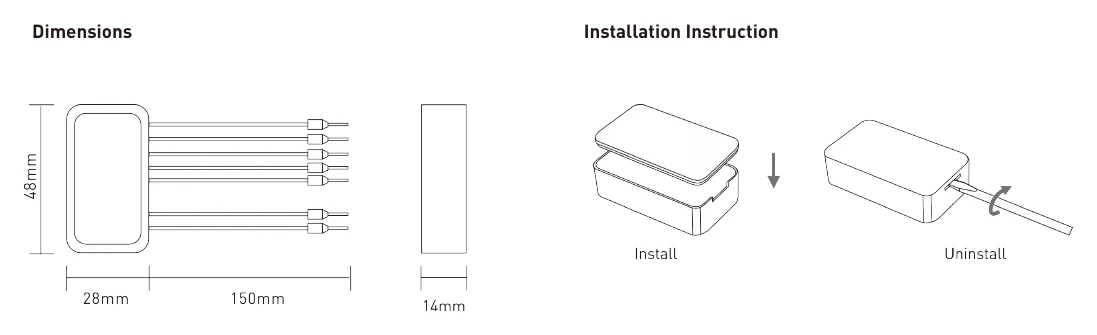

LT-424-MC Dimensions
Dimensions

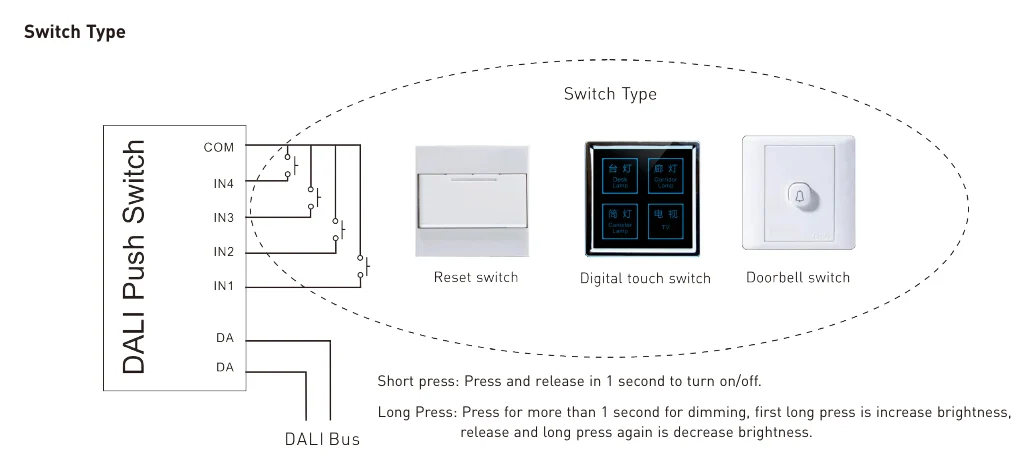

LT-424-MC Switch Type
Switch Type

Downloads

FAQ

What is the Ltech LT-424-MC used for?

The Ltech LT-424-MC is a DALI group push switch intended for lighting control applications that use the DALI dimming protocol. It is suited to commercial and professional projects where grouped lighting control is needed. This model is part of Ltech's LED controller product family.

What control protocol does the LT-424-MC support?

This model uses DALI for dimming control. If your project is built around DALI-based lighting control, the LT-424-MC aligns with that protocol. No other control method is specified in the product data.

Is the LT-424-MC a good fit for commercial or B2B lighting projects?

Yes, the product categorization indicates it is positioned for B2B controller and standalone controller applications. That makes it relevant for professional lighting environments where DALI group control is part of the design. Buyers sourcing for business installations may find it appropriate for standardized control setups.

What is the operating temperature range of the Ltech LT-424-MC?

The specified operating temperature range is -30°C to 55°C. This gives the LT-424-MC a broad environmental range for demanding indoor or protected-use conditions. Buyers should still confirm that the full project environment stays within those limits.

How much does the LT-424-MC weigh?

The specified weight for the Ltech LT-424-MC is 32g. Its low weight may be useful when evaluating compact control components for larger project bills of material. The physical dimensions are L48×W28×H14(mm).

What warranty is offered for the Ltech LT-424-MC?

The provided product data does not specify a warranty period for the Ltech LT-424-MC. Buyers should refer to the seller or manufacturer policy for warranty terms and conditions.
