Ltech

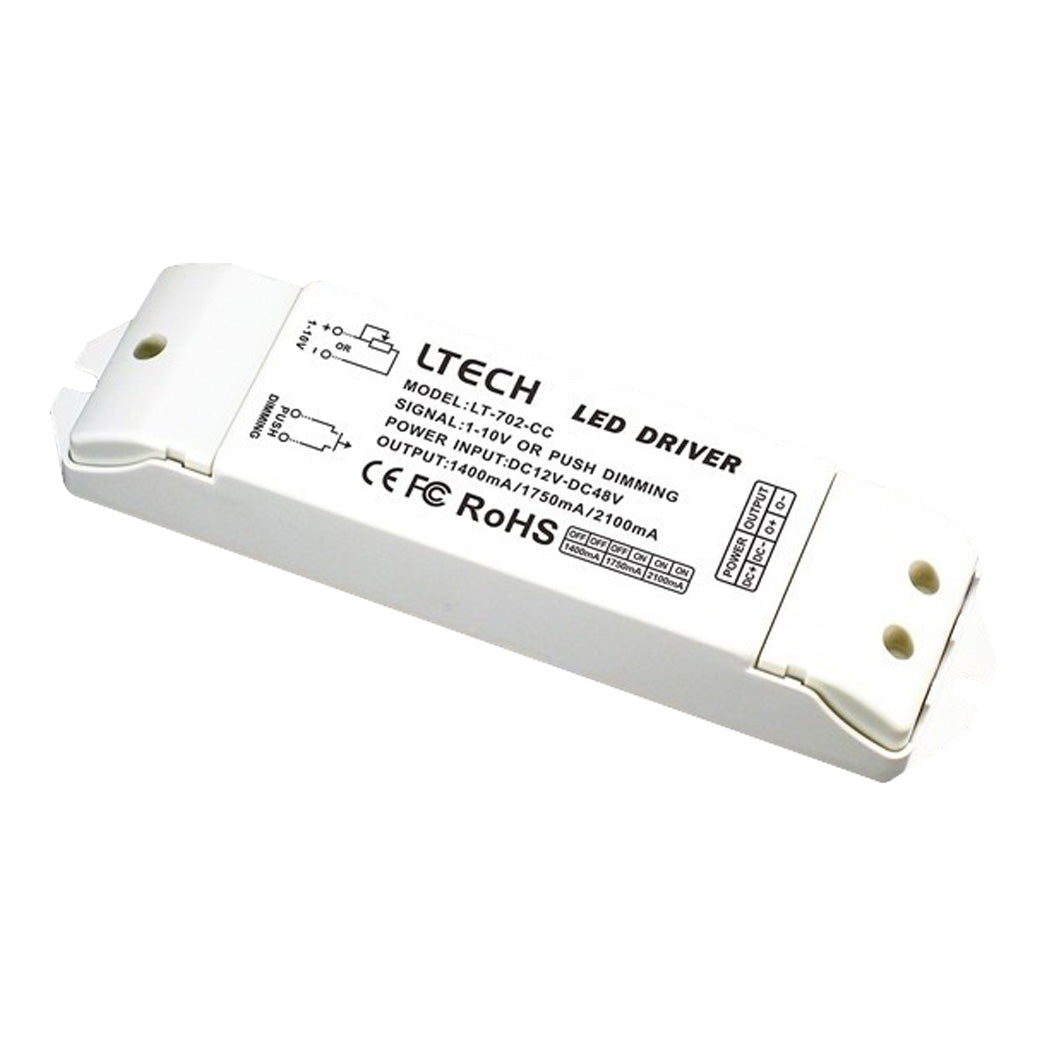

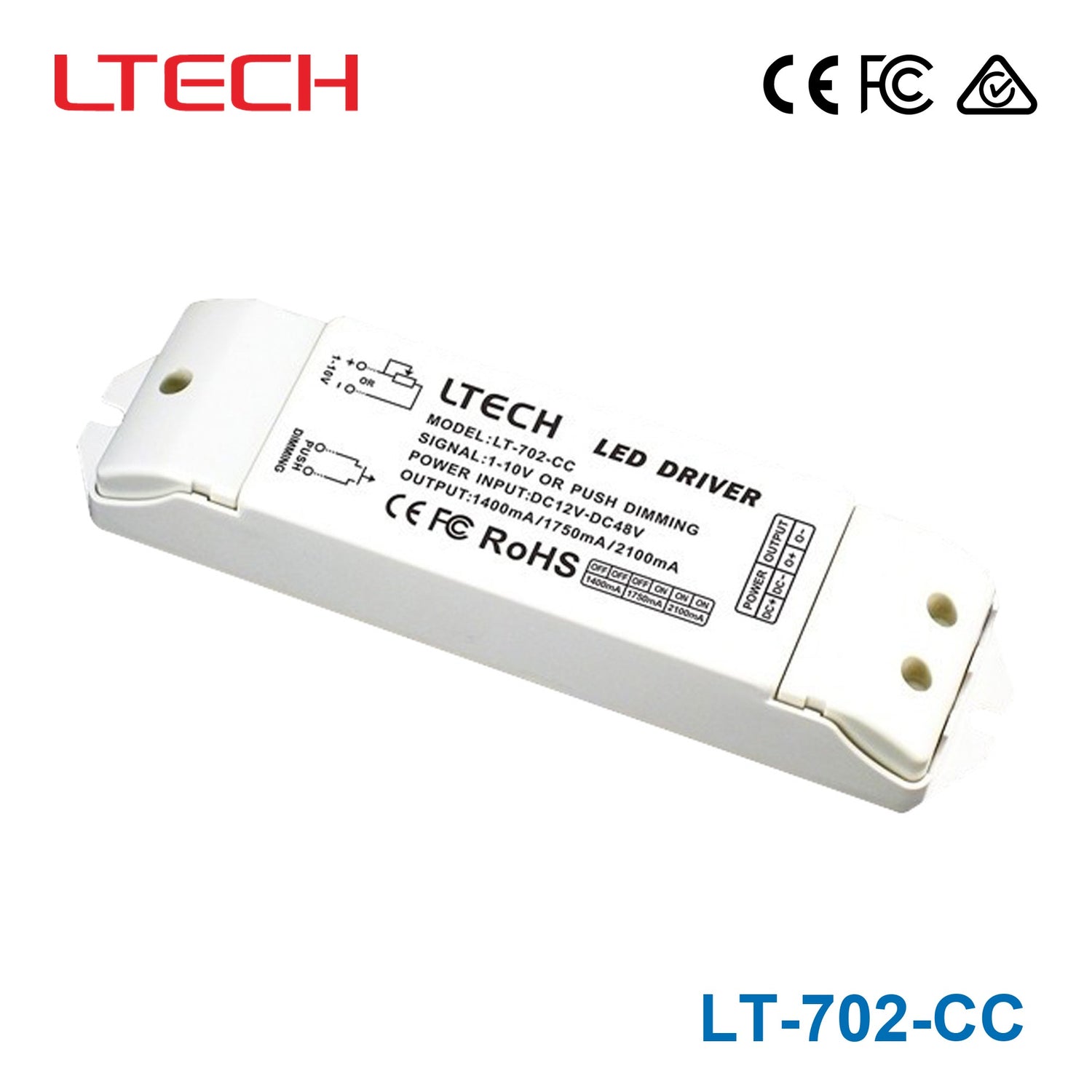

Ltech LT-702-CC 1-10V Led Dimming Driver

SKU LT-702-CC
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

LT-702-CC is the DC3V~DC46V output model of this series.

LTECH developed a new 0/1-10V to PWM dimming driver which has solved the compatible problem of the fluorescent dimming system and the LED illumination. LED lamps can be controlled by many traditional intelligent dimming systems such as Lutron, Dyalite, Tridonic , Schneider, Clipsal, Osram, Philips, ABB, etc. LT-702-CC is compatible with the active/passive 0-10V, 1-10V, 10VPWM and the PUSH BUTTON insert dimming, optional with 3 in 1 current 1400mA/1750mA/2100mA, Wide range support 4.2W~96.6W LED connection and ensure accurate current output automatically. With above advantage, one LT-702-CC could be the substitute of more than 10 models in the same kind, make it much more convenient for sales and installations. LT-702-CC, 0-100% PWM dimming, output with the dimming curve that is more palatable to human vision, provide the user with more comfortable and natural lighting experience. ※ By working with our LT-701-10A/LT-701-CC 1-10V dimming driver, the basic issue that related LED projects and needs 1-10V dimming can be solved.

Specifications

LT-702-CCSpecifications from the official datasheet (2014-03-06 edition)Download datasheet PDF

Product Parameter

Input signal
0-10V, 1-10V, 10V PWM, resistor or push button
Power Supply Chosen
DC CV SMPS
Input voltage
DC12V~DC48V
Output voltage
DC3V~DC46V
Output current
CC 1400/1750/2100mA 3 in 1 ×1CH
Output power
4.2W~96.6W
Working Temp.
-30°C~55°C
Dimension
L175×W44×H30mm
Package Size
L178×W48×H33mm
Weight (G.W)
125g

Certifications & ratings

Certification marks
FCC, CE, RoHS, ISO9001:2008, UKAS
Test conditions and notes7
  1. 1) The product shall be installed and serviced by a qualified person.
  2. 2) This product is non-waterproof. Please avoid the sun and rain. When installed outdoors please ensure it is mounted in a water proof enclosure.
  3. 3) Good heat dissipation will prolong the working life of the controller. Please ensure good ventilation.
  4. 4) Please check if the output voltage of any LED power supplies used comply with the working voltage of the product.
  5. 5) Please ensure that adequate sized cable is used from the controller to the LED lights to carry the current. Please also ensure that the cable is secured tightly in the connector.
  6. 6) Ensure all wire connections and polarities are correct before applying power to avoid any damages to the LED lights.
  7. 7) If a fault occurs please return the product to your supplier. Do not attempt to fix this product by yourself.

Downloads

FAQ

What does the Ltech LT-702-CC do?

The LT-702-CC is a 1-10V LED dimming driver designed to convert compatible dimming control signals into constant current output for LED lighting. It is intended for commercial and professional LED applications where smooth dimming and constant current output are important.

What dimming control types is the LT-702-CC compatible with?

This model is compatible with active and passive 0-10V, 1-10V, and 10V PWM dimming signals. It also supports push button dimming, which gives it broader compatibility than drivers limited to a single control method.

What are the main electrical ratings of the LT-702-CC?

The LT-702-CC is rated for up to 96.6 W output power and up to 46 V output voltage. Its listed rated current is 2100 mA, and the product description also notes optional 3-in-1 current settings of 1400 mA, 1750 mA, and 2100 mA.

Is the LT-702-CC suitable for demanding indoor or commercial environments?

This model is specified for operation from -30°C to 55°C, which supports use in a wide range of non-residential environments. Its robust design makes it suitable for professional projects where long-term reliability matters.
