Ltech

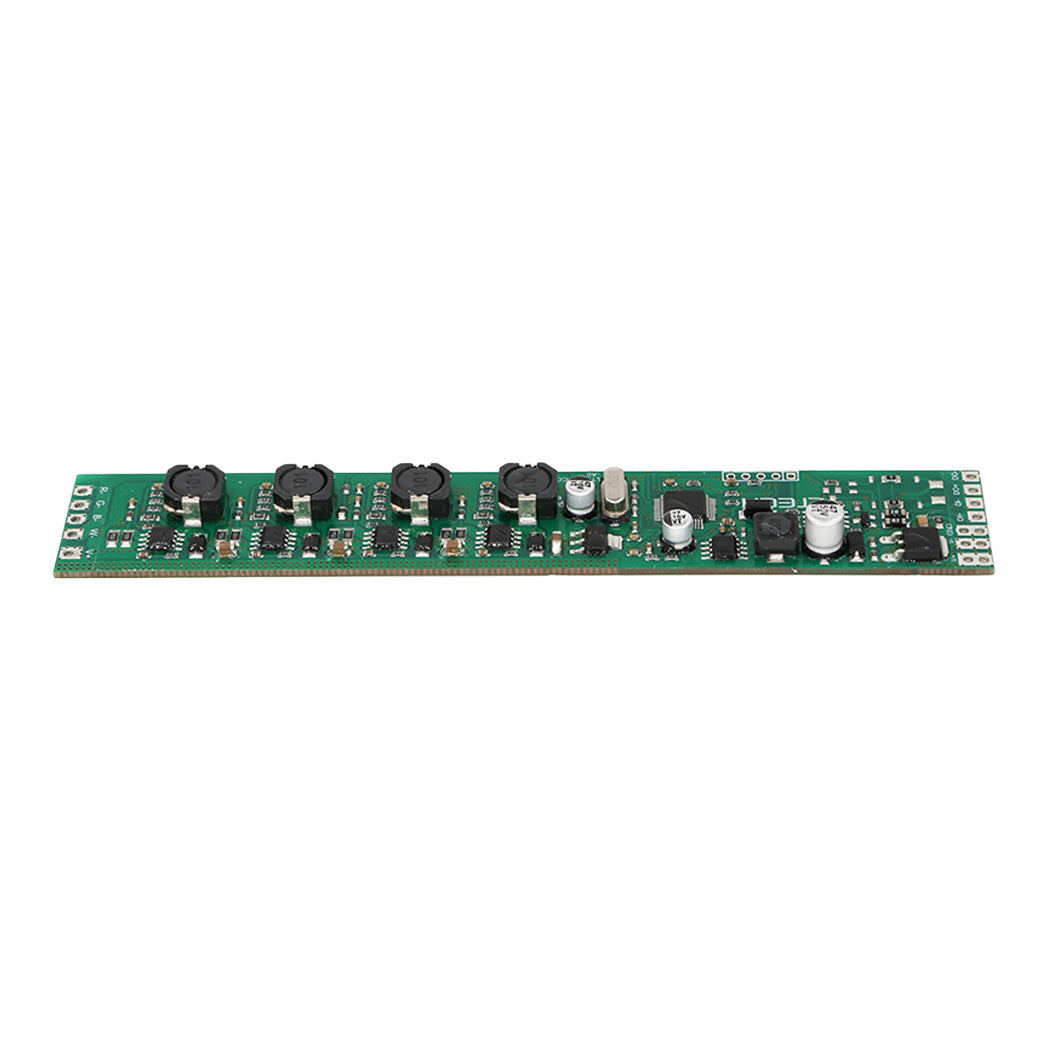

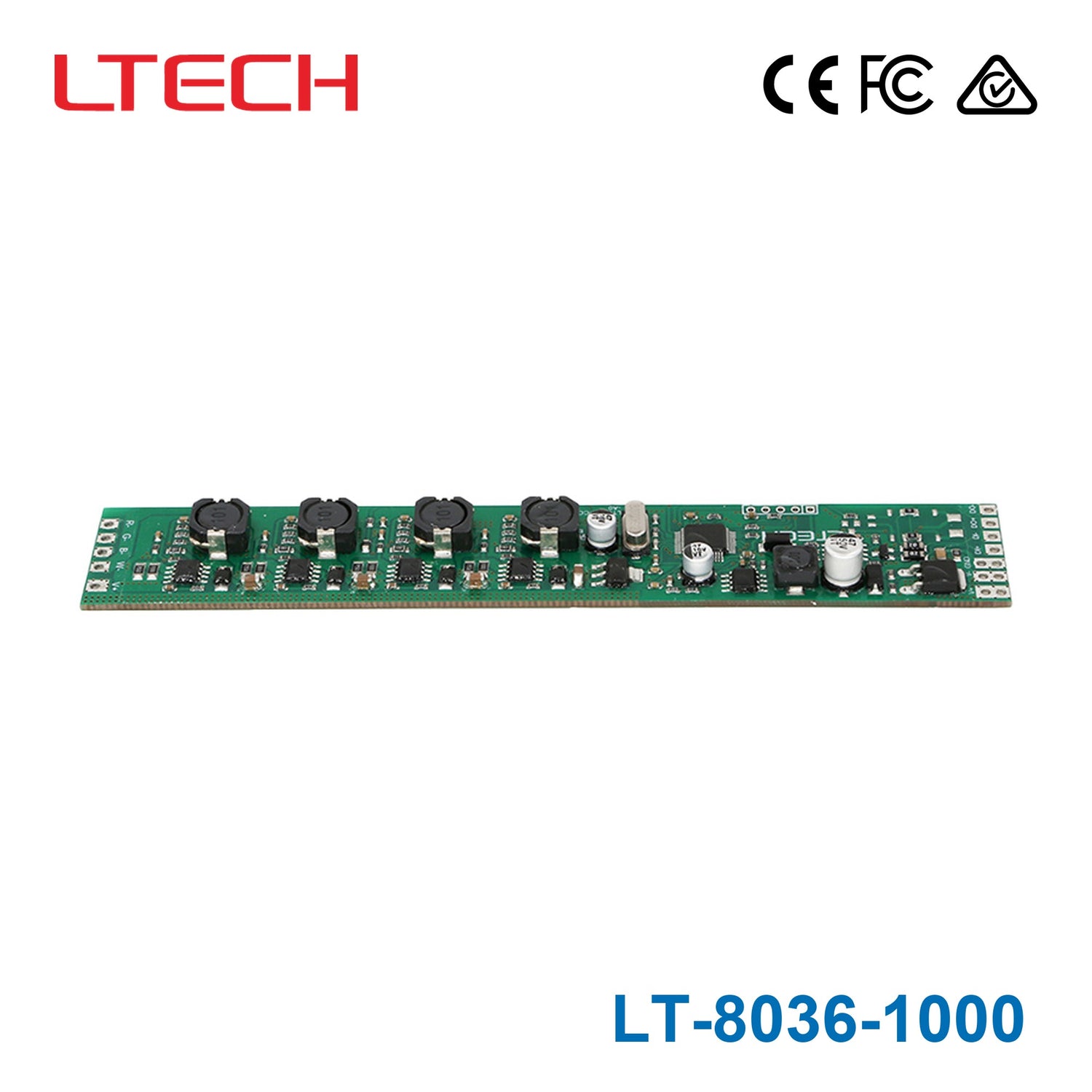

Ltech LT- 8036-1000 DMX/RDM CC Decode Circuit Board

SKU LT-8036-1000
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

LT-8036-1000 is the 7.5~33Vdc output model of this series.

LT-8036-1000 is a PCB CC driver, which is designed especially for DMX512 high power wall washer, project lights. Suitable for controlling single color, tunable white, RGB, RGBW LED lights. With standard RDM long range devices management function, coding line is not required. Work with WiFi-RDM01, setting the data of connected LT-8036-1000 via App, such as DMX address, dimming range, dimming mode, firmware updates, etc. Offline sync mode, preset 3 modes. The connected DMX devices will sync play the preset modes if over a period of time without DMX signal. which is a feasible solution for small control system.

Specifications

LT-8036-1000Specifications from the official datasheetDownload datasheet PDF

Product parameter

Model
LT-8036-1000
Name
DMX/RDM CC decode circuit board
Input signal
DMX512, RDM
Input voltage
12~36Vdc
Output voltage
7.5~33Vdc
Current load
CC 1000mA × 4CH
Output power
(0~7.5W...33W) × 4CH, Max. 132W
Dimming range
0~100%
Control mode
Dimming/CT/RGB/RGBW
Protection
Short circuit / Over load / Anti-reverse connection
Offline mode
Static white, jump, smooth
Working Temp.
-30°C~65°C
Dimensions
-60°C~150°C
Product size
L155 × W26 × H10(mm)
Weight (G.W.)
310g

Certifications & ratings

warranty
5 years
Certification marks
FCC, CE, RoHS, ISO9001:2008, UKAS

Technical drawings

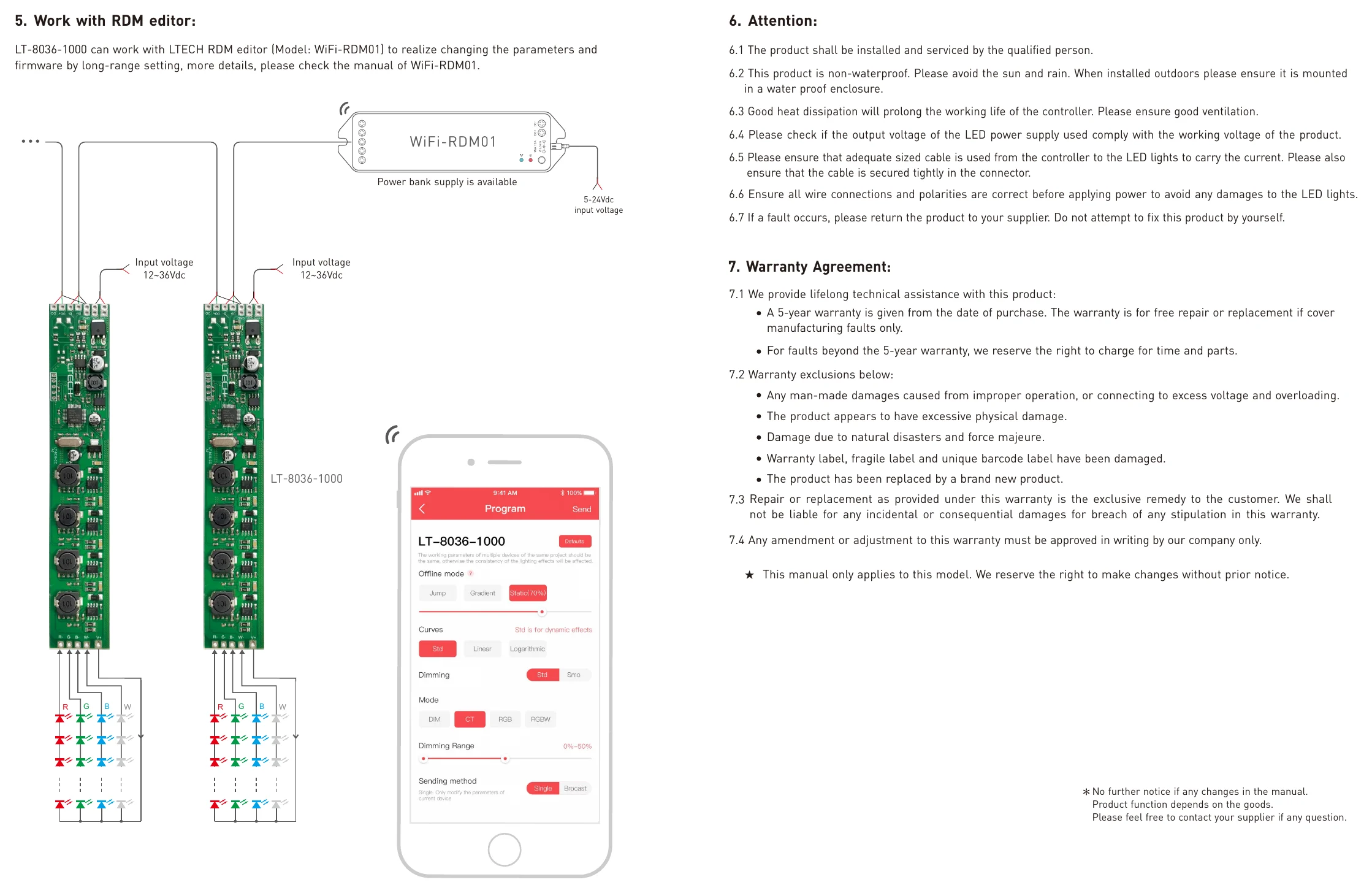

LT-8036-1000 5. Work with RDM editor
5. Work with RDM editor

Downloads

FAQ

What kind of LED lighting is the Ltech LT-8036-1000 designed for?

The LT-8036-1000 is designed for DMX512 high-power lighting such as wall washers and project lights. It is suitable for single color, tunable white, RGB, and RGBW LED fixtures that use a constant current control approach.

What are the main output specifications of the LT-8036-1000?

This model is rated for 132 W output power, 33 V output voltage, and 1000 mA rated current. Those specs make it a constant current decode board intended for compatible high-power LED lighting applications.

Does the LT-8036-1000 support RDM management?

Yes. The LT-8036-1000 includes standard RDM long-range device management, which allows settings such as DMX address, dimming range, dimming mode, and firmware updates to be managed when used with compatible RDM control tools.

What happens if DMX signal is lost?

The LT-8036-1000 includes an offline mode with Static white, jump, and smooth presets. If DMX signal is absent, connected devices can continue playing these preset modes, which makes it practical for smaller control systems.

Is the LT-8036-1000 suitable for demanding temperature conditions?

This model is rated for operation from -30 C to 65 C. That wide temperature range supports use in installations where lighting control hardware may be exposed to colder or warmer operating environments.

How does the LT-8036-1000 compare with a basic non-RDM LED control board?

The LT-8036-1000 stands out by combining DMX512 decoding with standard RDM long-range management and offline synchronized preset playback. That makes it a better fit for projects that need device management features and fallback behavior beyond basic signal decoding alone.

What warranty is provided for the LT-8036-1000?

The LT-8036-1000 carries a 5-year warranty. For commercial buyers, that longer warranty period can be relevant when evaluating lifecycle cost and long-term fixture support.
