Ltech LT-3600RF LED RGB Controller
Please Login for Pricing
Description
Description

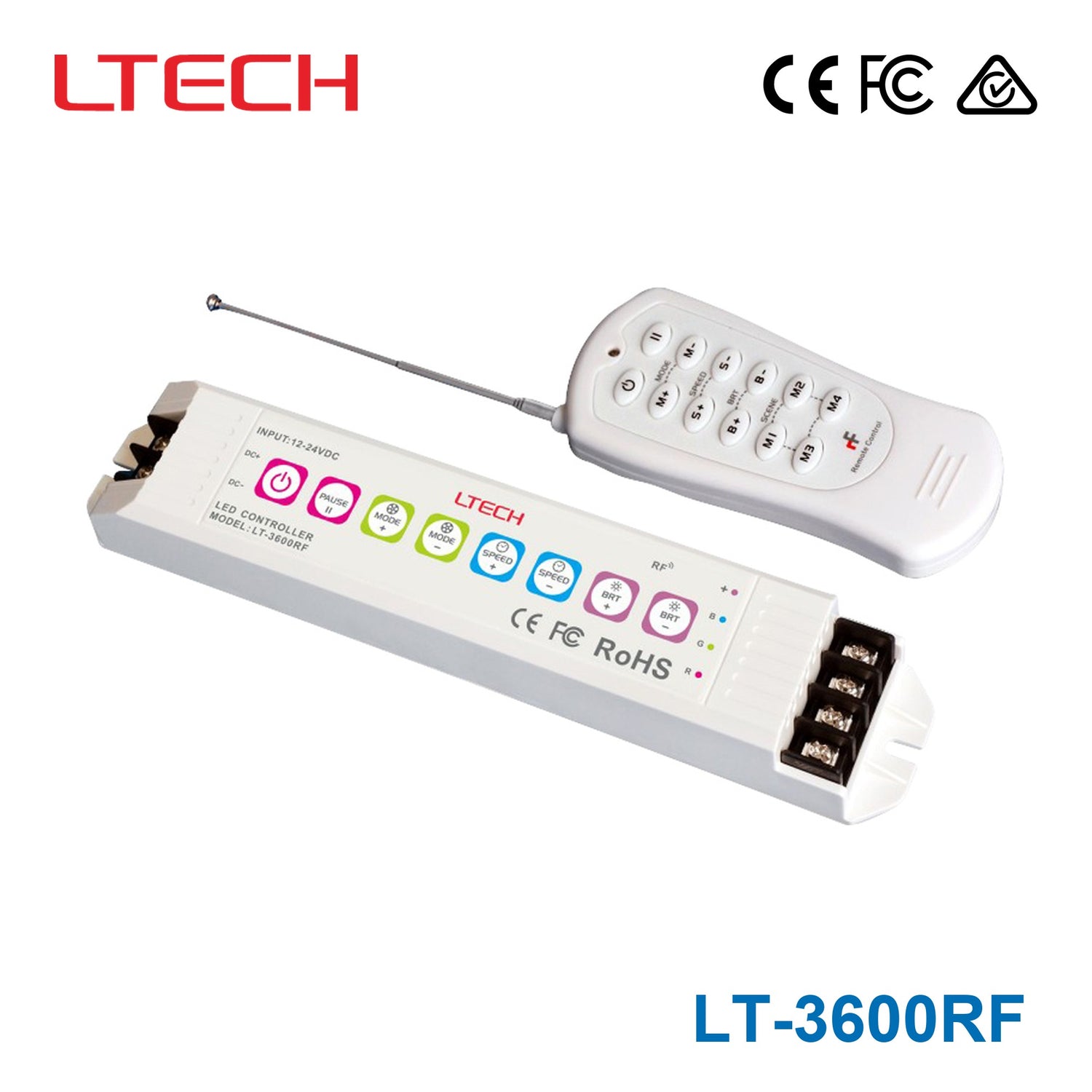

LT-3600 RF is a multi-functional RGB LED controller, adopts advanced PWM(Pluse-Width Modulation)control technique, built-in 16 modes. Smooth changing effect,without flicker; With unique touch technique,the controller has 8 touch buttons,which are used for choosing ON/OFF,PAUSE,MODE+/-,SPEED+/-, BRT+/-,Also can use RF wireless remote for longdistance control.The controller has ID learning function,which suitable for the remote control with same model but different coded address.It can automatically adapt to DC12-24V input,suitable for most conventional RGB LED products,such as LED strips, LED modules,etc. and all low-power RGB LED lights whose current is limited by resistors can be controlled
Specifications
Specifications
-
BrandLtech
-
Power Rating432 Watt
-
Output Voltage24 Volt
-
Rated Current6 Ampere
-
Input Voltage12V~24V
-
Standards MetCE,FCC,RCM
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~55°C
-
Warranty5 Year
-
Length21.1 cm
-
Width3 cm
-
Height3 cm
-
Weight0.23 kg
