Ltech

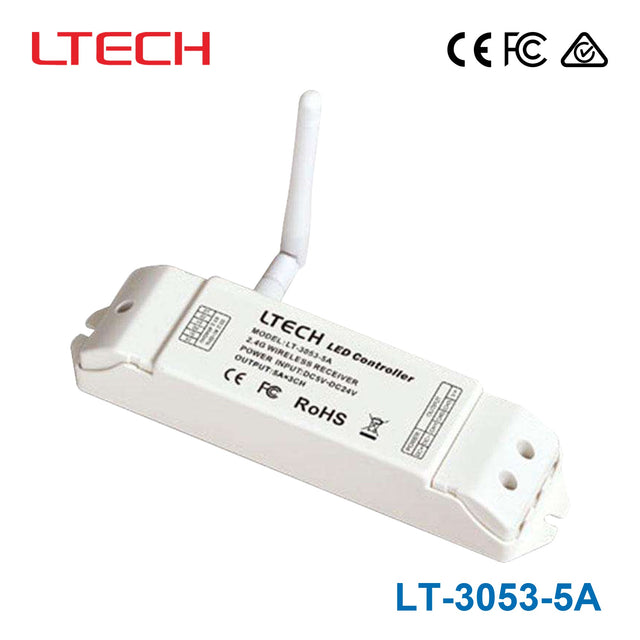

Ltech LT-3053-5A Wireless Transmitter

SKU LT-3053-5A
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

Wireless LED power repeater transfer 300Hz~20KHz PWM signal to expand power. It is consisted of emitter LT-3050 and receiver LT-3053-5A/LT-3053-5A. One emitter can match unlimited receiver if using the same frequency. supporting sync control on multiple receivers within effective distance. A very good solution for the LED project needs sync control wirelessly. Such as the wireless remote control between buildings, both sides of the roads, river banks and bridges, etc. Adopt 2.4GHz global open ISM frequency channel, 64 groups wireless network can be chosen independently to avoid interference. Use relay settings or connect to booster antenna to further the communication distance.

Specifications

LT-3053-5ASpecifications from the official datasheet (2014-10-10 edition)Download datasheet PDF

LT-3050 wireless transmitters

Input voltage
DC5V~DC24V
Input signal
PWM x3CH
Working frequency channel
2.4GHz ISM 64 channels
Maximum transmitted power
20dBm
Communication distance
350m (weather/environment affects the actual values)
working temperature
-20℃ ~ 55℃
Dimension
L175×W44×H30mm
Package Size
L178×W48×H33mm
Weight (G.W)
135g

LT-3053-5A wireless transmitters

Input voltage
DC5V~DC24V
Max current load
5A×3CH Max 15A
Max output power
75W/180W/360W(5V/12V/24V)
Working frequency
2.4GHz ISM 64 channels
Communication distance
350m (weather/environment affects the actual values)
Receiver sensitivity
-96dBm
working temperature
-20℃ ~ 55℃
Dimension
L175×W44×H30mm
Package Size
L178×W48×H33mm
Weight (G.W)
140g

LT-3054-5A wireless transmitters

Input voltage
DC5V~DC24V
Max current load
5A×4CH Max 20A
Max output power
100W/240W/480W(5V/12V/24V)
Working frequency
2.4GHz ISM 64 channels
Communication distance
350m (weather/environment affects the actual values)
Receiver sensitivity
-96dBm
working temperature
-20℃ ~ 55℃
Dimension
L175×W44×H30mm
Package Size
L178×W48×H33mm
Weight (G.W)
140g

Certifications & ratings

warranty
5 years
ISO
ISO9001:2008
Certification marks
FCC, CE, RoHS

Downloads

FAQ

What does the Ltech LT-3053-5A do in a wireless LED control system?

The LT-3053-5A is a wireless LED power repeater designed to transfer a 300Hz to 20KHz PWM signal so LED power can be expanded while keeping control synchronized. It is used as part of the LT-3050/LT-3053-5A wireless repeater system for projects that need coordinated dimming across multiple LED loads.

Is the LT-3053-5A a standalone controller?

No. This model is described as part of a two-piece wireless repeater setup consisting of the LT-3050 emitter and the LT-3053-5A receiver. It is intended for signal repeating and power expansion rather than operating as a standalone LED controller by itself.

What electrical capacity does the LT-3053-5A support?

The LT-3053-5A supports DC5V~DC24V input, with a maximum current load of 5A per channel (3 channels, max 15A total). It delivers up to 75W at 5V, 180W at 12V, or 360W at 24V. These specs make it suitable for higher-load LED applications that need PWM signal repeating.

What kinds of projects is the LT-3053-5A intended for?

This model is positioned for LED projects that need synchronized wireless control across multiple areas. The product description specifically highlights applications such as building lighting, both sides of roads, river banks, and bridges where running coordinated control over distance is important.

What operating environment is the LT-3053-5A rated for?

The LT-3053-5A has a stated operating temperature range of -20°C to 55°C. It also carries a 5-year warranty, which supports use in demanding commercial and project-based LED control environments within that temperature window.
