Ltech

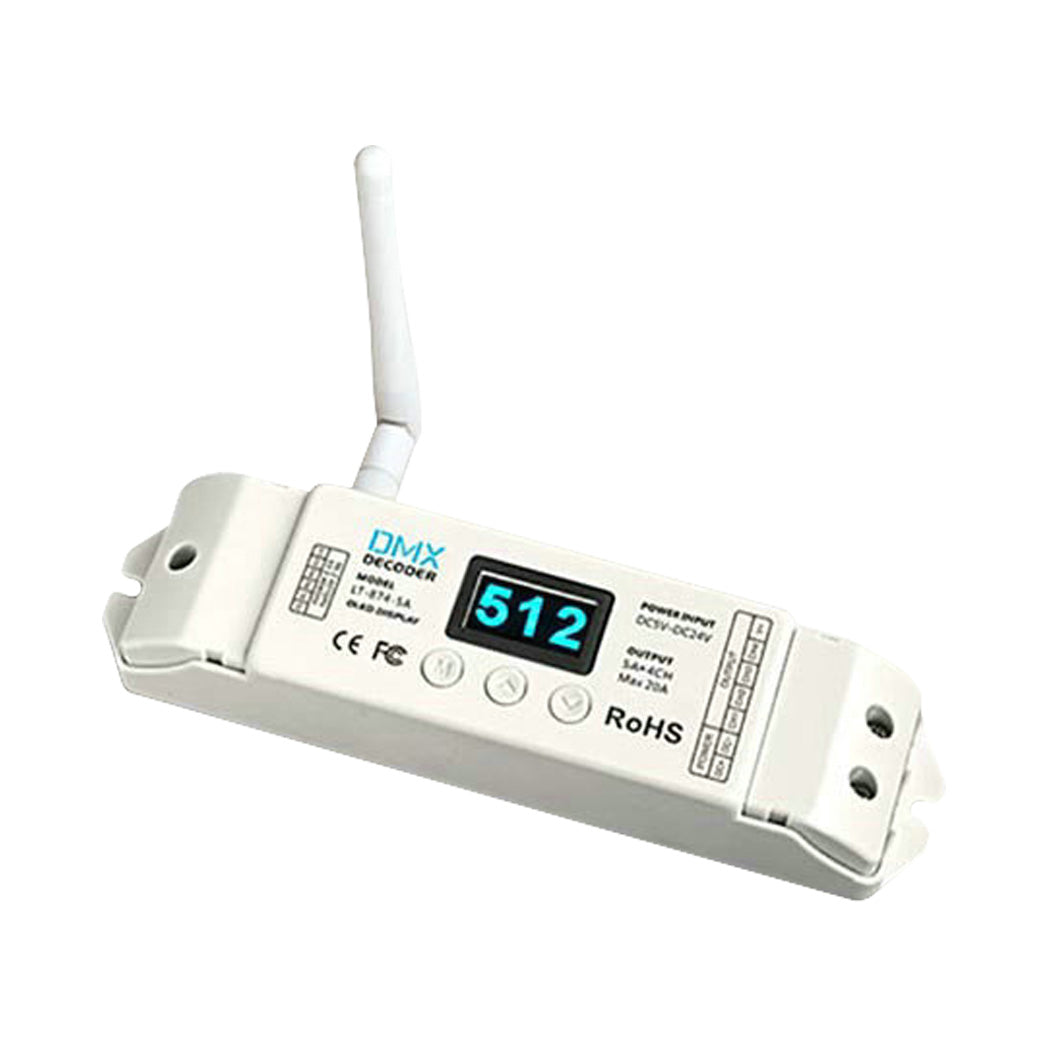

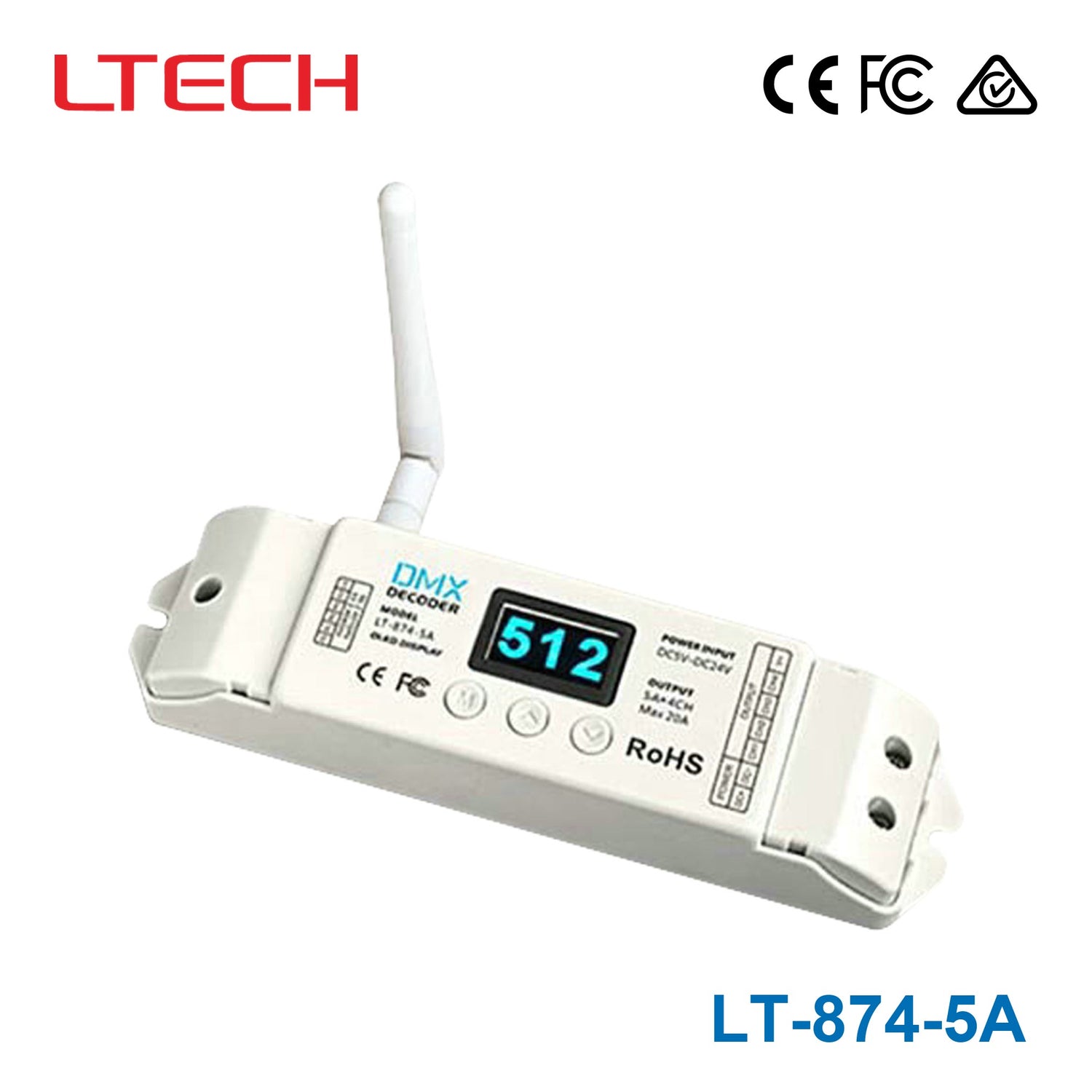

Ltech LT-874-5A 2.4G Wireless DMX512 Decoder

SKU LT-874-5A
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

LT-874-5A 4CH CV DMX decoder with OLED display, receiving standard DMX512 protocol data wirelessly. use with our LT-870 wireless emitter, supporting point to point, point to multi-point communication. One emitter can match multiple receivers if using the same frequency, self-testing function also available. Adopt 2.4GHz global open ISM frequency channel, 64 groups wireless network can be chosen independently to avoid interference. Use relay settings or connect to booster antenna to further the communication distance.

Specifications

LT-874-5ASpecifications from the official datasheet (2016-08-18 edition)Download datasheet PDF

Technical Specs

Matched Wireless Emitter
LT-870
Receiving Wireless Signal
DMX512
Input Voltage
5~24Vdc
Max Current Load
5A×4CH Max 20A
Output Power
100W/240W/480W(5V/12V/24V)
Communication Distance
350m
Working Frequency
2.4GHz ISM 64 Channels
Receiver Sensitivity
-96dBm
Working Temperature
-30℃～55℃
Dimensions
L175×W44×H30(mm)
Package Size
L178×W56×H33(mm)
Weight (G.W)
175g

Protection

Protection
non-waterproof

Certifications & ratings

warranty
5 years
Certification marks
FCC, CE, RoHS, ISO9001:2008, CB

Downloads

FAQ

What is the Ltech LT-874-5A used for?

The Ltech LT-874-5A is a 2.4G wireless DMX512 decoder intended for LED control applications. It is suited for projects that need DMX512 signal decoding in a wireless-capable product format, including commercial and professional lighting environments.

What are the electrical ratings of the LT-874-5A?

This model supports an input voltage range of 5~24Vdc, with a maximum current load of 5A per channel (4 channels, max 20A total). The output power is rated at 100W, 240W, or 480W depending on the voltage setting (5V, 12V, or 24V respectively).

Can the LT-874-5A be used in demanding indoor or outdoor temperature conditions?

The specified operating temperature range is -30°C to 55°C. This wide environmental range allows for use in various indoor locations that may experience cold or warm conditions within those limits.

What control protocol does this model support?

This product is identified as a DMX512 decoder with 2.4G wireless capability in the model name and description. It is therefore aimed at applications where DMX512-based control is part of the system requirements.

How large or heavy is the LT-874-5A?

The gross weight for this model is 175g. Its relatively light weight can be useful for projects where component size and handling matter, especially across multi-unit commercial installations.

What warranty is offered for the LT-874-5A?

The published warranty period for this model is 5 years. That longer warranty term can be relevant for buyers planning professional or business lighting deployments with longer service expectations.
