Ltech

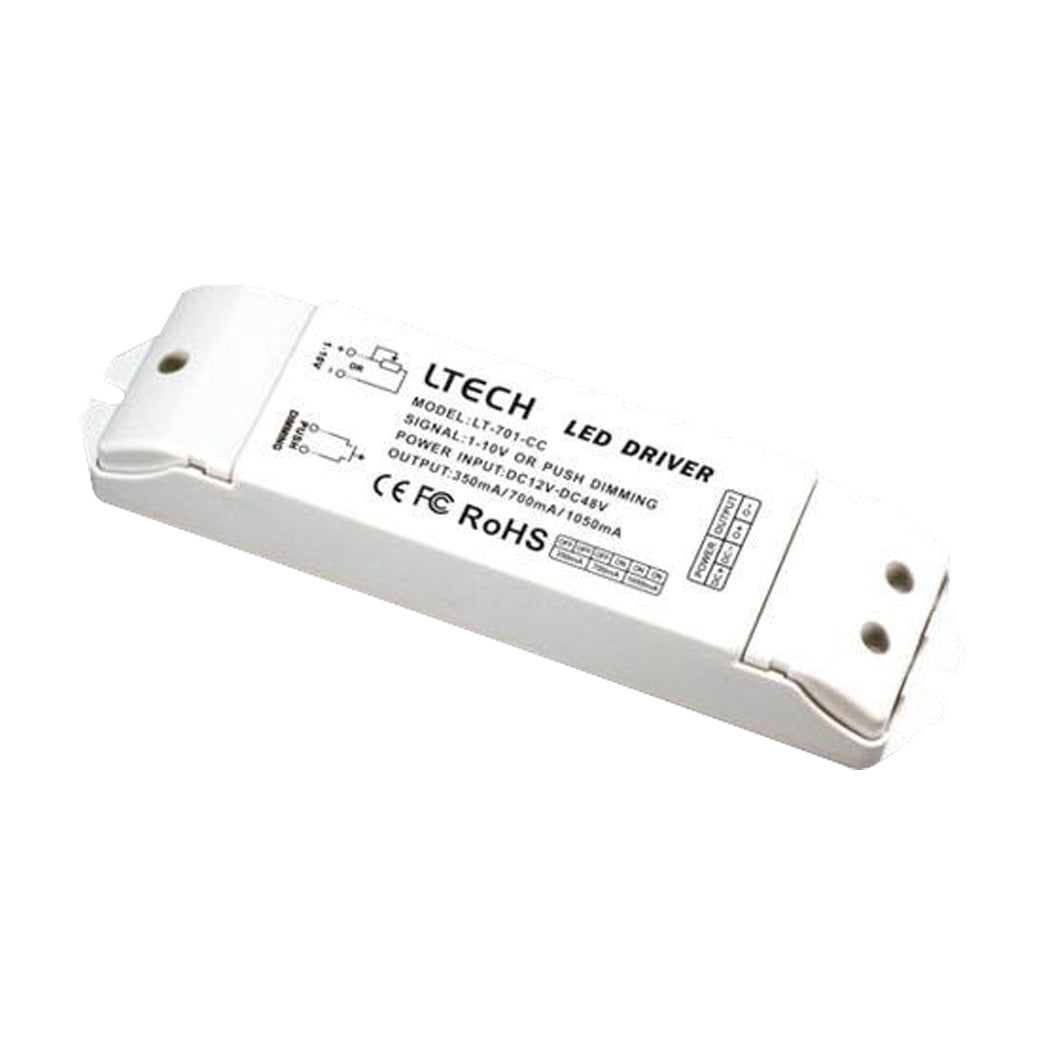

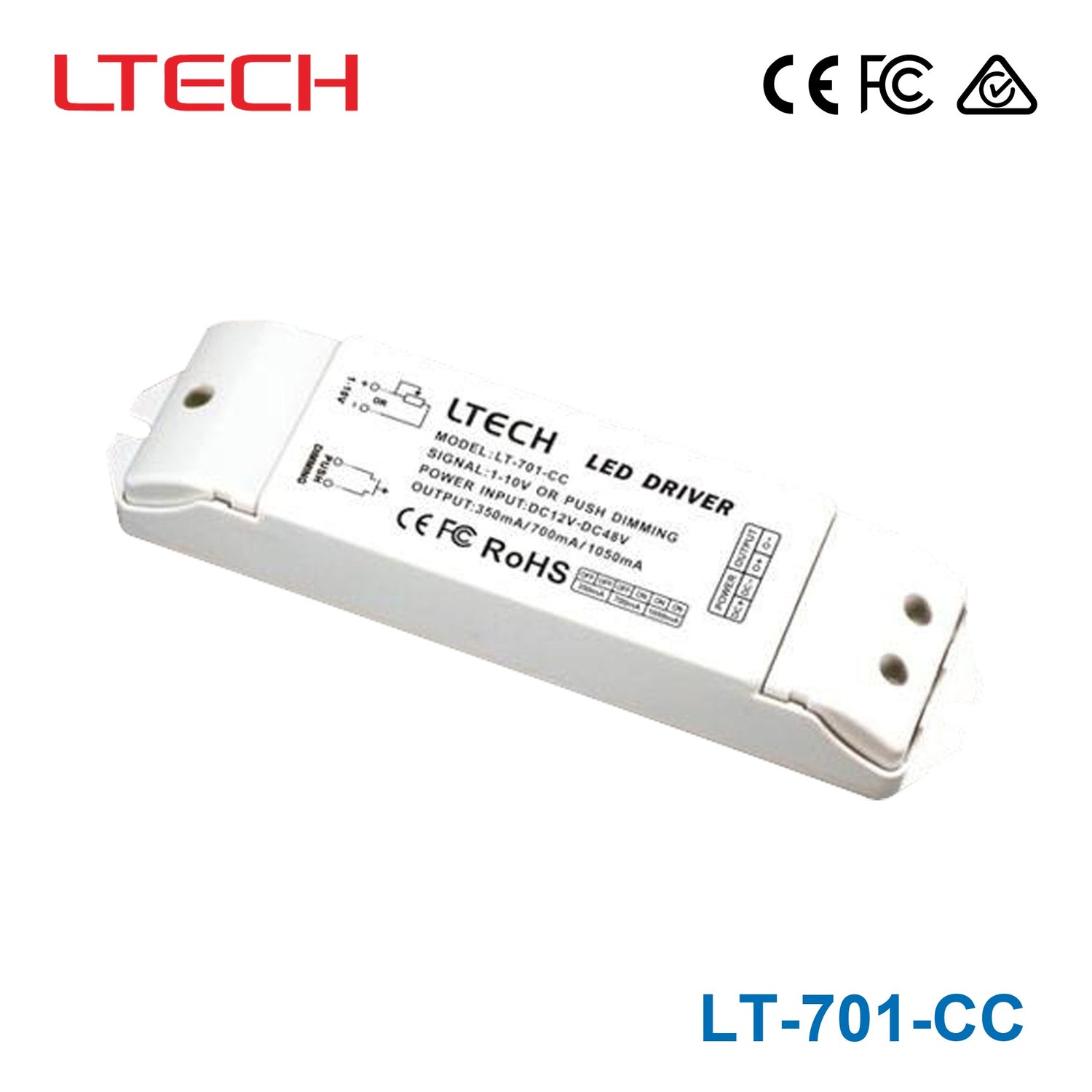

Ltech LT-701-CC 0/1-10V LED Dimming Driver

SKU LT-701-CC
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

LT-701-CC is the DC3V~DC46V output model of this series.

LTECH developed a new 0/1-10V to PWM dimming driver which has solved the compatible problem of the fluorescent dimming system and the LED illumination. LED lamps can be controlled by many traditional intelligent dimming systems such as Lutron, Dinalite, Tridonic, Schneider, Clipsal, Osram, Philips, ABB, etc. LT-701-CC is compatible with the active/passive 0-10V, 1-10V, 10VPWM and the PUSH BUTTON insert dimming, optional with 3 in 1 current 350mA/700mA/1050mA, Support a wide range of the connection of 1~13pcs(1~50W) high power LED and ensure accurate current output automatically. With above advantage, one LT-701-CC could be the substitute of more than 10 models in the same kind, make it much more convenient for sales and installations. LT-701-CC, 0-100% PWM dimming, output with the dimming curve that is more palatable to human vision, provide the user with more comfortable and natural lighting experience.

Specifications

LT-701-CCSpecifications from the official datasheet (2014-01-01 edition)Download datasheet PDF

Product Parameter

Signal Input
0-10V, 1-10V, 10V PWM, PUSH BUTTON
Power Supply Chosen
DC CV SMPS
Input Voltage
DC12V~DC48V
Output Voltage
DC3V~DC46V
Output Current
CC350/700/1050mA×1CH
Driving LEDs
1~13pcs 1W/3W/5W LED(1~50W) in series
Dimming Range
0~100%
Temperature Range
-30℃~55℃
Product Size
L175×W44×H30(mm)
Package Size
L178×W48×H33(mm)
Weight(G.W.)
125g

Certifications & ratings

warranty
5 years
ISO
ISO9001:2008
Certification marks
FCC, CE, RoHS
Test conditions and notes7
  1. 1) The product shall be installed and serviced by a qualified person.
  2. 2) This product is non-waterproof. Please avoid the sun and rain. When installed outdoors, please ensure it is mounted in a water proof enclosure.
  3. 3) Good heat dissipation will prolong the working life of the controller. Please ensure good ventilation.
  4. 4) Please check if the output voltage of any LED power supplies used comply with the working voltage of the product.
  5. 5) Please ensure that adequate sized cable is used from the controller to the LED lights to carry the current. Please also ensure that the cable is secured tightly in the connector.
  6. 6) Ensure all wire connections and polarities are correct before applying power to avoid any damages to the LED lights.
  7. 7) If a fault occurs please return the product to your supplier. Do not attempt to fix this product by yourself.

Downloads

FAQ

What does the Ltech LT-701-CC do?

The LT-701-CC is a 0/1-10V to PWM LED dimming driver for constant-current LED lighting. It is designed to bridge traditional 0-10V or 1-10V dimming systems with high-power LED loads while providing smooth 0-100% dimming performance.

What output options does the LT-701-CC support?

This model supports selectable constant-current output levels of 350mA, 700mA, and 1050mA. Its output voltage range is DC3V to DC46V, and it drives 1 to 13 LEDs (1W/3W/5W) in series, up to 50W total.

Is the LT-701-CC compatible with standard 0-10V and 1-10V dimming systems?

Yes. The product description states that the LT-701-CC is compatible with active and passive 0-10V and 1-10V dimming control, and it also supports push-button dimming. It is intended for use with many traditional intelligent dimming systems.

What makes the LT-701-CC different from a basic LED dimming driver?

The LT-701-CC is positioned as a flexible replacement for multiple driver models because it combines 0/1-10V compatibility, push-button dimming support, and multiple current options in one unit. It is also described as delivering a dimming curve that is more comfortable to human vision for a more natural lighting effect.

Is the LT-701-CC suitable for demanding commercial environments?

It is rated for operation from -30°C to 55°C, which supports use in a wide range of indoor commercial and industrial conditions. The unit also includes a 5-year warranty, which is relevant for buyers evaluating long-term deployment and maintenance expectations.
