Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

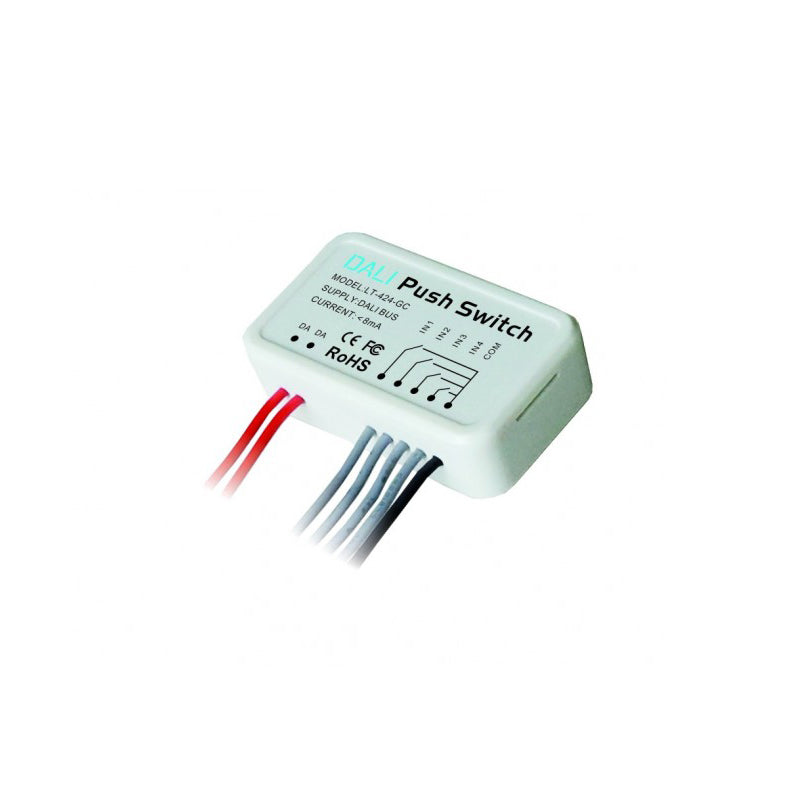

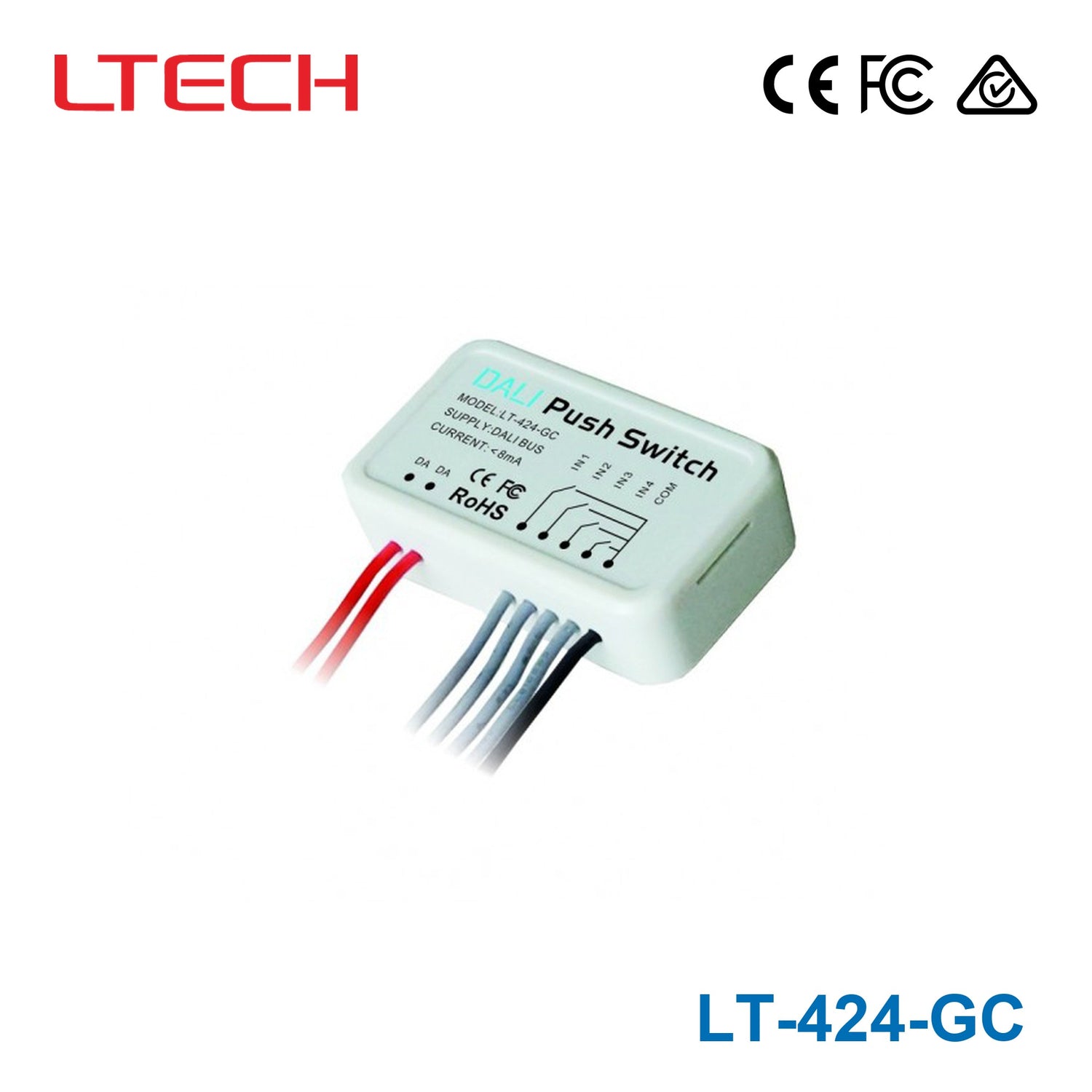

Ltech LT-424-GC Dali Group Push Switch

SKU LT-424-GC

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

Features

PC plastic shell.
Small size, easy installation.
No external power supply, simply connected to the DALI bus.
Low voltage operation, safe and reliable.
Applicable to home, office, hotel, supermarket etc.
Ordinary reset switch can achieve DALI intelligent control.

Specifications

LT-424-GCSpecifications from the official datasheet (2015-06-15 edition)Download datasheet PDF

Main Characteristics

Interface Protocol: DALI (IEC62386)
Group Mode: 0-15
Power Supply: DALI Bus

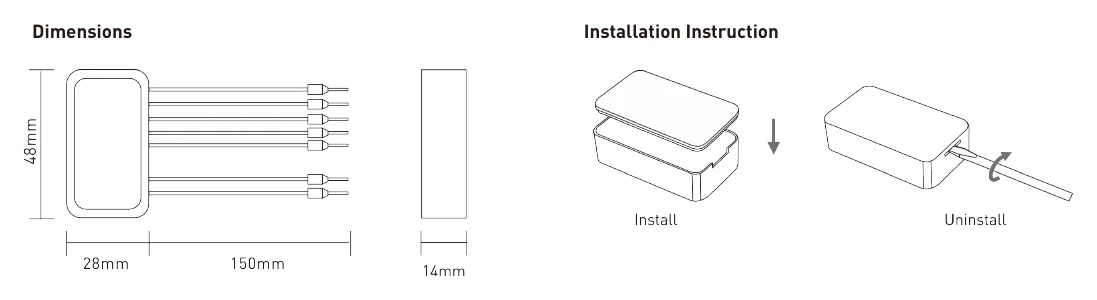

Dimensions: L48×W28×H14(mm)
Current: ≤8mA (static)
Package Size: L50×W40×H30(mm)
Working Temperature: -30℃~55℃
Weight(G.W.): 32g

Certifications & ratings

Certification marks: FCC, CE, RoHS, SGS

Technical drawings

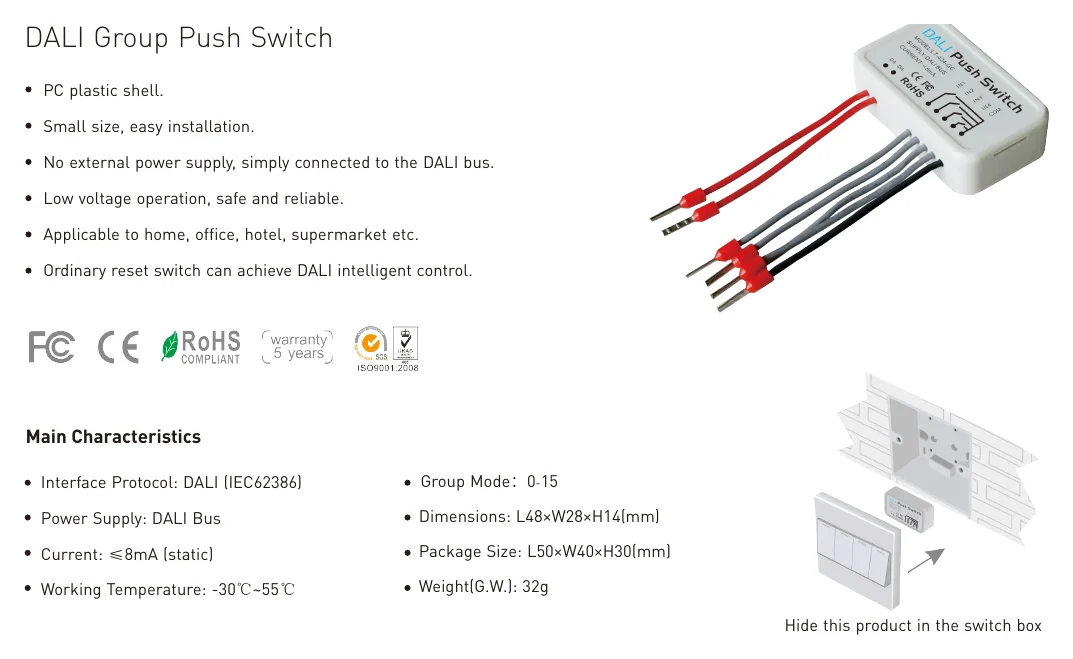

LT-424-GC DALI Group Push Switch — DALI Group Push Switch

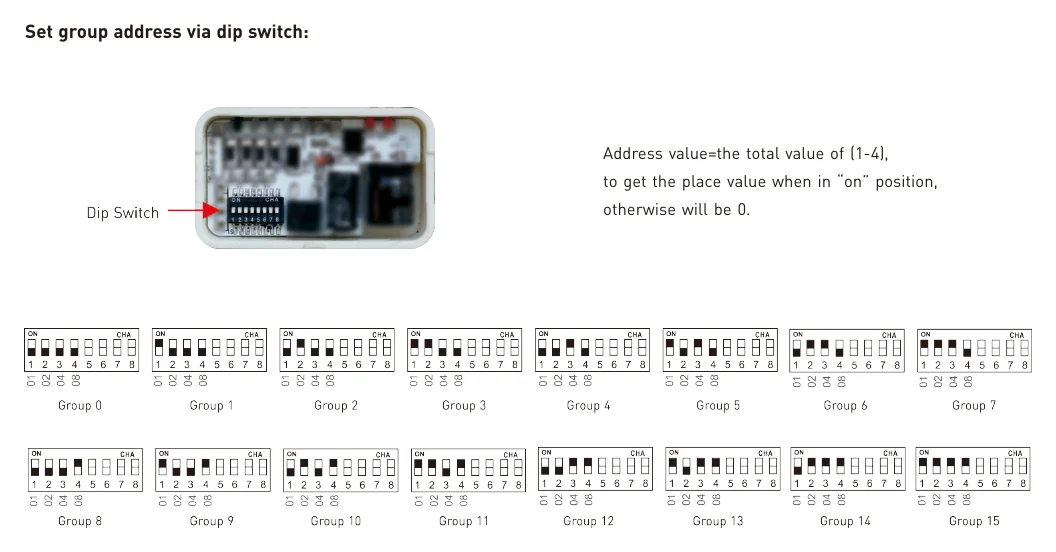

LT-424-GC Set group address via dip switch — Set group address via dip switch

Downloads

Datasheet1

LT-424-GC datasheet28225___LT_424_GC.pdf · 2015-06-15 edition PDF Download

FAQ

What is the Ltech LT-424-GC used for?

The LT-424-GC is a DALI group push switch intended for DALI lighting control applications. It is positioned as part of Ltech's LED control range for commercial and B2B use cases where DALI-based control is required.

Does the LT-424-GC support DALI control?

Yes. This model is specified with DALI dimming control, so it is intended for DALI-based lighting systems rather than non-DALI control methods. If your project standard is DALI, this is the relevant control type for this model.

What temperature range is the LT-424-GC rated for?

The LT-424-GC is rated for operation from -30 degrees C to 55 degrees C. That gives it a fairly broad working range for demanding commercial environments, provided the rest of the system is selected to the same standard.

How lightweight is the LT-424-GC?

The listed product weight is 32g. That makes the LT-424-GC a very lightweight control component within a lighting control setup.

How is the LT-424-GC different from a non-DALI lighting controller?

The main distinction is that the LT-424-GC is specifically identified as a DALI group push switch with DALI dimming control. Buyers standardizing on DALI infrastructure should focus on that compatibility when comparing it with controllers built around other control protocols.
