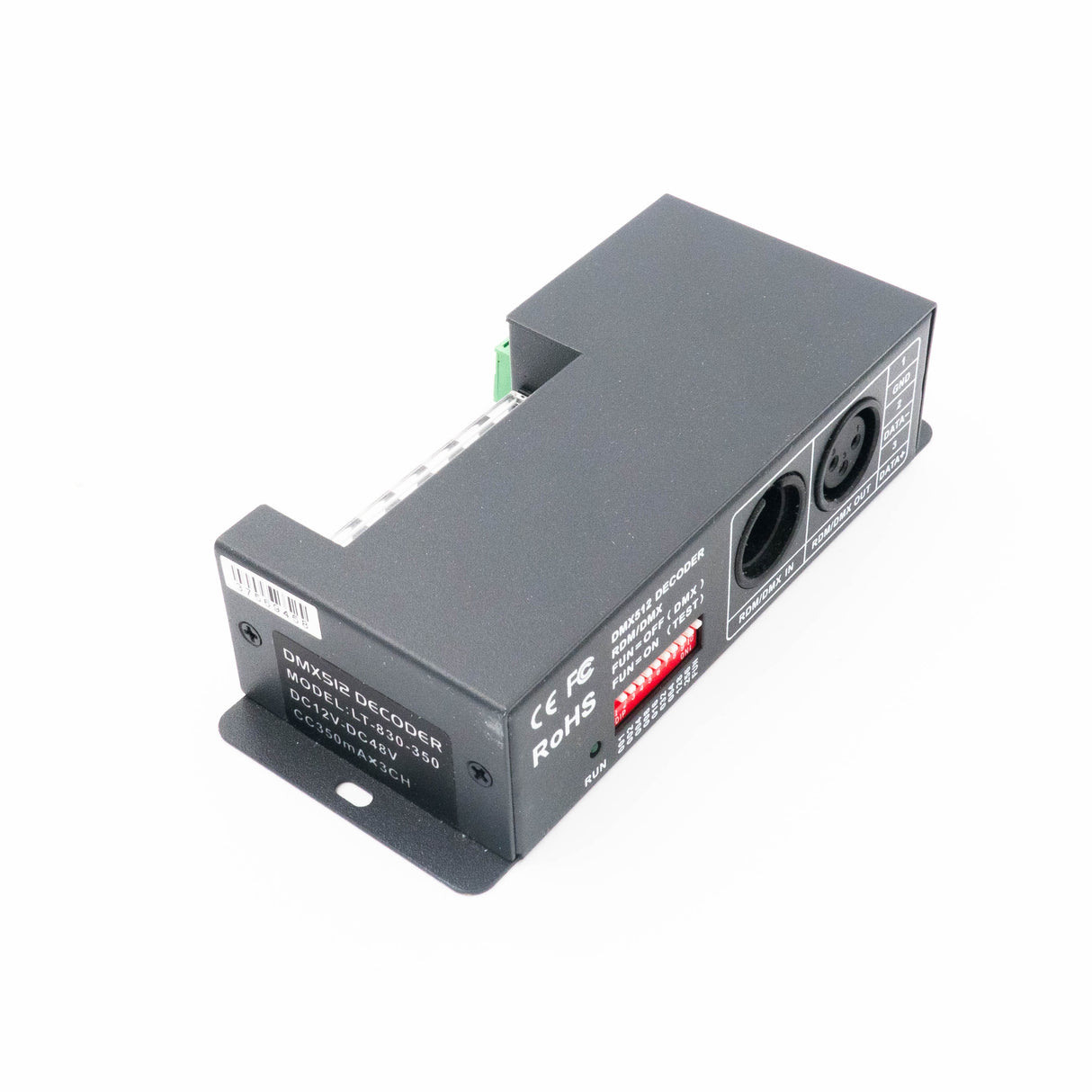

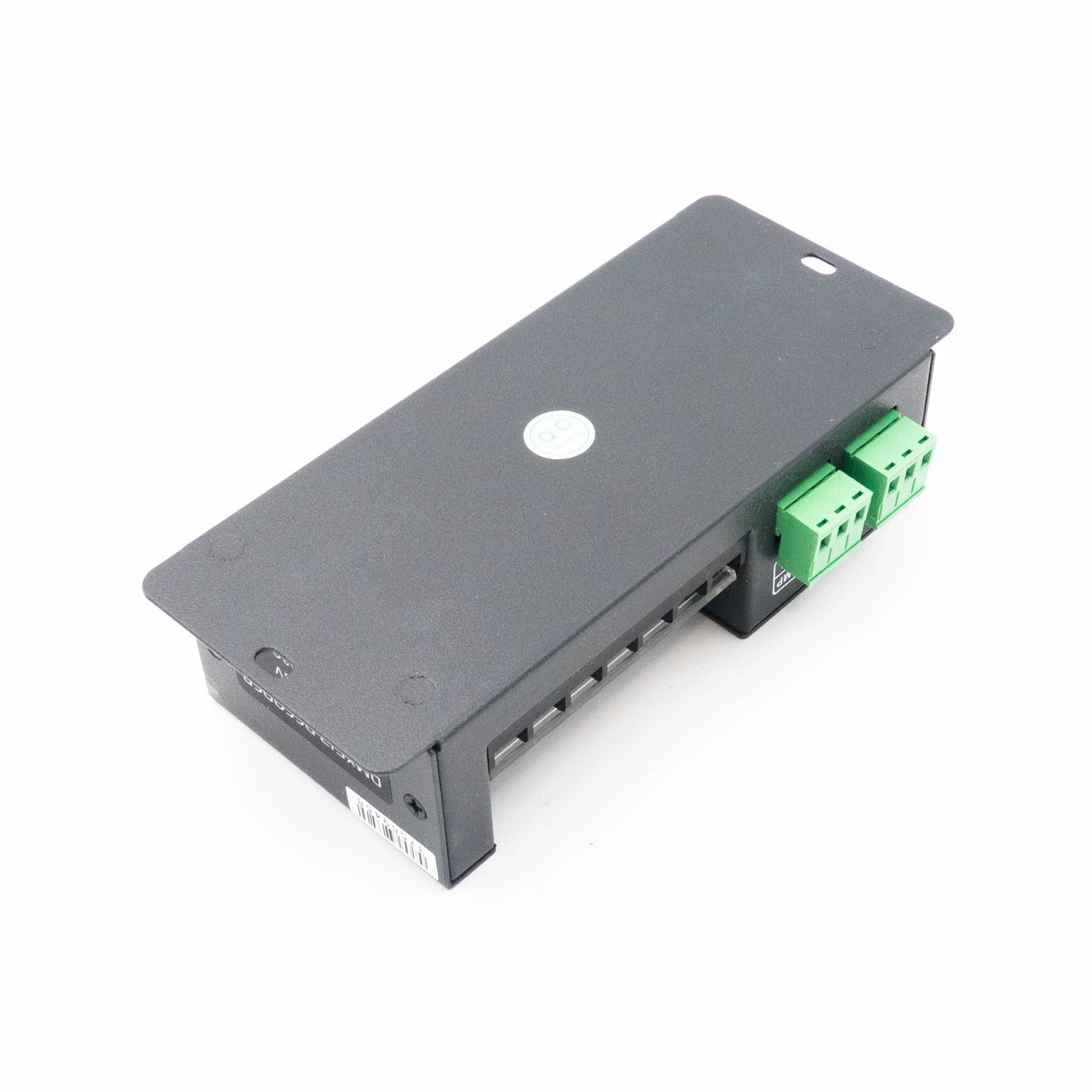

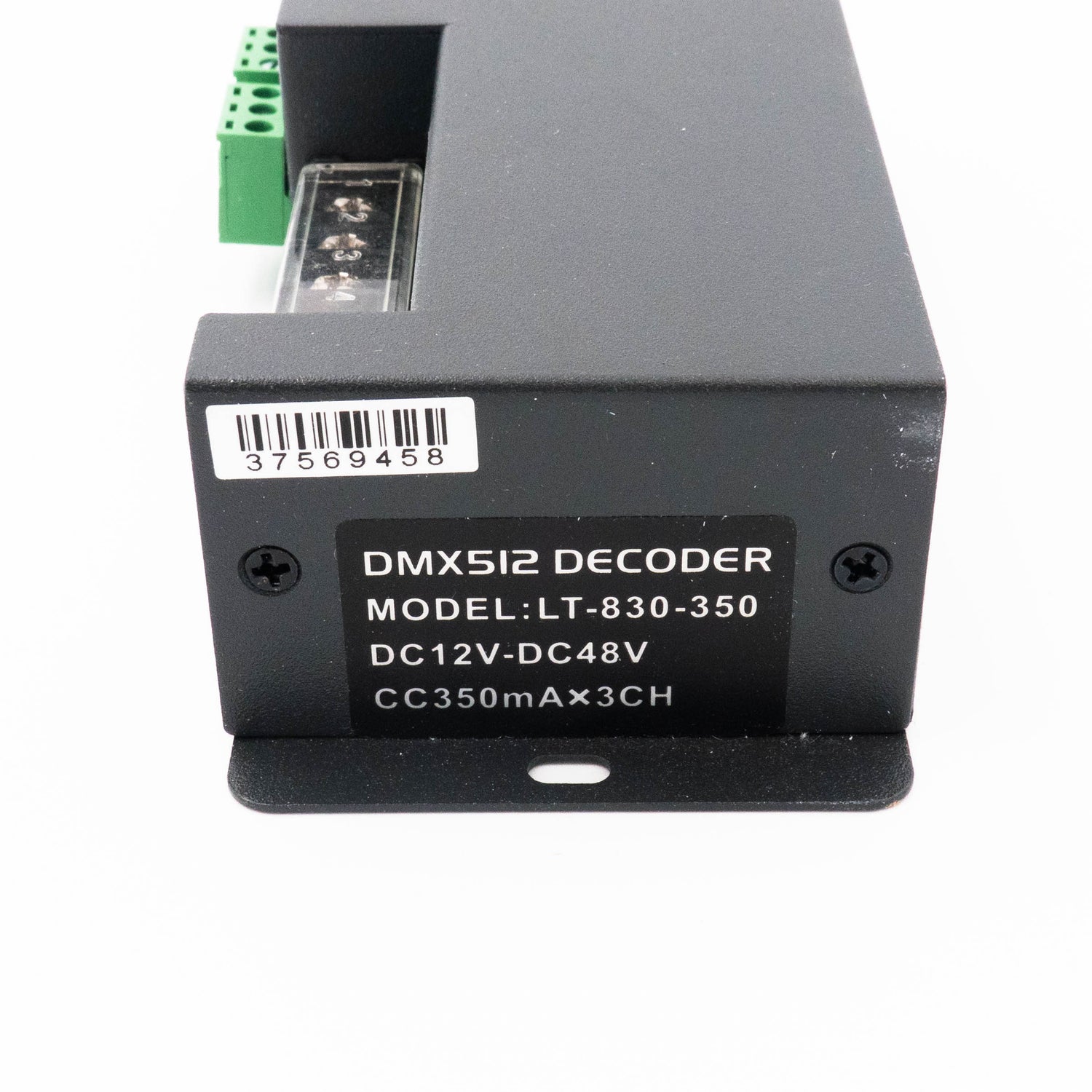

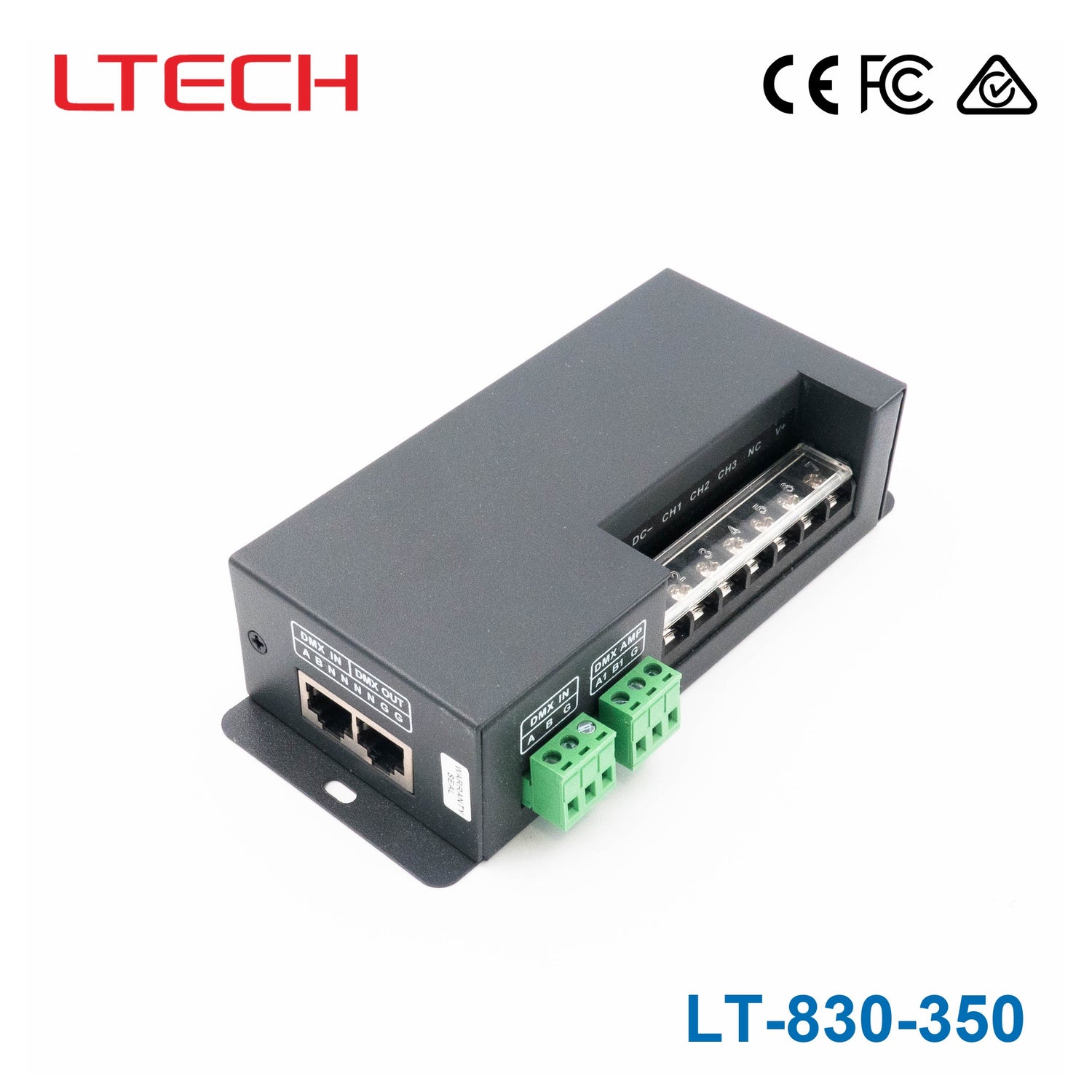

Ltech LT-830-350 DMX/RDM 3CH CC DECODER

SKU LT-830-350
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
End of Life, Succeeded by LT-880-350
In stock
|

Overview

LT-830-350 is the 3-46Vdc output model of this series.

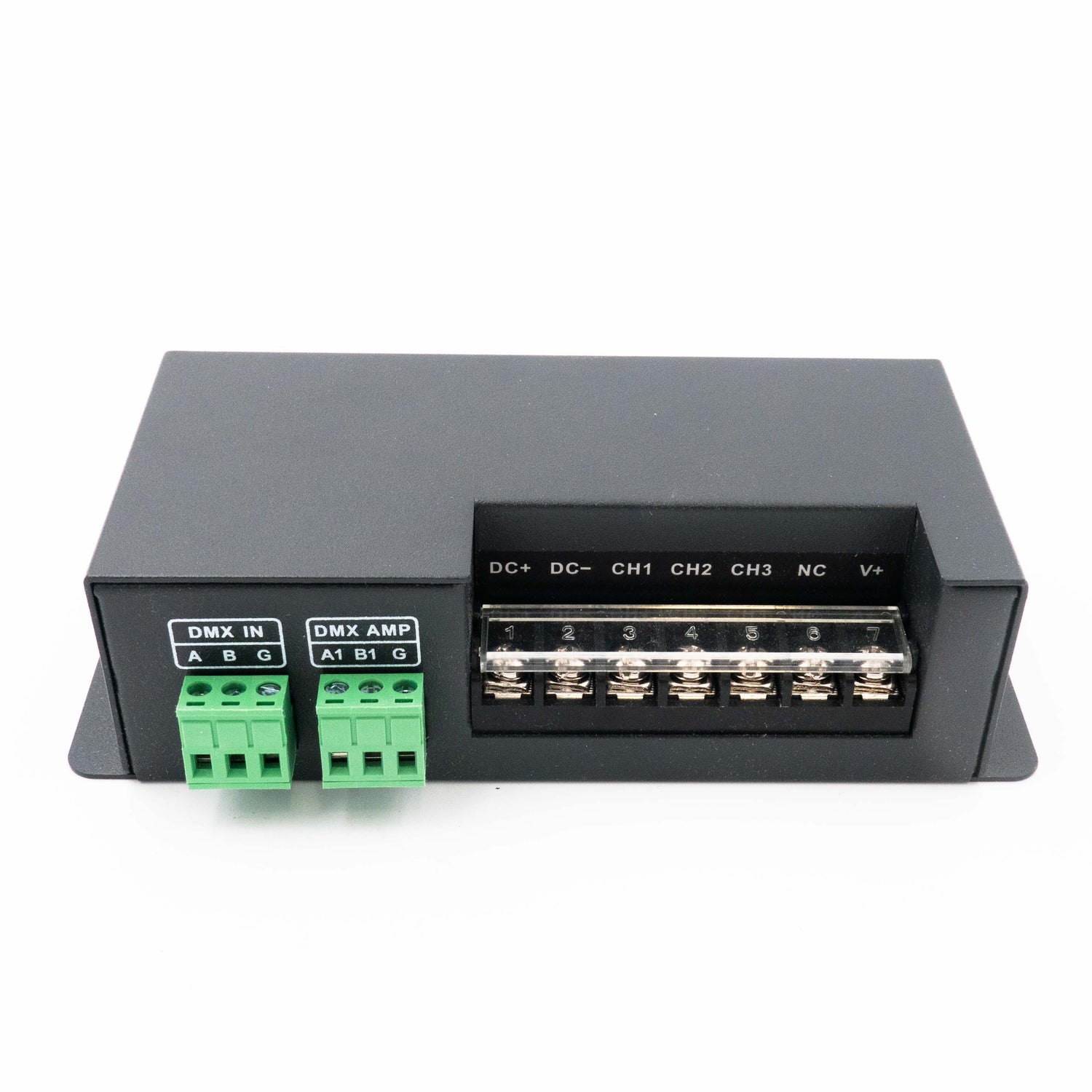

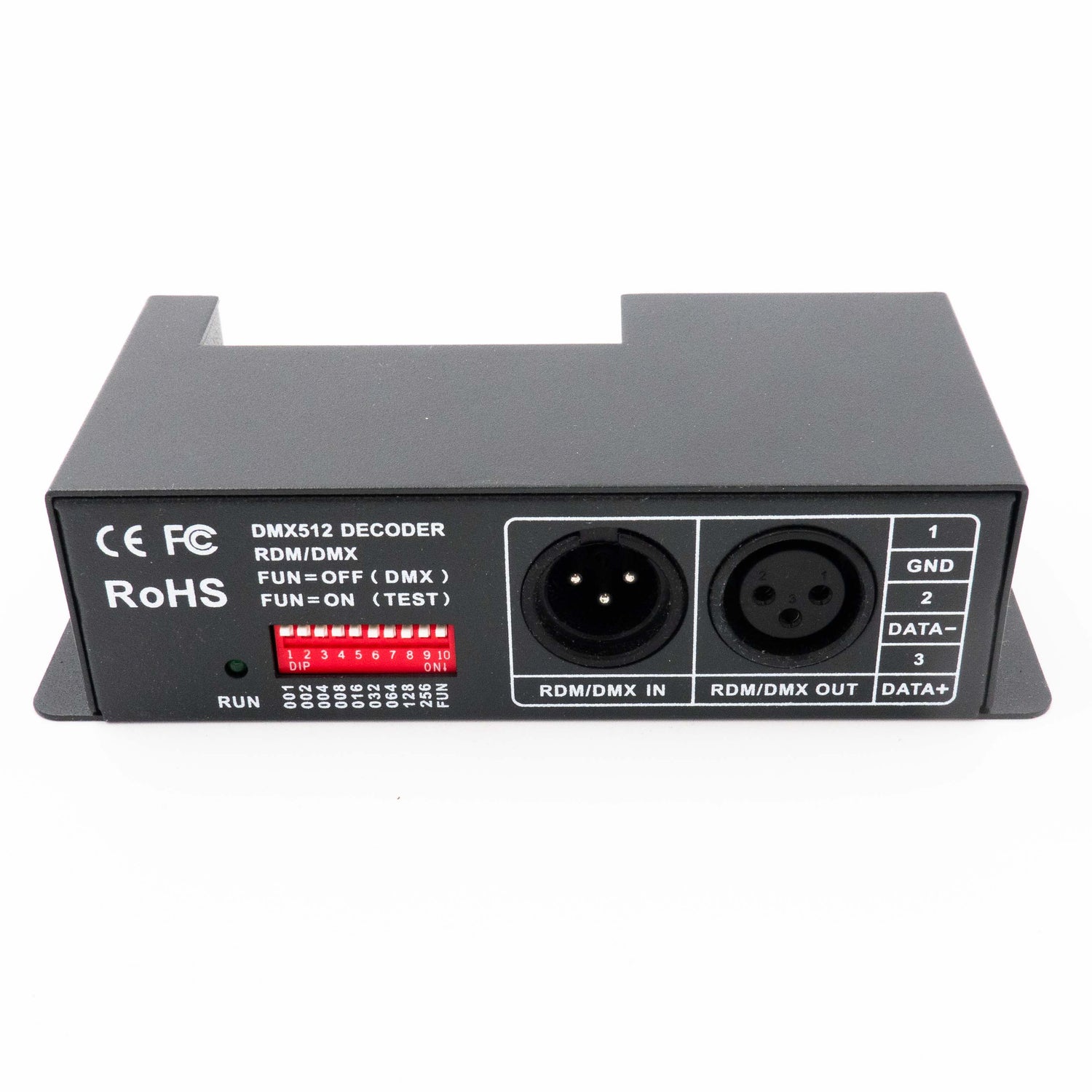

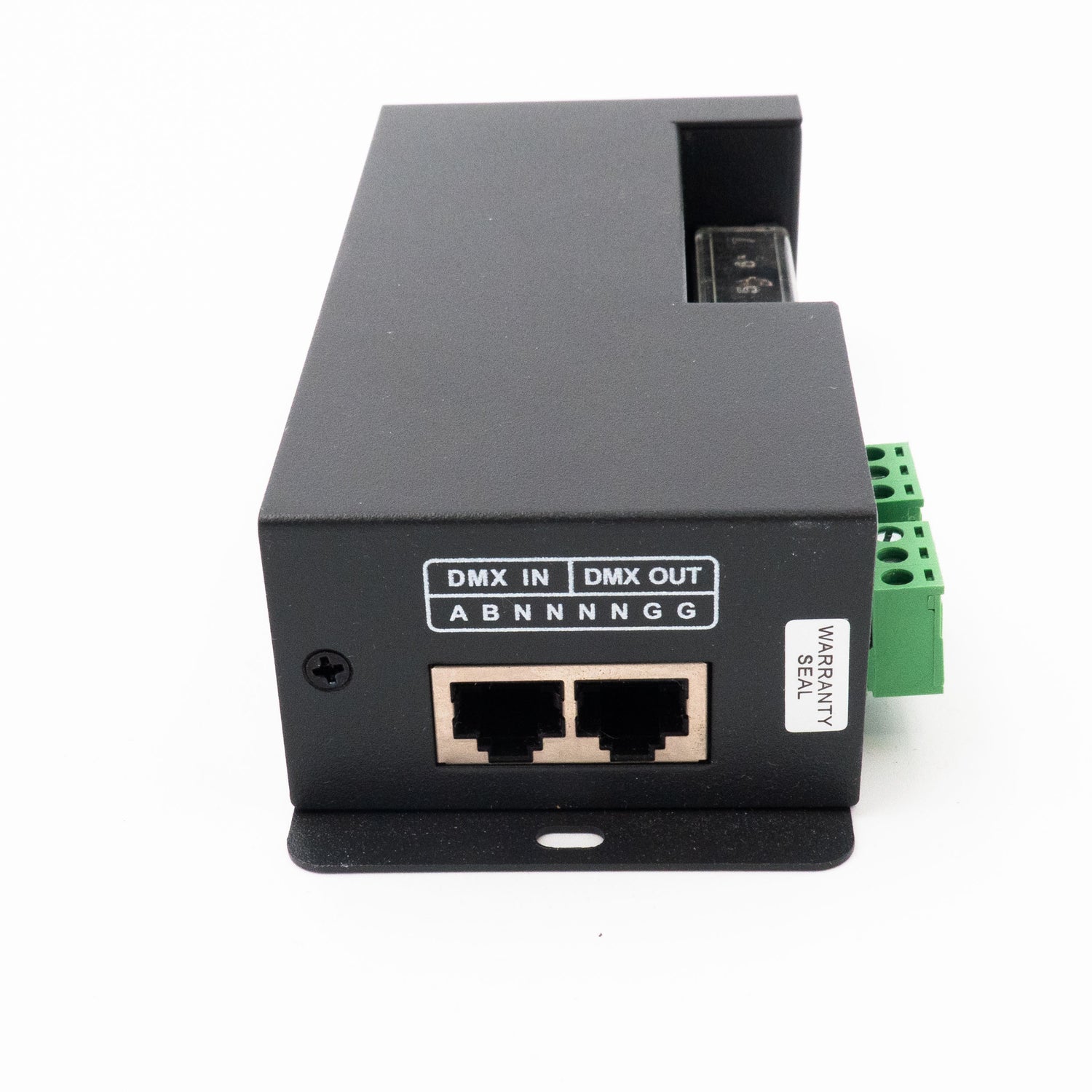

LT-830-350 with the standard RDM remote device management protocol, supports DMX512 signal bi-directional communication, achieves remote management of reading and writing DMX address (DMX master controller must recognize the RDM protocol). Equipped with DMX standard 3-pin XLR, RJ45, green terminal interface. Realize 0-100% dimming or different lighting effect; workable with single color, dual color or RGB LED lamps.

Specifications

LT-830-350Specifications from the official datasheet (2018-06-26 edition)Download datasheet PDF

Product Parameter

Input Signal
DMX512, RDM
Input Voltage
12~48Vdc
Output Voltage
3-46Vdc
Current Load
CC 350mA×3CH
Output Power
(1.05W~16.1W)×3CH Max. 48.3W
DMX512 Socket
3-pin XLR, RJ45, Green Terminal
Dimming Range
0~100%
Protection
Short circuit / Over current
Working Temperature
-30℃~65℃
Dimensions
L156×W78×H40(mm)
Package Size
L180×W82×H48(mm)
Weight (G.W.)
435g

Certifications & ratings

warranty
5 years
Certification marks
FCC, CE, RoHS, ISO9001:2008

Downloads

FAQ

What is the Ltech LT-830-350 used for?

The LT-830-350 is a 3-channel constant-current DMX/RDM decoder for LED lighting control. It is intended for single-color, dual-color, or RGB LED lamp applications where DMX-based dimming or lighting effects are required.

What output rating does the LT-830-350 provide?

This model is rated for 350 mA constant current output per channel and up to 46 V output voltage. Its listed maximum power rating is 48.3 W, which makes it suitable for low-power constant-current LED control applications within those published limits.

Does the LT-830-350 support RDM as well as DMX512?

Yes. The product description states that it supports the standard RDM remote device management protocol along with DMX512 bi-directional communication. That allows remote reading and writing of the DMX address when the master controller recognizes RDM.

Can the LT-830-350 be used for dimming and lighting effects?

Yes. The LT-830-350 is described as supporting 0-100% dimming as well as different lighting effects. That makes it relevant for projects that need more than basic on/off LED control.

What types of LED fixtures is the LT-830-350 compatible with?

According to the product description, it is workable with single-color, dual-color, and RGB LED lamps. That gives it broader application flexibility than a decoder limited to only one fixture color format.

Is the LT-830-350 suitable for demanding temperature conditions?

This model has a stated operating temperature range of -30 C to 65 C. Buyers needing a decoder for cold or warm commercial environments should compare those limits against the actual ambient conditions of the project site.

What warranty comes with the Ltech LT-830-350?

The listed warranty period for the LT-830-350 is 5 years. That is a useful differentiator for buyers comparing commercial LED control components for longer-term projects.
