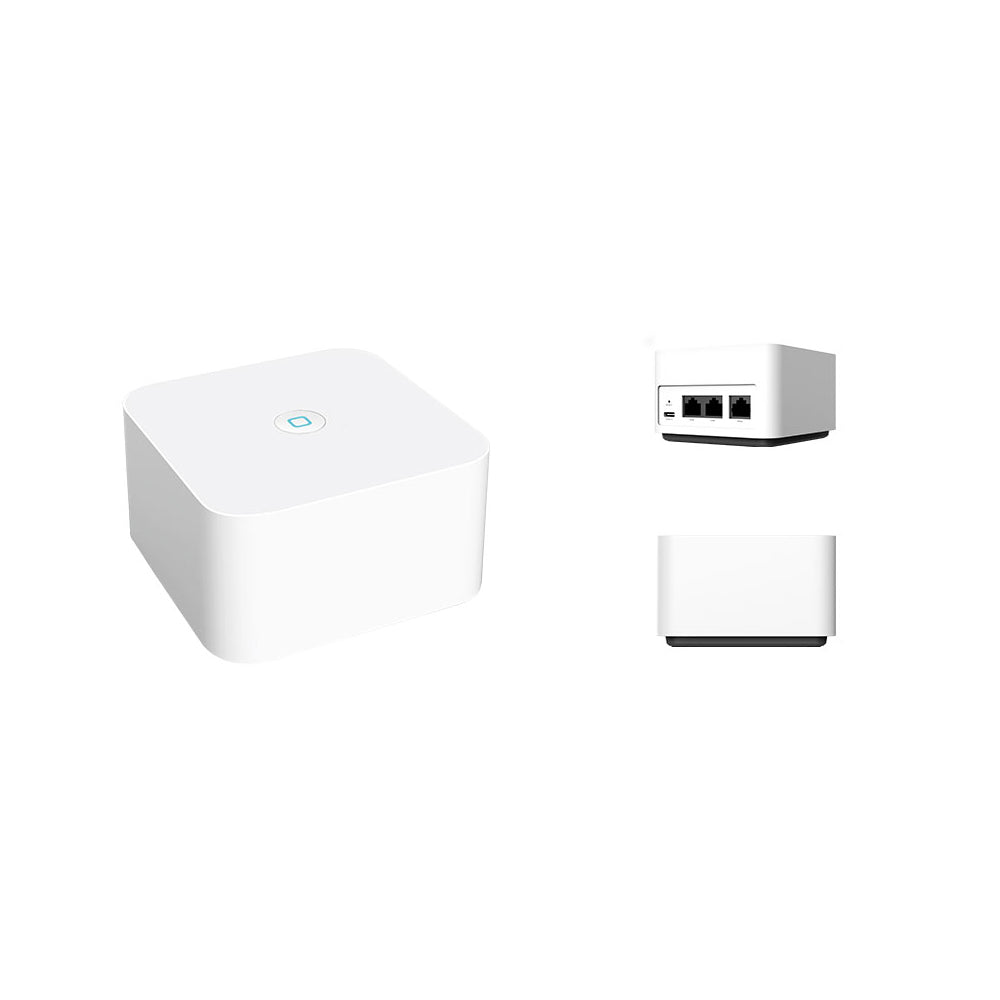

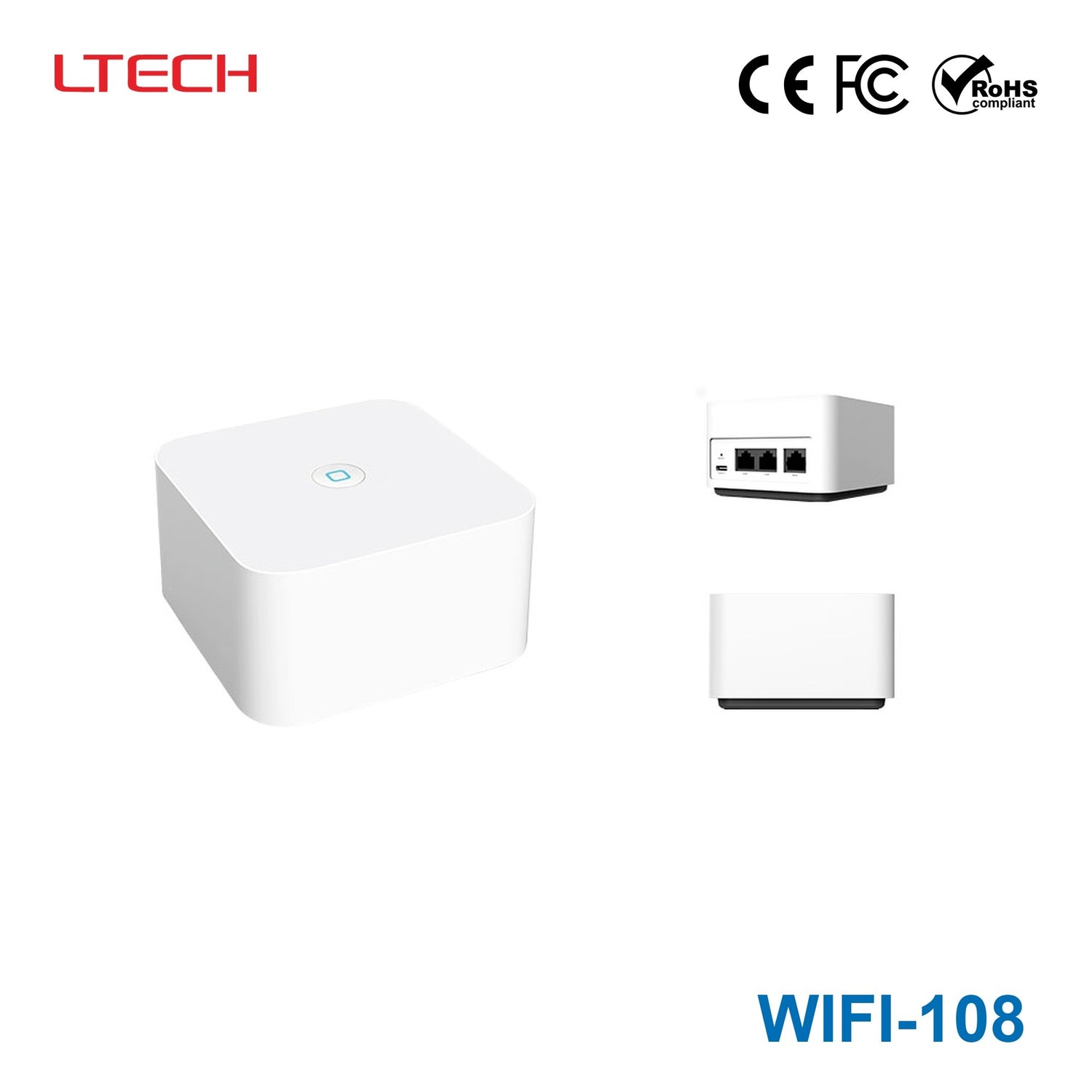

Ltech WIFI-108 Intelligent Gateway, 5V USB Input
Please Login for Pricing
Description
Description
Features:
- Realize global long-range control by cloud platform.
- 2 in 1 control: Wireless RF and wired connection.
- Multi-zones dimming, color changing and multi-groups control.
- One click scene function, timing function.
- Advanced lighting program setting, sunrise or sunset effect or any other changing effect could be simulated.
- Support mobile phone, remote control and dimming panel to control all lighting effects
- Voice control, support amazon ECHO and TmallGenie smart speaker.
- Opened third party communication interface: Trigger contacts.
General Specification
Model
WiFi-108
Communication Standard:
2.4GHz Wi-Fi, 2.4GHz RF, 802.11b/g/n protocol.
Input Voltage:
5Vdc
Extension Interface:
Trigger contact, RS485, L-BUS protocol interface
Power Interface:
Type-C USB
Working Temp.:
-30°C~60°C
Dimensions:
L90×W90×H55mm
Packing Size:
L122×W122×H79mm
Weight(G.W.):
380g
Specifications
Specifications
-
BrandLtech
-
SeriesLtech WIFI Series
-
Output Voltage5 Volt
-
Standards MetCE,FC,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~60°C
-
Warranty5 Year
-
Length9 cm
-
Width9 cm
-
Height5.5 cm
-
Weight0.38 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Ltech WiFi-108 used for?
The Ltech WiFi-108 is an intelligent gateway module for LBUS LED control systems. It supports cloud-based long-range control and is intended for managing dimming, color changing, scenes, timing, and grouped lighting functions.
Does the WiFi-108 support both wireless and wired control methods?
Yes. The WiFi-108 is described as a 2-in-1 controller supporting wireless RF control and wired connection within an LBUS lighting control setup. This makes it suitable for projects that need flexible control options.
Can the WiFi-108 control multiple lighting zones?
Yes. This model supports multi-zone dimming, color changing, and multi-group control. That makes it useful for commercial or architectural LED lighting projects where different areas need separate control behavior.
Does this gateway support smart speaker voice control?
Yes. The WiFi-108 supports voice control with Amazon Echo and TmallGenie smart speakers according to the product description. It can also be controlled through a mobile phone, remote control, or dimming panel.
What lighting effects can the WiFi-108 help manage?
The WiFi-108 supports scene functions, timing functions, and advanced lighting program settings. The description specifically notes that sunrise, sunset, and other changing effects can be simulated.
What operating temperature range is specified for the WiFi-108?
The specified operating temperature range is -30 °C to 60 °C. This range helps buyers evaluate whether the gateway is appropriate for the environmental conditions of a planned LED control project.
What are the key listed specifications for the WiFi-108?
The WiFi-108 is listed with a 5 V output voltage, dimmable control, a 5-year warranty period, and a weight of 0.38 kg. It is part of the PSU LED controller family and is categorized for LED control and smart LBUS control applications.
