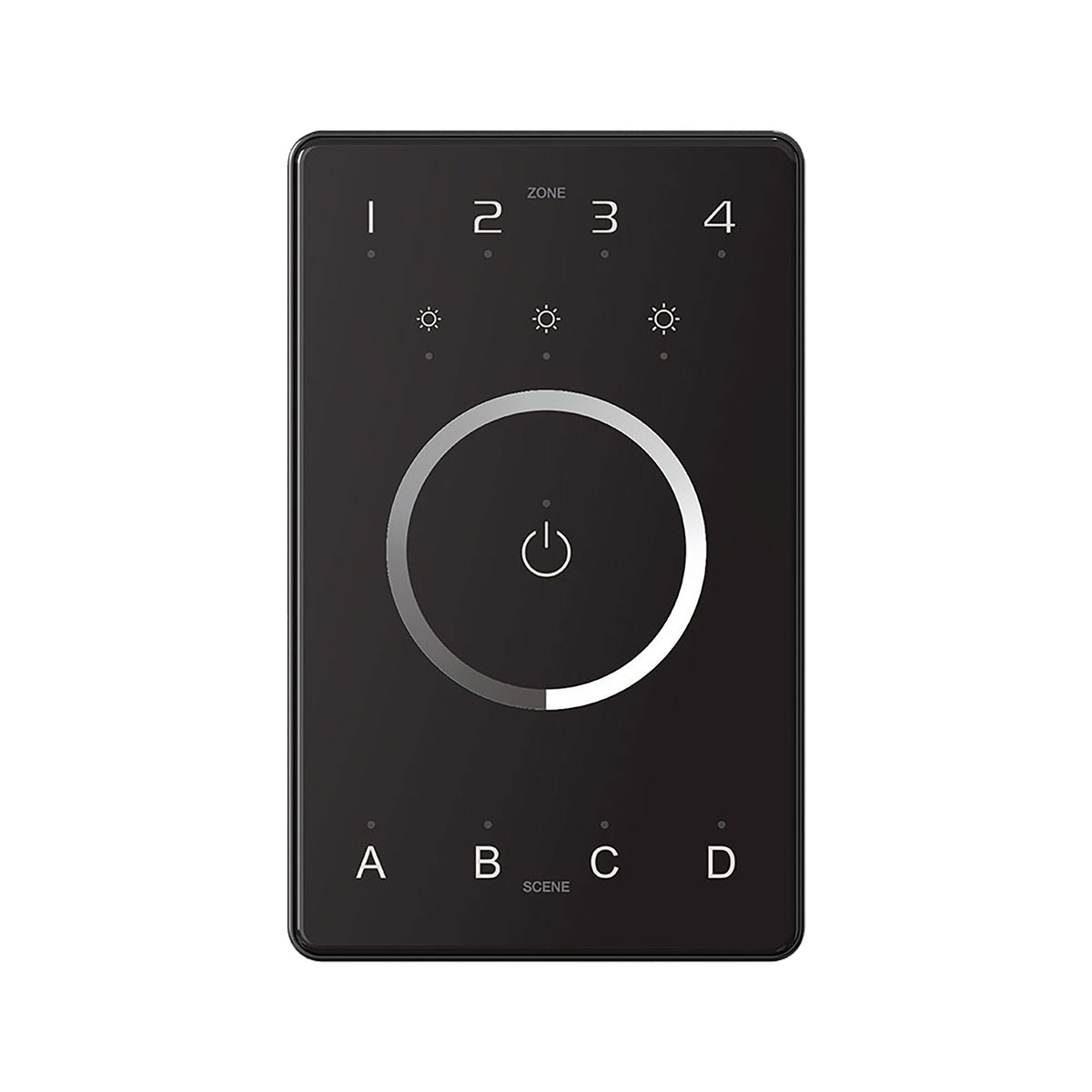

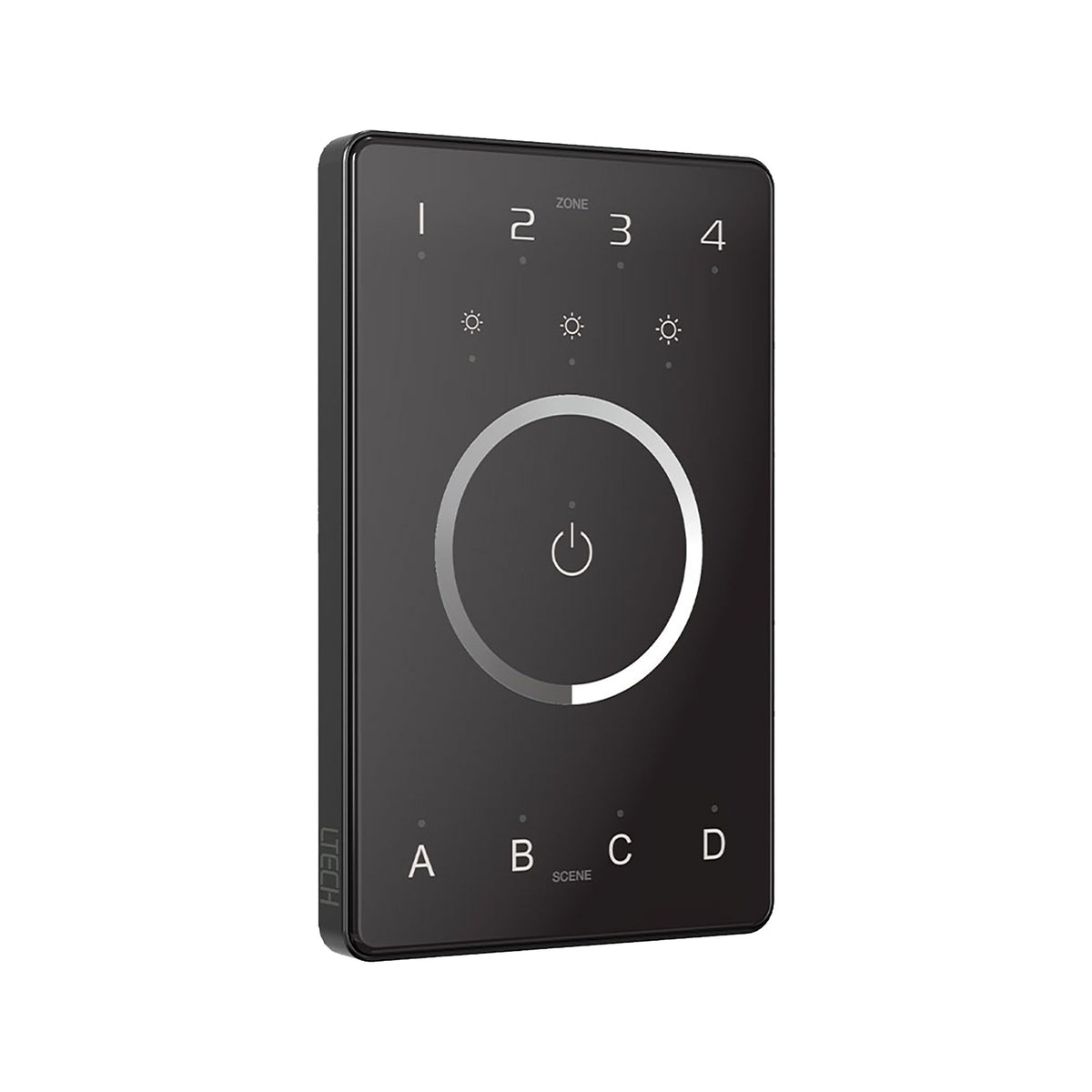

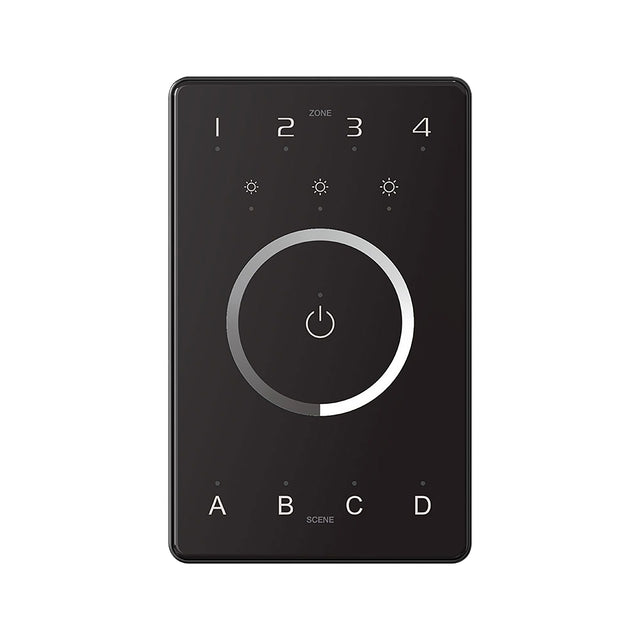

Ltech Intelligent Touch Panel UB1(Bluetooth + DMX)

single colour12-24V4 zones4 scenes

SKU UB1

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

General Description
The UB1 is a premium intelligent touch panel that integrates Bluetooth 5.0 SIG Mesh wireless technology with DMX 512 output for advanced multi-scene and multi-zone lighting control. Designed with an elegant CNC aviation aluminum frame and 2.5D tempered glass surface, the UB1 offers a sleek, durable, and intuitive interface for both residential and commercial applications. Supporting up to four lighting zones, it enables on/off switching, brightness control, and scene execution with precision. Compatible with a wide range of dimming and colour configurations via DMX, the UB1 is ideal for standalone control or as part of a larger Casambi-enabled ecosystem.

Key Features

Bluetooth 5.0 SIG Mesh and DMX 512 output for versatile control

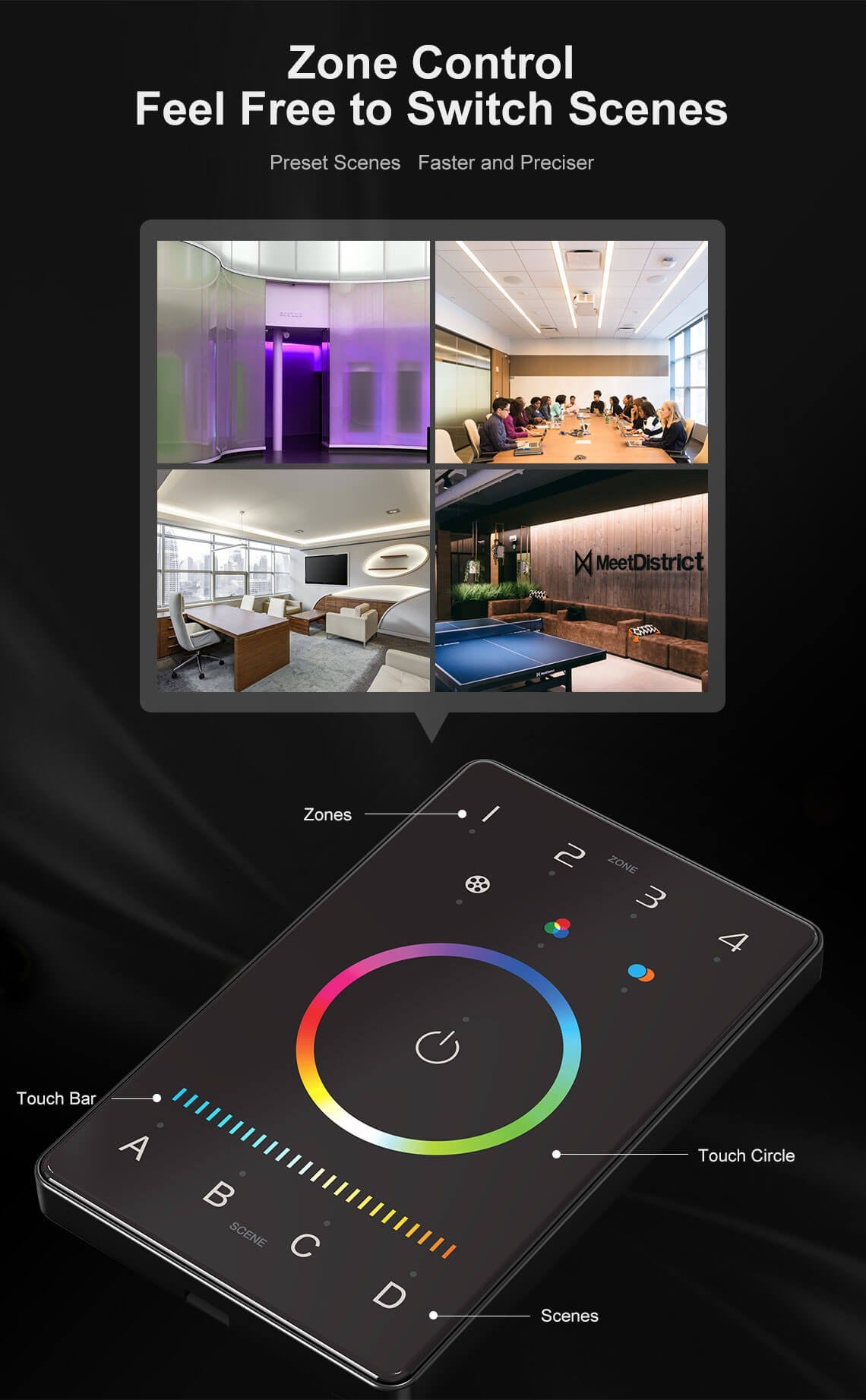

Supports up to 4 independent lighting zones

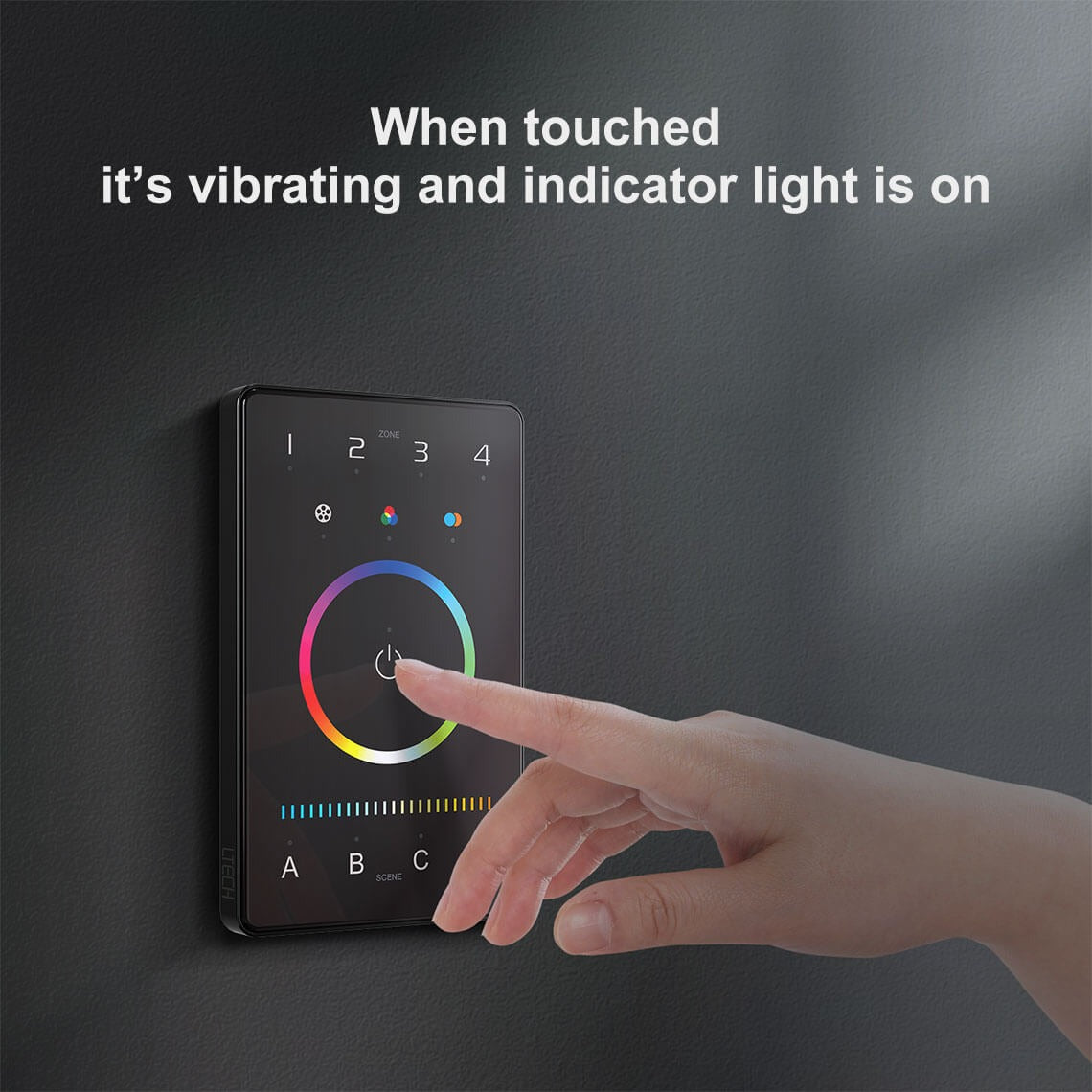

Short and long press zone keys for ON/OFF and selection functions
Integrated touch colour circle for dimming (DIM model)
4 programmable scene keys for quick lighting changes

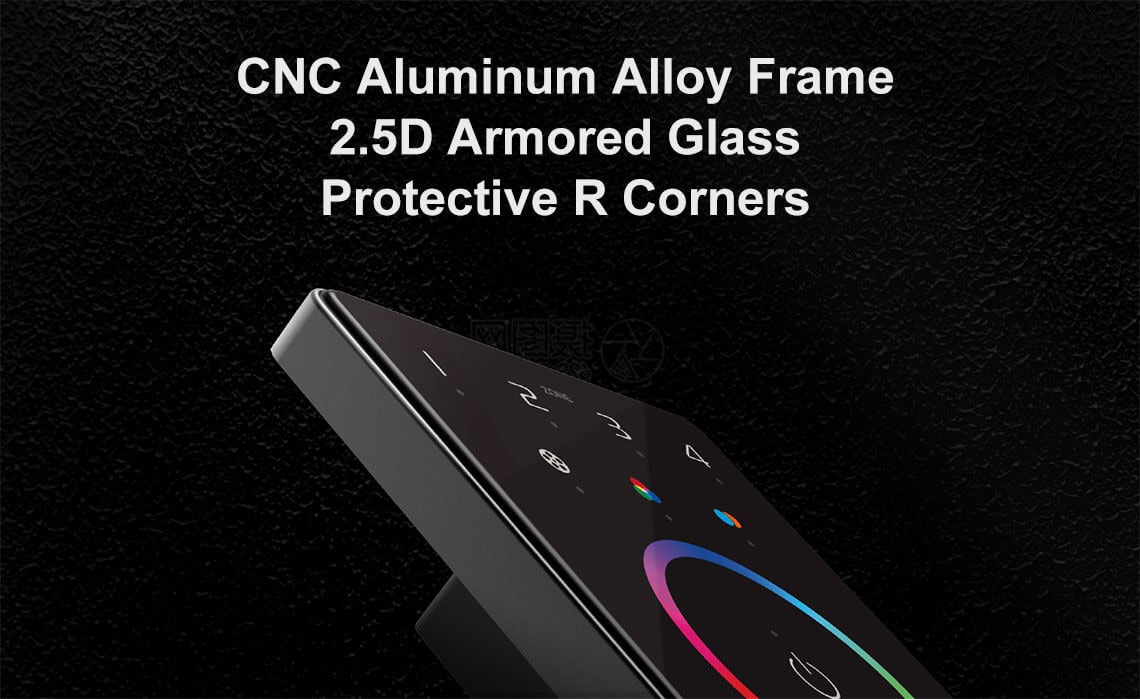

High-quality CNC aluminum frame with 2.5D tempered glass
Powered by 12–24VDC (Class 2)

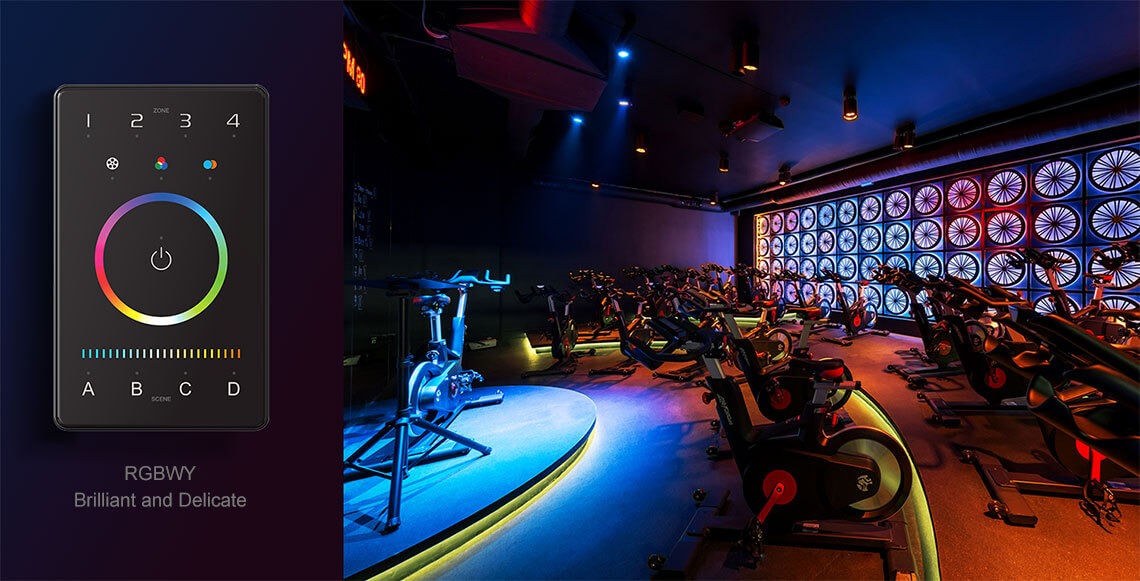

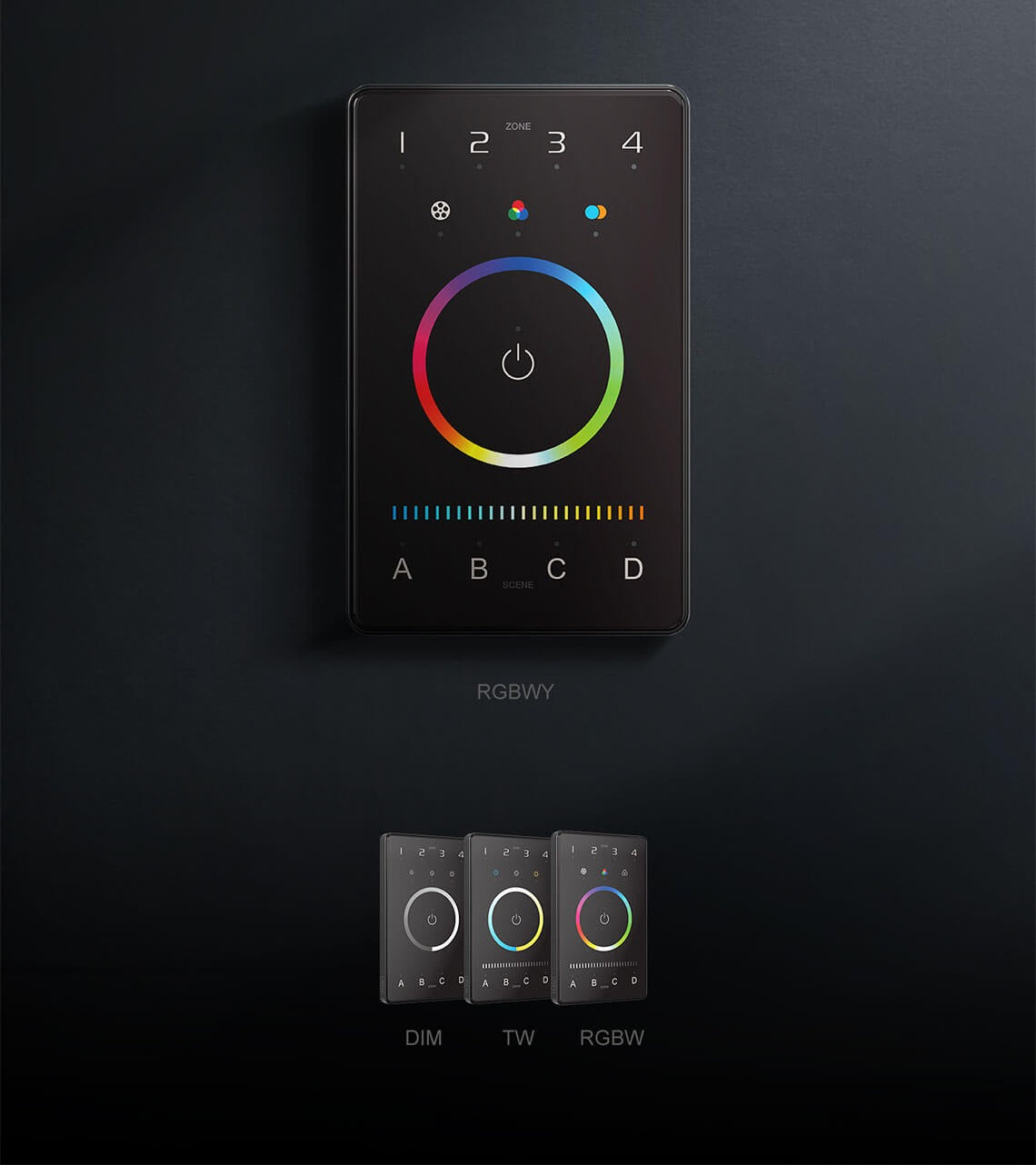

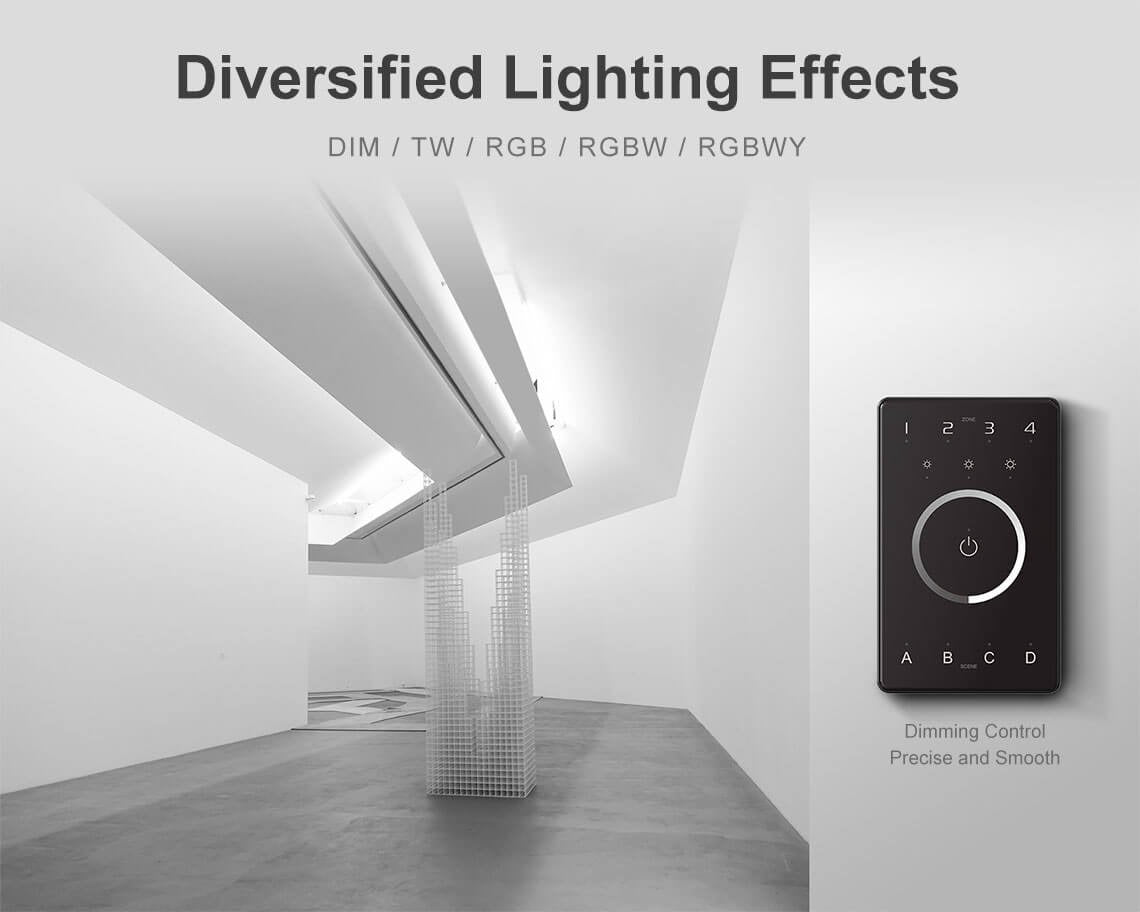

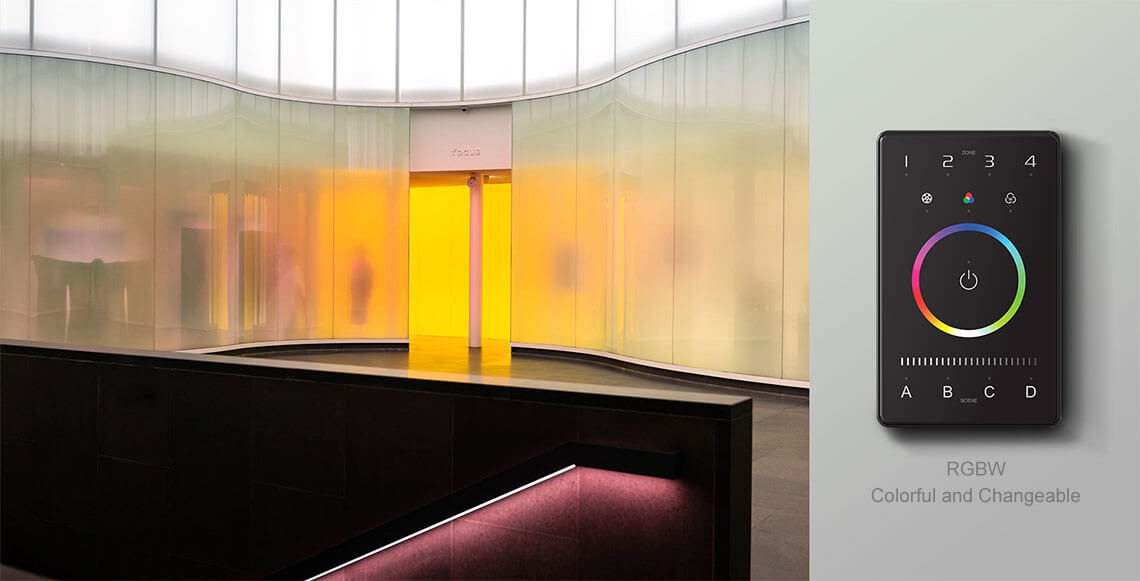

Multi-mode compatibility: DIM, CT, RGBW, RGBWY via DMX drivers
Ideal for standalone or integrated lighting control systems
Dimensions: 120×75×30 mm, weight: 225 g
Operating temperature: -20°C to 55°C
Supports both wireless-only and wireless + wired control configurations

Frequently Asked Questions

What is the Ltech Intelligent Touch Panel UB1(Bluetooth + DMX) used for?

The UB1 is designed for advanced lighting control in residential and commercial spaces. It combines Bluetooth 5.0 SIG Mesh wireless control with DMX 512 output, making it suitable for managing multi-scene and multi-zone lighting systems from a premium wall-mounted touch interface.

What control options does the UB1 support?

This model supports Bluetooth and DMX-based dimming control. That combination allows it to work in lighting environments where wireless control flexibility and DMX system integration are both important.

How many lighting zones can the UB1 manage?

The UB1 supports control of up to four lighting zones. It is intended for applications where users want separate control over multiple lighting areas while also accessing functions such as on/off switching, brightness adjustment, and scene selection.

What makes the UB1 different from a basic touch panel controller?

The UB1 is positioned as a premium intelligent touch panel rather than a basic controller. It stands out with Bluetooth 5.0 SIG Mesh integration, DMX 512 output, support for multi-scene and multi-zone control, and a higher-end build that includes a CNC aviation aluminum frame and 2.5D tempered glass surface.

Is the UB1 suitable for demanding indoor environments?

The UB1 is rated for operating temperatures from -20°C to 55°C, which supports use in a wide range of indoor project conditions. Its CNC aviation aluminum frame and tempered glass surface also help provide a durable and refined finish for professional spaces.

What kind of lighting systems is the UB1 compatible with?

The UB1 is built for lighting control systems that use Bluetooth and DMX-based control methods. It is especially relevant for projects that need a standalone intelligent touch panel for LED control, dimming, remote control, and broader lighting system applications.
